Partiron

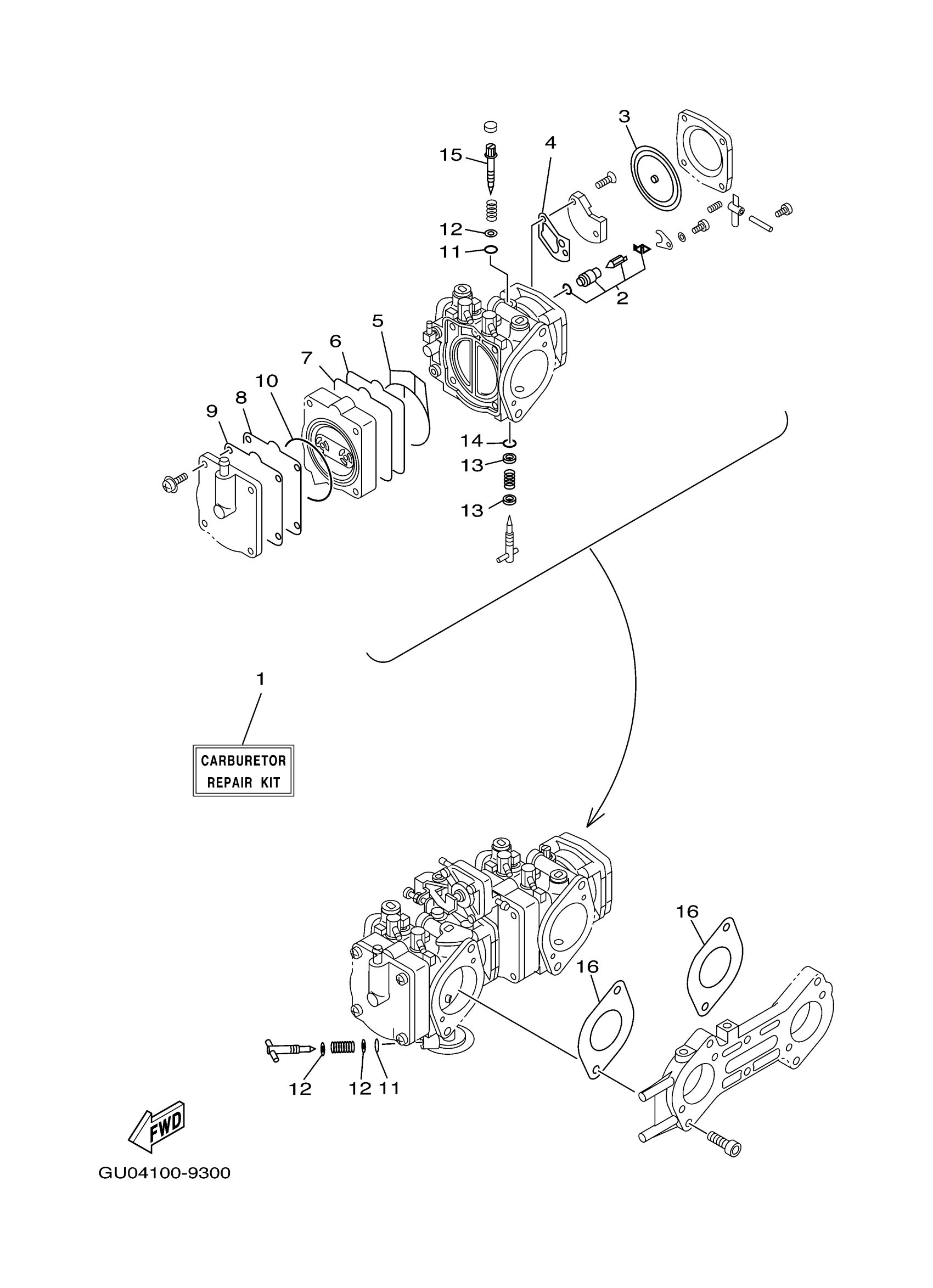

Yamaha XA800AA (XLT800) F1F1 2002 REPAIR KIT 2 Diagram

#

Description
Price

1

CARBURETOR REPAIR KIT

66E-W0093-01-00

Unavailable

2

NEEDLE

64T-14916-01-00

$49.49

3

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

4

. GASKET

6K8-14536-11-00

$8.14

5

. O-RING

66E-14563-01-00

$66.65

6

. DIAPHRAGM

66E-24471-00-00

$32.99

7

. DIAPHRAGM

66E-24411-00-00

$39.38

8

. VALVE, CHECK

66E-24421-00-00

$27.58

9

. GASKET, FUEL PUMP 1

66E-24431-00-00

$16.99

10

. O-RING

66E-14564-01-00

$38.99

11

. O-RING

6K8-14562-00-00

$1.88

12

WASHER,NEEDLE

812-14235-00-00

$2.44

13

WASHER, NEEDLE

822-14235-00-00

$3.63

14

O-RING

583-14561-00-00

$4.44

15

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

16

. GASKET

66E-14398-00-00

$31.57
