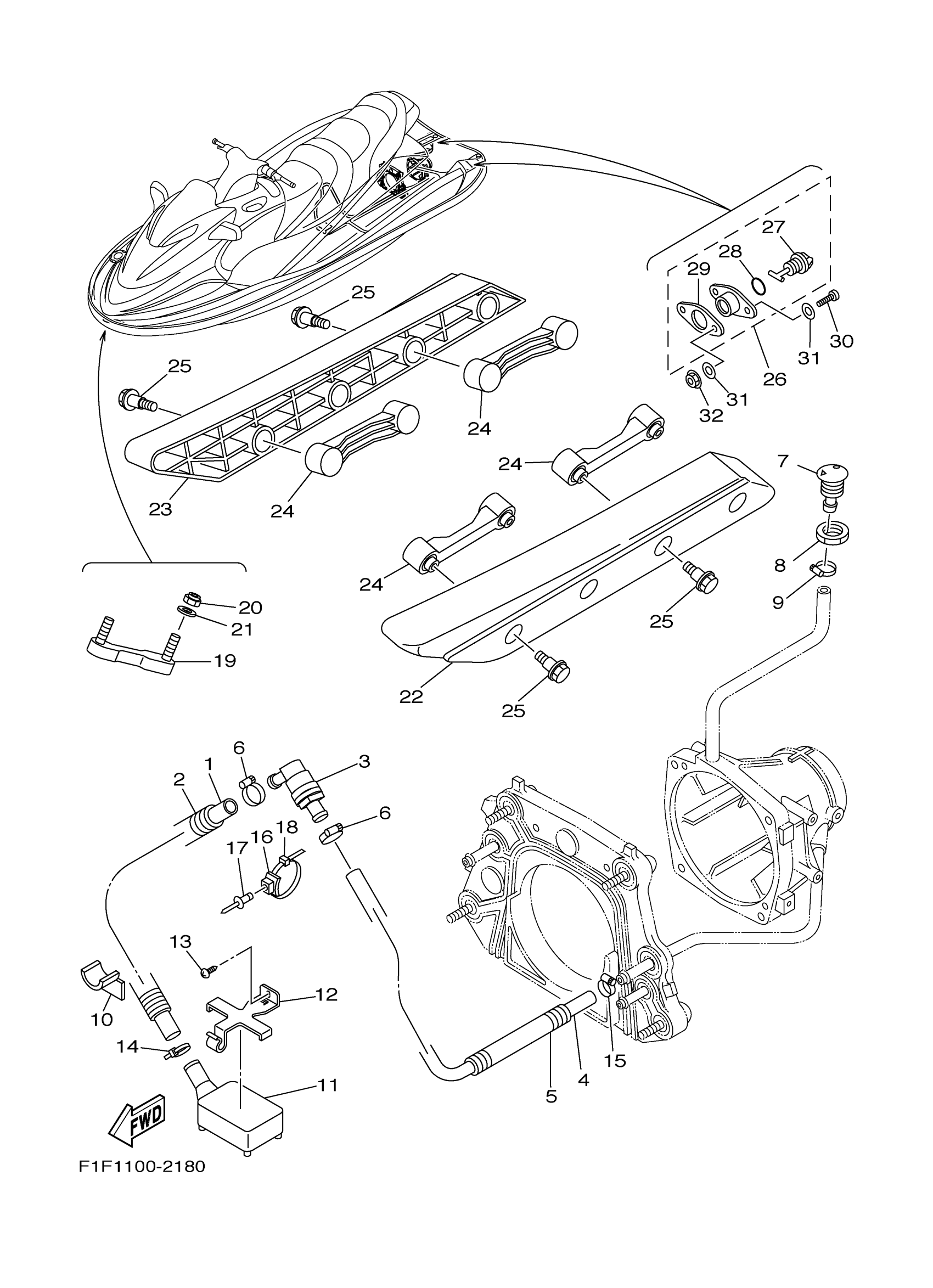

Yamaha XA800AA (XLT800) F1F1 2002 HULL DECK Diagram
#
1
HOSE (L1000)
90445-198C0-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
HOSE (L650)
90445-198B9-00
Unavailable
5
HOSE(63M)
90446-27M55-00
$16.99
6
BAND, HOSE 18
90601-118UF-00
Unavailable
7
SPOUT
FN8-6269B-00-00
Unavailable
8
NUT
EU0-61652-00-00
Unavailable
9
BAND, HOSE 18
90601-118UF-00
Unavailable
10
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
11
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
12
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
13
SCREW, TAPPING
9778R-50112-00
Unavailable
14
CLAMP
90465-10098-00
Unavailable
15
BAND, HOSE 18
90601-118UF-00
Unavailable
16
CLAMP COMP (EU0)
90600-91736-00
Unavailable
17
RIVET, BLIND
90267-48802-00
Unavailable
18
CLAMP
90464-32801-00
Unavailable
19
BOWEYE 1
F0D-61624-01-00
Unavailable
20
NUT, NYLON (6J8)
95780-08300-00
Unavailable
21
WASHER
9299R-08200-00
Unavailable
22
STABILIZER LH
F0D-U883N-20-00
Unavailable
23
STABILIZER RH
F0D-U883P-20-00
Unavailable
24
BRACKET,STABILIZER
F1F-U883T-02-00
Unavailable
25
BOLT
F0V-U2624-10-00
Unavailable
26
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
27
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
28
. O-RING
EU0-62283-00-00
Unavailable
29
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
30
SCREW, PAN HEAD
9788R-05025-00
Unavailable
31
WASHER
9299R-05200-00
Unavailable
32
NUT, FLANGE
9572R-05300-00
Unavailable
