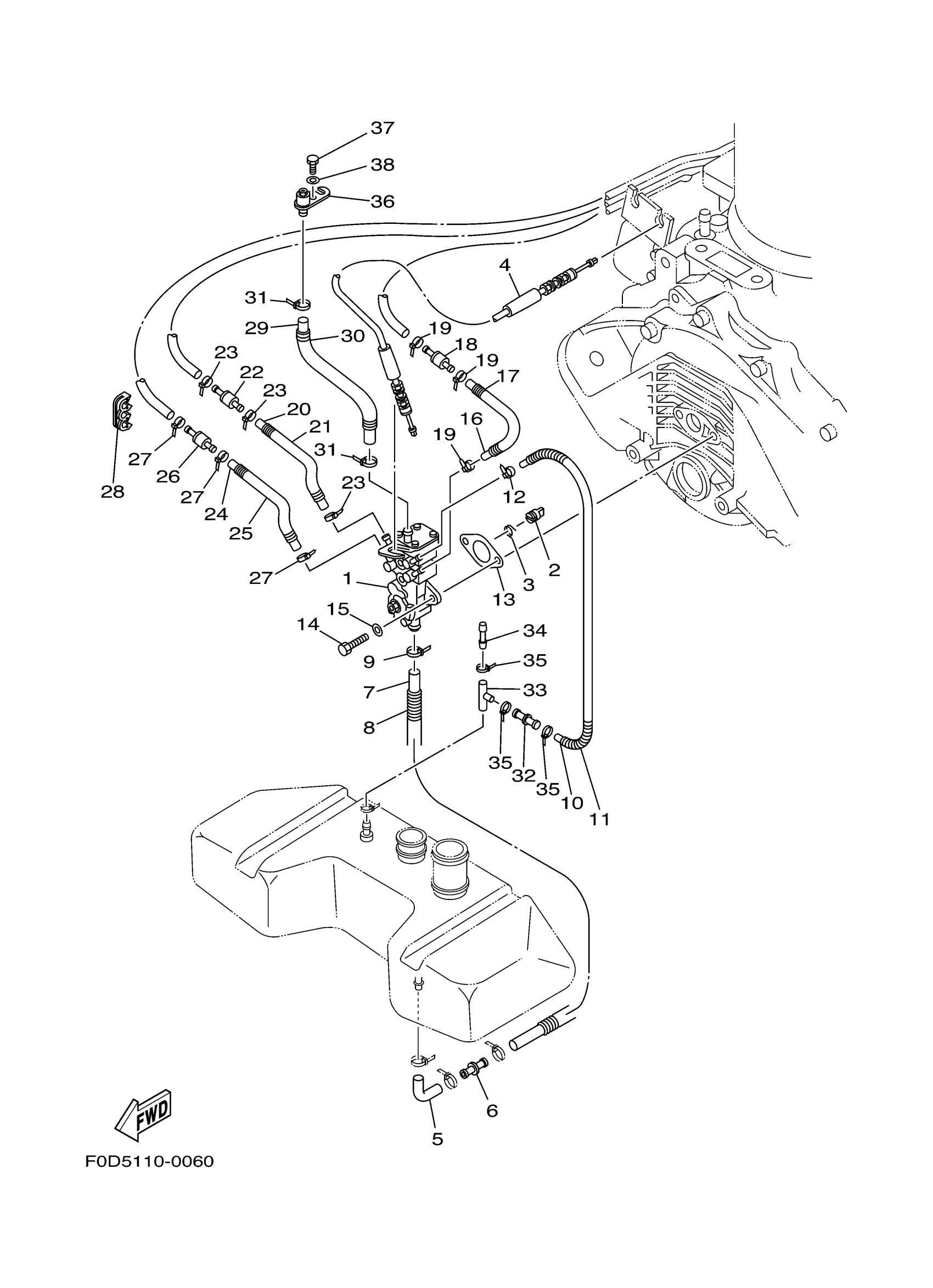

Yamaha XA1200Y (XL1200 LTD) F0D5 2000 OIL PUMP Diagram
#
1
OIL INJECTION PUMP ASSY
66V-13200-00-00
Unavailable
2
JOINT
65U-13132-00-00
Unavailable
3
SPRING
66E-13469-00-00
Unavailable
4
PUMP CABLE ASSY
66V-26320-00-00
Unavailable
5
PIPE, OIL 1
66V-13416-01-00
Unavailable
6
CONNECTION
66V-51142-00-00
Unavailable
7
HOSE (L700)
90445-117F2-00
$30.99
8
HOSE
90446-17ME2-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
HOSE (L390)
90445-07M90-00
Unavailable
11
HOSE
90446-10ME3-00
$7.49
12
CLAMP
90465-10098-00
Unavailable
13
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
14
BOLT(7U8)
97080-06020-00
Unavailable
15
WASHER, PLAIN (646)
92990-06600-00
$2.80
16
HOSE(62T)
90446-07M48-00
Unavailable
17
HOSE
90446-10M86-00
Unavailable
18
VALVE, CHECK
6R3-13183-10-00
Unavailable
19
CLAMP
90465-10098-00
Unavailable
20
HOSE(62T)
90446-07M48-00
Unavailable
21
HOSE
90446-10M86-00
Unavailable
22
VALVE, CHECK
6R3-13183-10-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
HOSE(62T)
90446-07M48-00
Unavailable
25
HOSE
90446-10M86-00
Unavailable
26
VALVE, CHECK
6R3-13183-10-00
Unavailable
27
CLAMP
90465-10098-00
Unavailable
28
CLAMP
90464-07M05-00
Unavailable
29
PIPE 4
66V-24314-00-00
Unavailable
30
HOSE (L120)
90446-17ME8-00
Unavailable
31
CLAMP
90465-10098-00
Unavailable
32
JOINT
63M-13132-00-00
Unavailable
33
PIPE, JOINT 3
63M-24378-00-00
Unavailable
34
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
35
CLAMP
90465-10098-00
Unavailable
36
BOLT, BREATHER
66V-13185-00-00
Unavailable
37
BOLT(GH1)
97080-06012-00
Unavailable
38
WASHER, PLAIN (646)
92990-06600-00
$2.80
