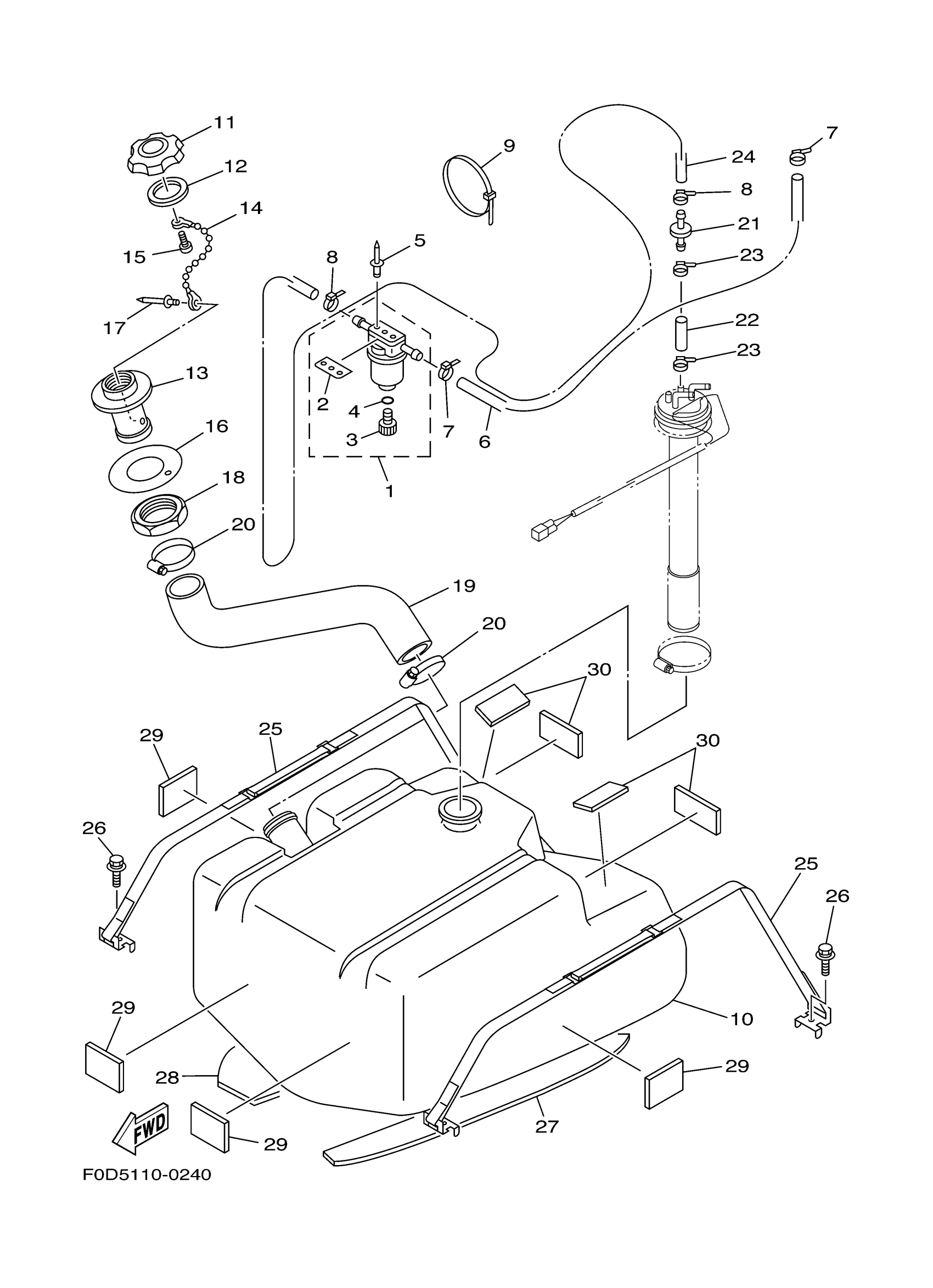

Yamaha XA1200Y (XL1200 LTD) F0D5 2000 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

CLAMP

90465-10098-00

$1.68

9

CLAMP

90464-99801-00

$2.73

10

TANK, FUEL

F0D-U7711-00-00

Unavailable

11

CAP, FUEL FILLER

GP7-U7831-01-00

$25.11

12

PACKING

GP7-U7832-01-00

$5.35

13

SOCKET

GP7-U7833-00-00

$35.88

14

CHAIN BALL

GP7-U7835-00-00

$4.51

15

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

16

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

17

RIVET, BLIND

90267-329UR-00

$1.15

18

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

19

HOSE

F0D-U7844-00-00

Unavailable

20

BAND, HOSE 55

90601-155U4-00

$5.87

21

CHECK VALVE

EU0-67767-31-00

$20.93

22

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

23

CLAMP

90465-10098-00

$1.68

24

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

25

BELT, TANK 1

GH3-67743-01-00

$112.11

26

BOLT, WITH WASHER

90119-08800-00

$4.09

27

MAT 1

F0D-U759B-00-00

Unavailable

28

MAT 1

F0D-U759B-10-00

Unavailable

29

MAT 2

F0D-U759C-00-00

Unavailable

30

MAT 2

GJ1-U759C-00-00

$30.29
