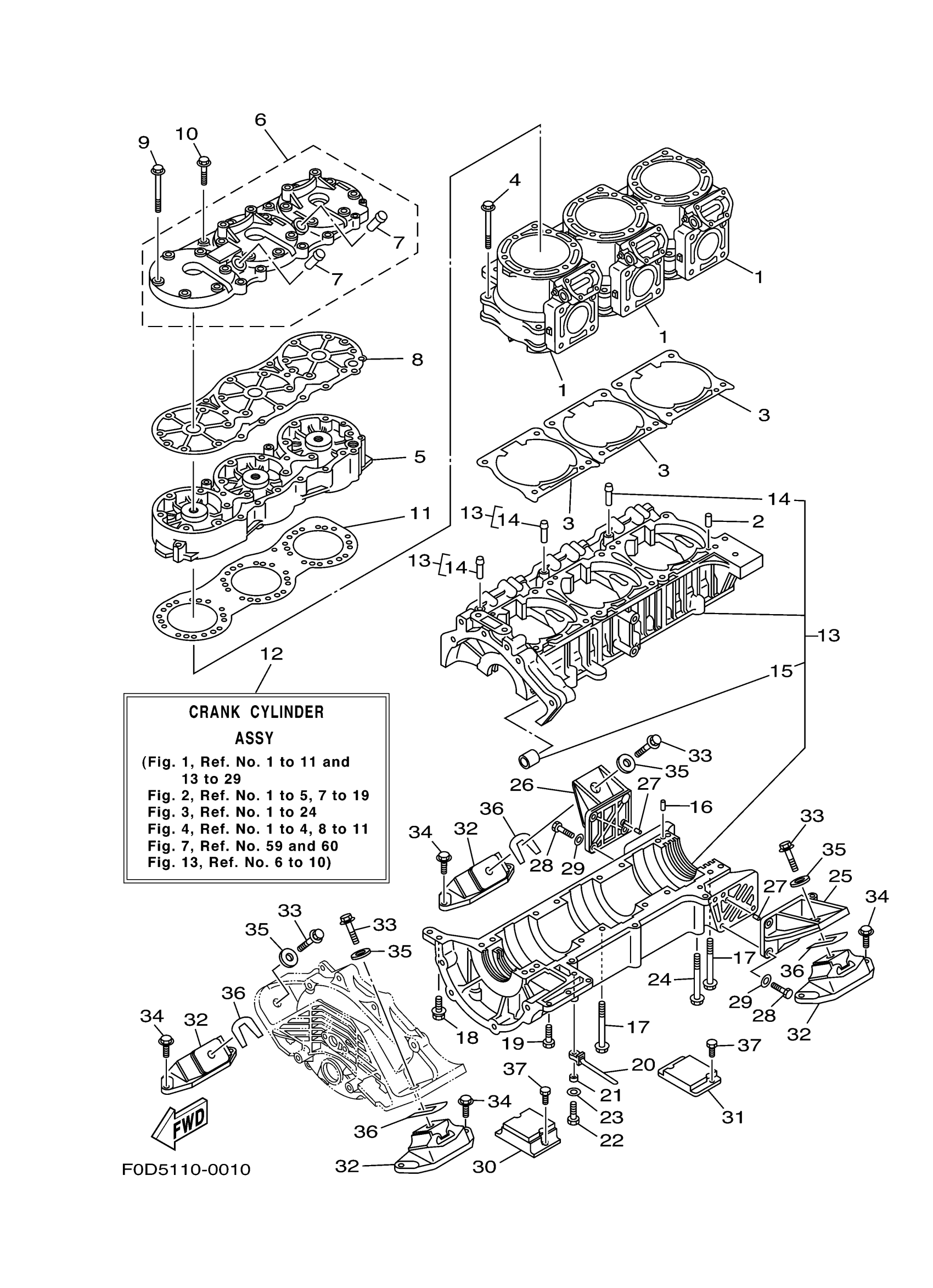

Yamaha XA1200Y (XL1200 LTD) F0D5 2000 CYLINDER. CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

66V-W1130-00-94

Unavailable

2

PIN, DOWEL (614)

93606-12019-00

$3.05

3

GASKET, CYLINDER

66E-11351-02-00

$21.32

4

BOLT (6F5)

90119-10M07-00

$4.21

5

HEAD, CYLINDER 1

66V-11111-01-8S

Unavailable

6

COVER, CYLINDER HEAD 1

66V-11191-01-00

Unavailable

7

. NIPPLE

66E-51129-00-00

Unavailable

8

GASKET, HEAD COVER 1

66V-11193-01-00

$44.82

9

BOLT, WITH WASHER

90119-08M99-00

$3.62

10

BOLT, WITH WASHER

90119-08MA0-00

Unavailable

11

GASKET, CYLINDER HEAD 1

66V-11181-01-00

$64.36

12

CRANK CYLINDER ASSY

66V-W0090-03-8S

Unavailable

13

CRANKCASE ASSY

68N-15100-00-00

$1,219.68

14

. NIPPLE

66V-14251-00-00

$4.09

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

$3.05

17

BOLT, WITH WASHER

90119-08M63-00

Unavailable

18

BOLT, WITH WASHER

90119-08009-00

$2.43

19

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

20

CLAMP

90465-12M53-00

$5.00

21

COLLAR

90387-06M05-00

$6.45

22

BOLT (62Y)

97013-06040-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT, WITH WASHER

90119-06M84-00

$6.33

25

BRACKET, REAR UPPER 1

66V-21425-01-8P

$175.74

26

BRACKET, REAR UPPER 2

66V-21426-01-8P

$163.62

27

PIN, DOWEL (614)

93606-12019-00

$3.05

28

BOLT (682)

97013-08025-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

$2.17

30

STOPPER, UPPER MOUNT

66V-44532-00-94

$134.83

31

STOPPER, LOWER MOUNT RUBBER

66V-44574-00-94

Unavailable

32

MOUNT RUBBER

68N-44517-00-00

$104.53

33

BOLT, WITH WASHER

90119-08856-00

$5.17

34

BOLT, WITH WASHER

90119-08829-00

$3.88

35

WASHER, PLATE

90201-099U3-00

$2.16

36

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

36

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

36

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

36

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

36

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

36

SHIM (T=3.0)

EU0-U7354-00-30

Unavailable

37

BOLT

90101-06917-00

Unavailable
