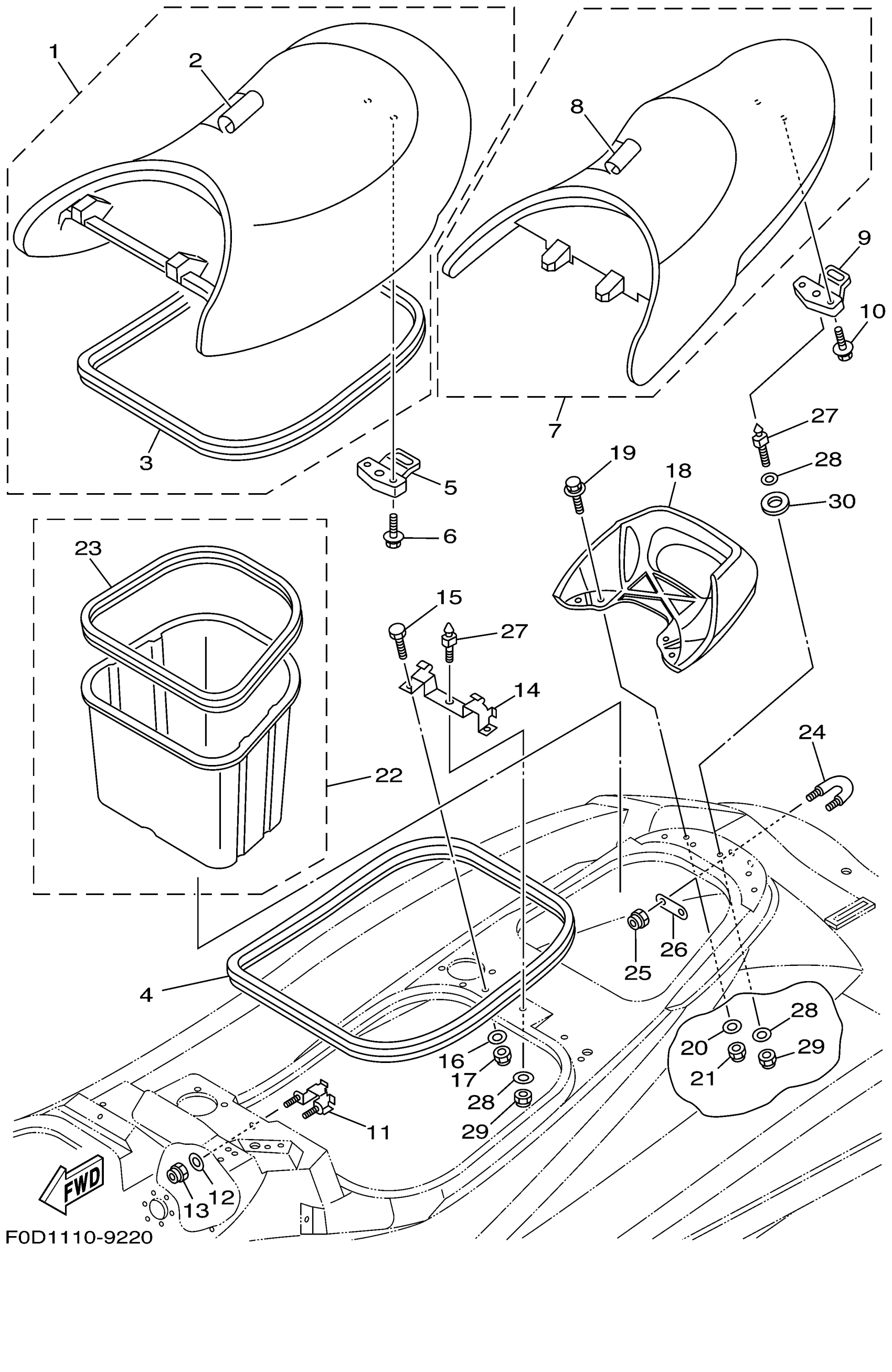

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 SEAT Diagram
#
1
SEAT ASSY (DARK MAROON)
F0D-U371A-01-00
Unavailable
2
. COVER, SEAT 1
F0D-U371B-00-00
Unavailable
3
PACKING 4
F0D-U266C-00-00
Unavailable
4
PACKING 4
F0D-U266C-00-00
Unavailable
5
SEAT LOCK ASSY
F0D-63850-01-00
Unavailable
6
BOLT, WITH WASHER
90119-06808-00
Unavailable
7
SINGLE SEAT ASSEMBLY
F0D-U372A-00-00
Unavailable
8
. COVER, SEAT
F0D-U372B-00-00
Unavailable
9
SEAT LOCK ASSY
F0D-63850-01-00
Unavailable
10
BOLT, WITH WASHER
90119-06808-00
Unavailable
11
STAY, SEAT 1
F0D-6378C-00-00
Unavailable
12
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
13
NUT, SELF-LOCKING
95720-06300-00
Unavailable
14
STAY, SEAT 2
F0D-6378D-01-00
Unavailable
15
BOLT
97080-10025-00
Unavailable
16
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
17
NUT, NYLON (FN8)
95720-10300-00
Unavailable
18
GRIP, HAND
F0D-U271B-00-00
Unavailable
19
BOLT, HEX (MIRROR)
90119-06924-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
21
NUT, SELF-LOCKING
95720-06300-00
Unavailable
22
UNDER LOCKER ASSY
F0D-U474A-00-00
Unavailable
23
. PACKING 5
F0D-U266D-00-00
Unavailable
24
STERN EYE (BLACK)
F1K-61628-00-00
Unavailable
25
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
26
PLATE A
GP7-U4953-10-00
Unavailable
27
PIN
GH1-U3774-00-00
Unavailable
28
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
29
NUT, NYLON (FN8)
95720-10300-00
Unavailable
30
PLATE, DAMPER
F0D-6376D-00-00
Unavailable
