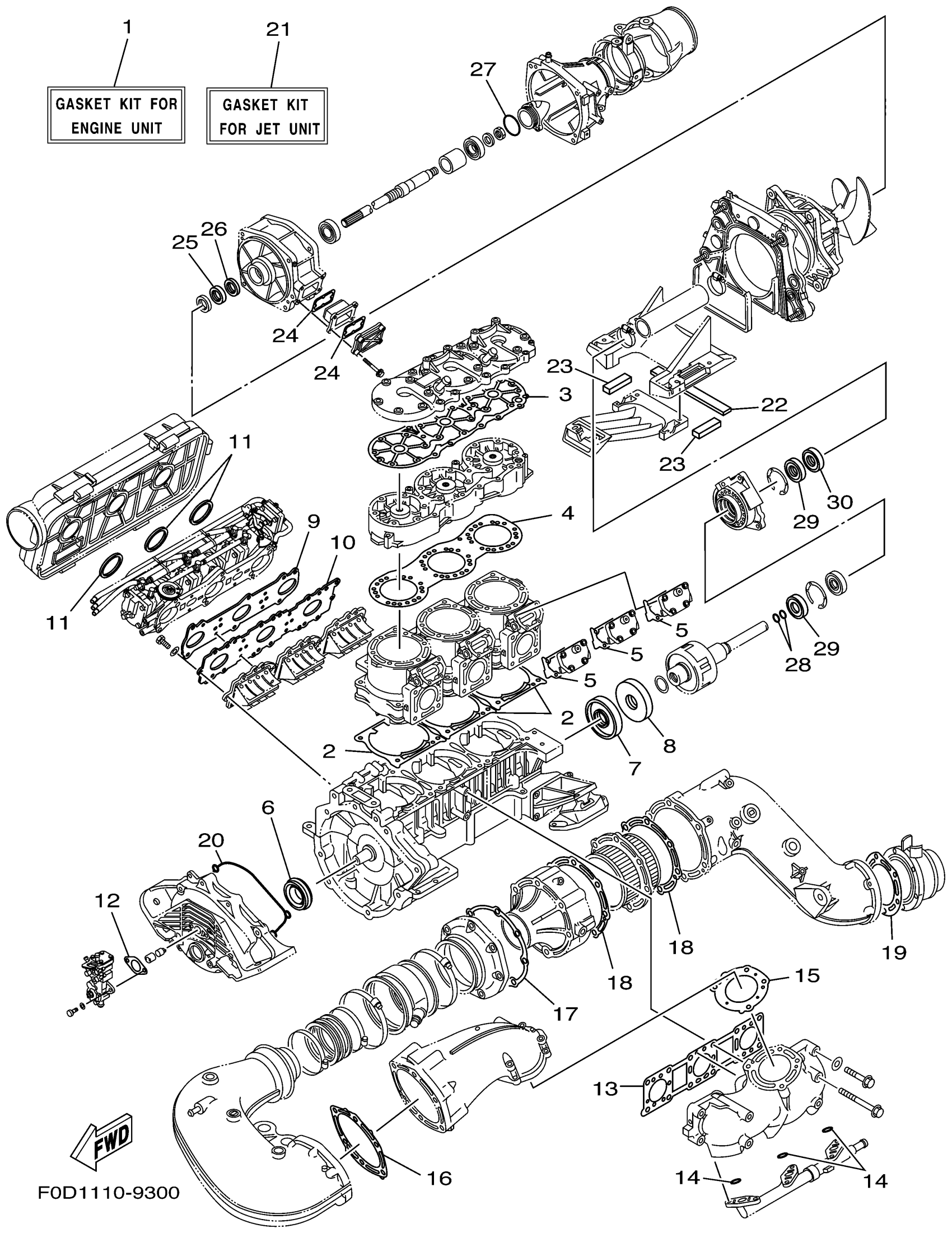

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 REPAIR KIT 1 Diagram
#
1
GASKET KIT FOR ENGINE UNIT
66V-W0001-01-00
Unavailable
2
GASKET, CYLINDER
66E-11351-02-00
Unavailable
3
GASKET, HEAD COVER 1
66V-11193-01-00
Unavailable
4
GASKET, CYLINDER HEAD 1
66V-11181-01-00
Unavailable
5
GASKET, COVER
66E-1131B-02-00
Unavailable
6
OIL SEAL
93103-35011-00
Unavailable
7
OIL SEAL
93101-34001-00
Unavailable
8
OIL SEAL
93101-34002-00
Unavailable
9
. PLATE
66V-13556-00-00
Unavailable
10
. PLATE, REED VALVE
66V-13624-00-00
Unavailable
11
. O-RING
66E-13473-00-00
Unavailable
12
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
13
GASKET, EXHAUST PIPE
66V-14613-01-00
Unavailable
14
O-RING(6R7)
93210-17MA4-00
$7.49
15
GASKET, MUFFLER DAMPER 1
66V-14739-01-00
Unavailable
16
GASKET, MUFFLER DAMPER 2
66V-14749-01-00
Unavailable
17
GASKET, EXHAUST OUTER COVER
66V-41114-01-00
Unavailable
18
GASKET, EXHAUST OUTER COVER
66V-41124-01-00
Unavailable
19
GASKET, EXHAUST PIPE
66V-14623-01-00
Unavailable
20
. O-RING
66V-81168-00-00
Unavailable
21
GASKET KIT FOR JET UNIT
66V-W0001-20-00
Unavailable
22
FELT, PACKING
66V-R1367-00-00
Unavailable
23
FELT, PACKING 2
66V-R1368-00-00
Unavailable
24
. O-RING
66V-42414-00-00
Unavailable
25
OIL SEAL
93101-28M66-00
Unavailable
26
OIL SEAL
93101-28002-00
Unavailable
27
. O-RING
93210-46M16-00
Unavailable
28
O-RING
93210-19001-00
Unavailable
29
OIL SEAL(62T)
93101-25M55-00
Unavailable
30
OIL SEAL
93101-24001-00
Unavailable
