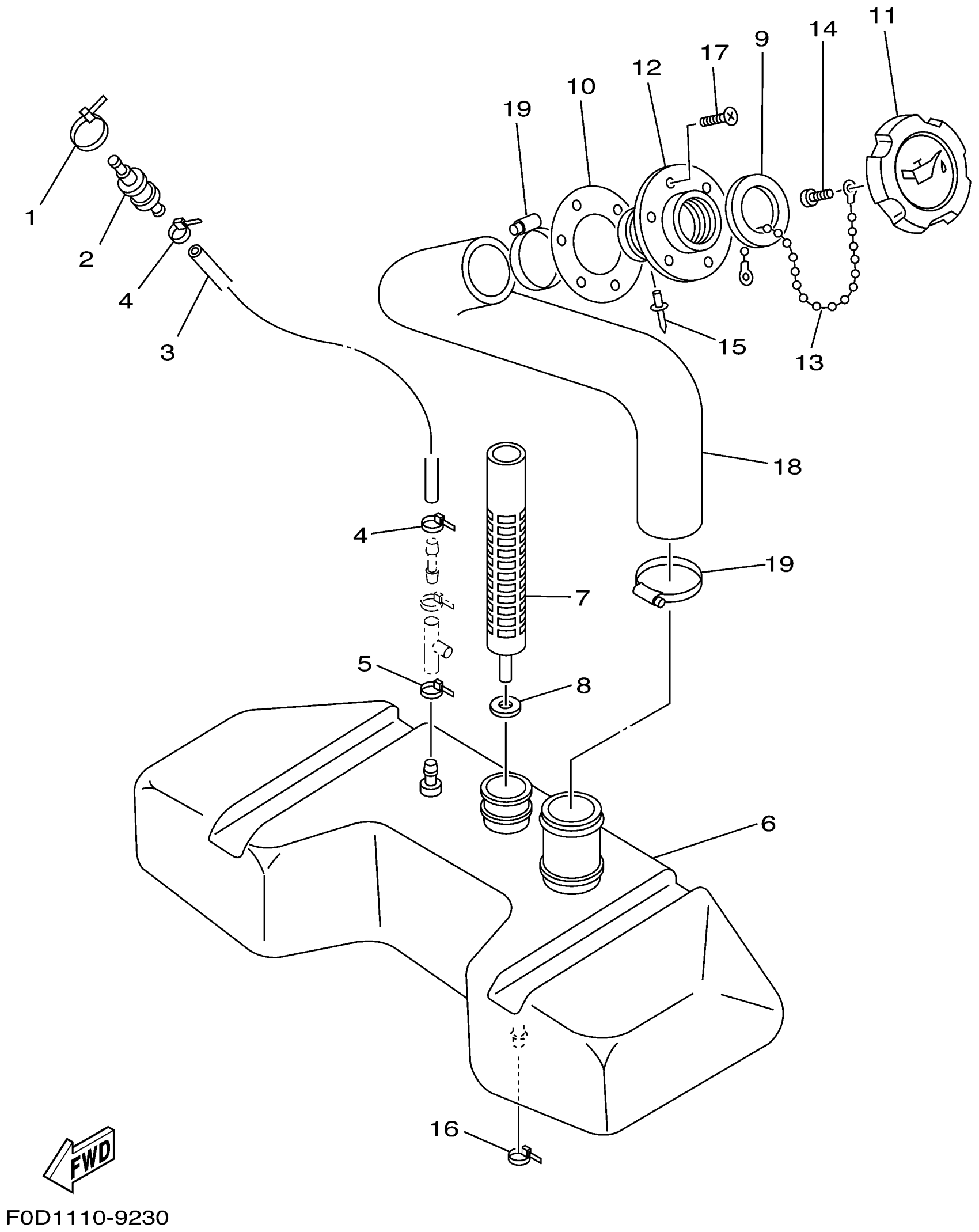

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 OIL TANK Diagram

#

Description
Price

1

BAND (EU0)

90601-20009-00

$6.36

2

. ROLL OVER VALVE

FJ0-67766-00-00

$54.53

3

HOSE, AIR VENT 3

GJ3-U7856-20-00

Unavailable

4

CLAMP

90465-10098-00

$1.68

5

CLAMP

90465-10098-00

$1.68

6

TANK, OIL

F0D-U775B-02-00

Unavailable

7

FILTER

99999-03209-00

Unavailable

8

PACKING (T:10MM)

F0D-6775E-01-00

Unavailable

9

PACKING, OIL CAP

GJ3-U778C-00-00

$1.72

10

PACKING, OIL FILLER

GJ3-U778E-00-00

$3.56

11

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

12

SOCKET, OIL FILLER

GJ3-U778D-00-00

$4.70

13

CHAIN BALL

EU0-U7835-00-00

$8.32

14

SCREW,TAPPING (EU0)

97780-40110-00

$1.05

15

. RIVET, BLIND

90267-40935-00

$1.28

16

CLAMP

90465-10098-00

$1.68

17

SCREW, FLAT HEAD TAPPING

FX1-67869-00-00

$1.36

18

HOSE,OIL FILLER

F0D-U776C-10-00

Unavailable

19

BAND, HOSE 42

90601-142U6-00

Unavailable
