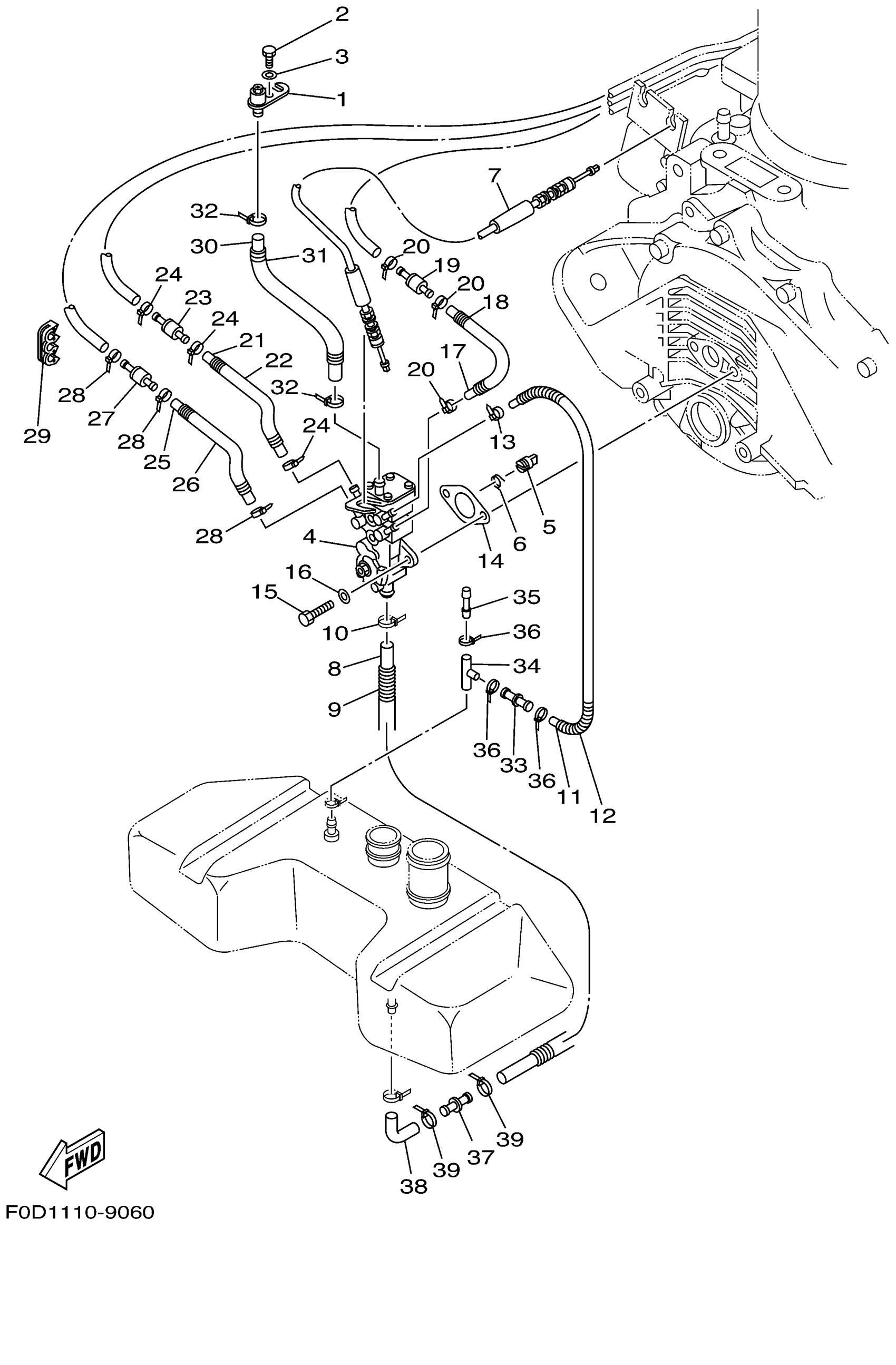

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 OIL PUMP Diagram

#

Description
Price

1

BOLT, BREATHER

66V-13185-00-00

Unavailable

2

BOLT(GH1)

97080-06012-00

$2.56

3

WASHER, PLAIN (646)

92990-06600-00

$1.84

4

OIL INJECTION PUMP ASSY

66V-13200-00-00

$468.17

5

JOINT

65U-13132-00-00

$48.47

6

SPRING

66E-13469-00-00

Unavailable

7

PUMP CABLE ASSY

66V-26320-00-00

$80.29

8

HOSE (L700)

90445-117F2-00

$22.86

9

HOSE

90446-17ME2-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

HOSE (L390)

90445-07M90-00

$6.59

12

HOSE

90446-10ME3-00

$4.60

13

CLAMP

90465-10098-00

$1.68

14

GASKET, PUMP CASE

63M-13116-00-00

$2.80

15

BOLT(7U8)

97080-06020-00

$3.63

16

WASHER, PLAIN (646)

92990-06600-00

$1.84

17

HOSE(62T)

90446-07M48-00

Unavailable

18

HOSE

90446-10M86-00

$3.93

19

VALVE, CHECK

6R3-13183-10-00

$39.61

20

CLAMP

90465-10098-00

$1.68

21

HOSE(62T)

90446-07M48-00

Unavailable

22

HOSE

90446-10M86-00

$3.93

23

VALVE, CHECK

6R3-13183-10-00

$39.61

24

CLAMP

90465-10098-00

$1.68

25

HOSE(62T)

90446-07M48-00

Unavailable

26

HOSE

90446-10M86-00

$3.93

27

VALVE, CHECK

6R3-13183-10-00

$39.61

28

CLAMP

90465-10098-00

$1.68

29

CLAMP

90464-07M05-00

$2.80

30

PIPE 4

66V-24314-00-00

$7.27

31

HOSE (L120)

90446-17ME8-00

Unavailable

32

CLAMP

90465-10098-00

$1.68

33

JOINT

63M-13132-00-00

$13.99

34

PIPE, JOINT 3

63M-24378-00-00

$5.91

35

PIPE, JOINT 1

6G8-24376-00-00

$5.91

36

CLAMP

90465-10098-00

$1.68

37

CONNECTION

66V-51142-00-00

$3.18

38

PIPE, OIL 1

66V-13416-01-00

$28.77

39

CLAMP

90465-10098-00

$1.68
