Description

Price

1

. PLATE

66V-13556-00-00

Unavailable

2

. PLATE, REED VALVE

66V-13624-00-00

Unavailable

3

BOLT(62Y)

97013-06025-00

$1.06

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

CLAMP

90464-14M55-00

$2.07

6

BOLT, WASHER BASED

90105-08M86-00

$15.99

7

BOLT

90109-06M00-00

Unavailable

8

REED VALVE ASSY

66V-13610-00-00

Unavailable

9

. REED SET

66V-W0004-00-00

Unavailable

10

REED VALVE ASSY

66V-13620-00-00

Unavailable

11

. REED SET

66V-W0004-00-00

Unavailable

12

COVER SUB ASSY

66V-14480-01-00

Unavailable

13

. HOLDER

66V-13898-00-00

Unavailable

14

. SEAL

66V-14457-00-00

Unavailable

15

. O-RING

66E-13473-00-00

Unavailable

16

COVER, CARBURETOR 2

66V-14284-00-00

Unavailable

17

ELEMENT, AIR CLEANER

66V-14451-00-00

Unavailable

18

BOLT, HEXAGON

97013-06045-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

SILENCER ASSY, INTAKE

66V-14440-00-00

Unavailable

21

. RUBBER, SEAL 2

66E-42717-00-00

Unavailable

22

GROMMET

90480-22M15-00

Unavailable

23

COLLAR

90387-08M37-00

Unavailable

24

BOLT, WITH WASHER

90119-08187-00

Unavailable

25

PIPE

66V-14419-00-00

Unavailable

26

CLAMP, HOSE

90460-99M23-00

Unavailable

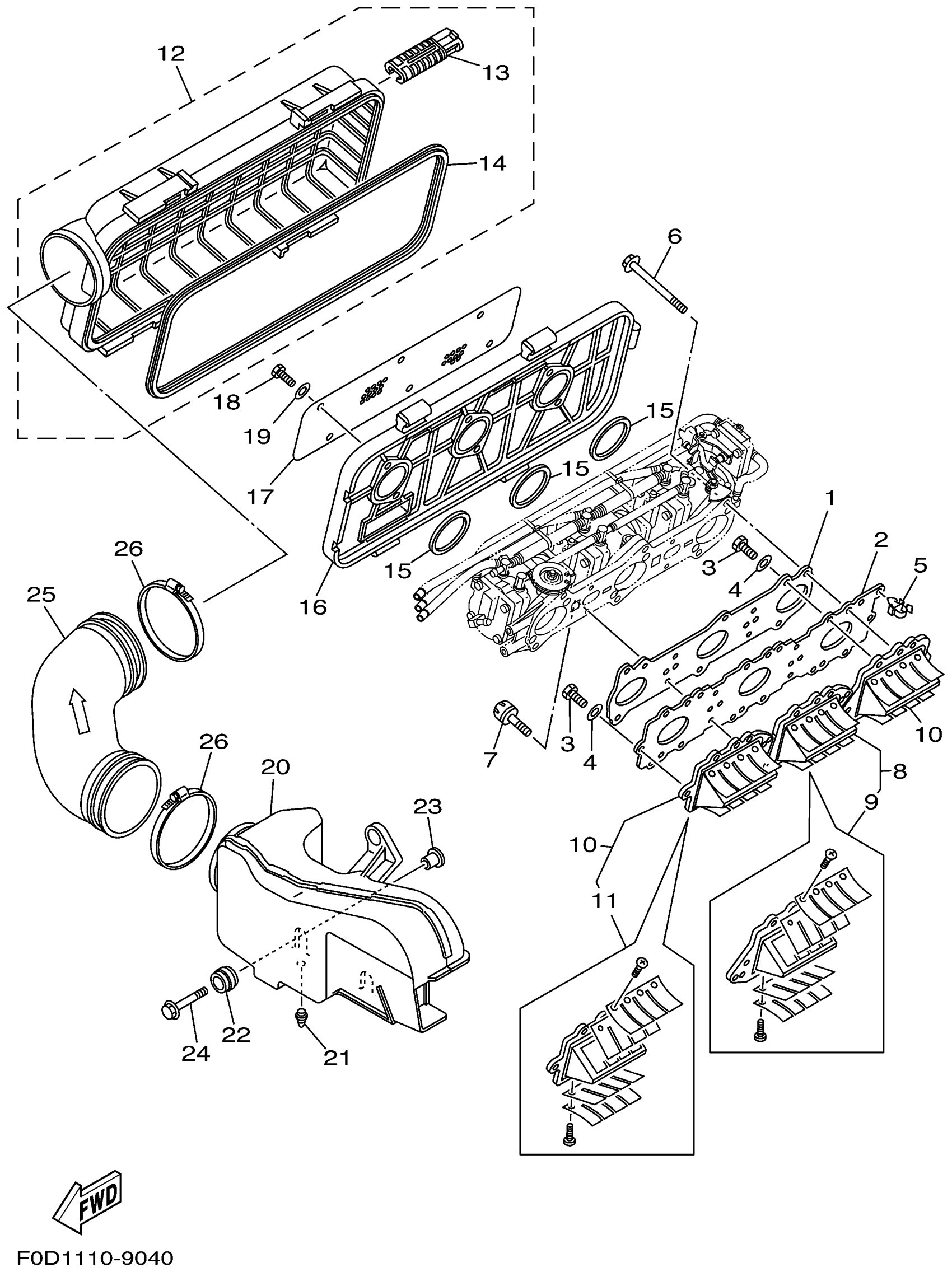

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 INTAKE Diagram

. PLATE

. PLATE, REED VALVE

BOLT(62Y)

WASHER, PLAIN (646)

CLAMP

BOLT, WASHER BASED

BOLT

REED VALVE ASSY

. REED SET

REED VALVE ASSY

. REED SET

COVER SUB ASSY

. HOLDER

. SEAL

. O-RING

COVER, CARBURETOR 2

ELEMENT, AIR CLEANER

BOLT, HEXAGON

WASHER, PLAIN (646)

SILENCER ASSY, INTAKE

. RUBBER, SEAL 2

GROMMET

COLLAR

BOLT, WITH WASHER

PIPE

CLAMP, HOSE
