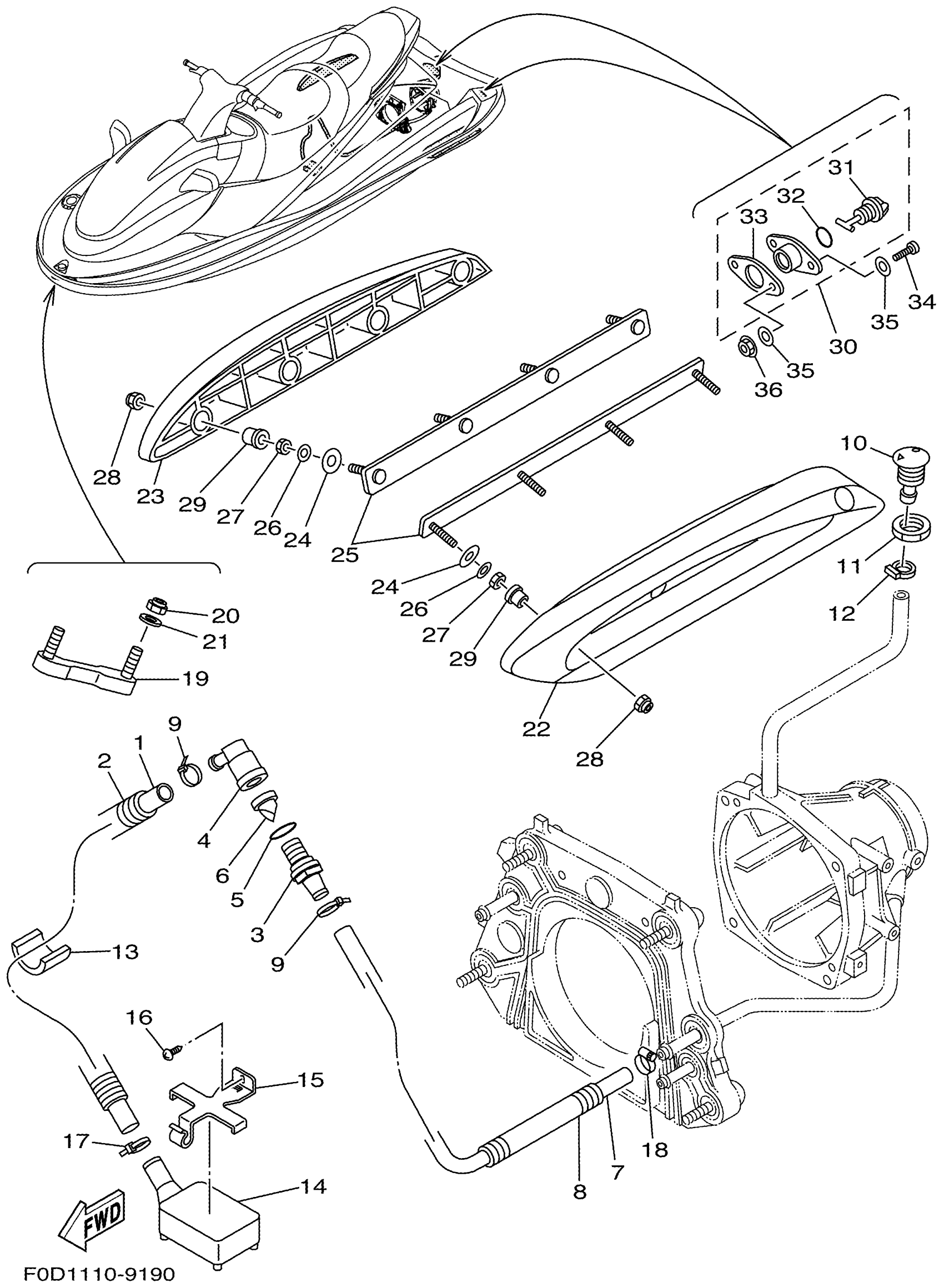

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 HULL DECK Diagram
#
1
HOSE (L1000)
90445-198C0-00
Unavailable
2
HOSE
90446-27M73-00
$21.99
3
JOINT, HOSE
68N-5112T-00-00
Unavailable
4
JOINT, HOSE 2
63M-51165-00-00
Unavailable
5
O-RING
93210-22ME5-00
Unavailable
6
VALVE 1
63M-5316M-00-00
Unavailable
7
HOSE (L650)
90445-198B9-00
Unavailable
8
HOSE(63M)
90446-27M55-00
$16.99
9
BAND
90601-200U1-00
Unavailable
10
SPOUT
FN8-6269B-00-00
Unavailable
11
NUT
EU0-61652-00-00
Unavailable
12
CLIP
90600-91755-00
Unavailable
13
PACKING, HOSE 2
GJ1-U7578-22-00
Unavailable
14
STRAINER, BILGE
GD0-U761D-00-00
Unavailable
15
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
16
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
17
CLAMP
90465-10098-00
Unavailable
18
BAND, HOSE 18
90601-118UF-00
Unavailable
19
BOWEYE 1
F0D-61624-01-00
Unavailable
20
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
STABILIZER LH
F0D-U883N-20-00
Unavailable
23
STABILIZER, RH
F0D-U883P-10-00
Unavailable
24
PACKING,STABILIZER
F0D-U883U-00-00
Unavailable
25
BRACKET, STABILIZER
F0D-6883T-01-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
NUT
9538R-06600-00
Unavailable
28
NUT, SELF-LOCKING
95720-06300-00
Unavailable
29
COLLAR
90387-08802-00
Unavailable
30
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
31
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
32
. O-RING
EU0-62283-00-00
Unavailable
33
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
34
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
35
. WASHER, PLAIN
92990-05200-00
Unavailable
36
NUT, FLANGE
95720-05300-00
Unavailable
