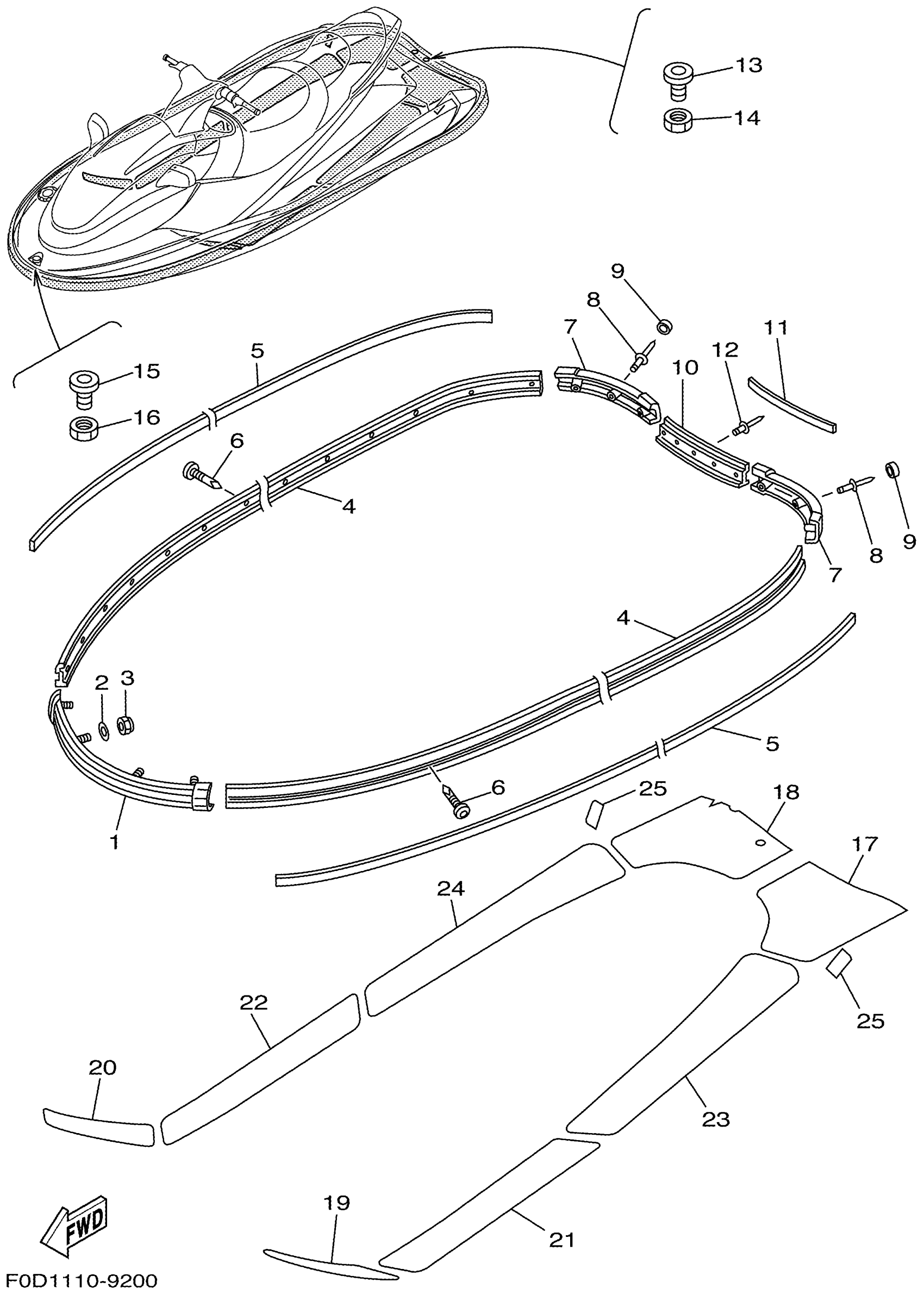

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 GUNWALE MAT Diagram

#

Description

Price

1

BOW GUNWALE COMP.

GP7-U2501-20-00

Unavailable

2

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

3

NUT, SELF-LOCKING

95720-06300-00

Unavailable

4

GUNWALE, SIDE

F0D-U2512-00-00

Unavailable

5

INNER,GUNWALE

F1F-U2519-01-00

Unavailable

6

SCREW,TAPPING

90169-059U1-00

Unavailable

7

GUNWALE, STERN 1

F0D-U251D-00-00

Unavailable

8

RIVET, BLIND

90267-489UT-00

Unavailable

9

PLUG, MUSHROOM

GJ3-U352E-50-00

Unavailable

10

COVER, GUNWALE 1

F0D-U252C-00-00

Unavailable

11

COVER, GUNWALE 2

F0V-U252D-00-00

Unavailable

12

RIVET, BLIND

90267-489US-00

Unavailable

13

ROPE HOLE

FN8-61651-01-00

Unavailable

14

NUT

EU0-61652-00-00

Unavailable

15

ROPE HOLE

GH1-61651-01-00

Unavailable

16

NUT

EU0-61652-00-00

Unavailable

17

MAT, UPPER LH

F0D-U358F-02-00

Unavailable

18

MAT, UPPER RH

F0D-U358G-02-00

Unavailable

19

MAT, STEP 1

F0D-U351H-00-00

Unavailable

20

MAT, STEP 2

F0D-U351J-01-00

Unavailable

21

MAT, STEP 3

F0D-U351K-01-00

Unavailable

22

MAT, STEP 4

F0D-U351M-01-00

Unavailable

23

MAT, STEP 5

F0D-U351N-01-00

Unavailable

24

MAT, STEP 6

F0D-U351P-01-00

Unavailable

25

MAT, STEP 7

F0D-U351R-00-00

Unavailable
