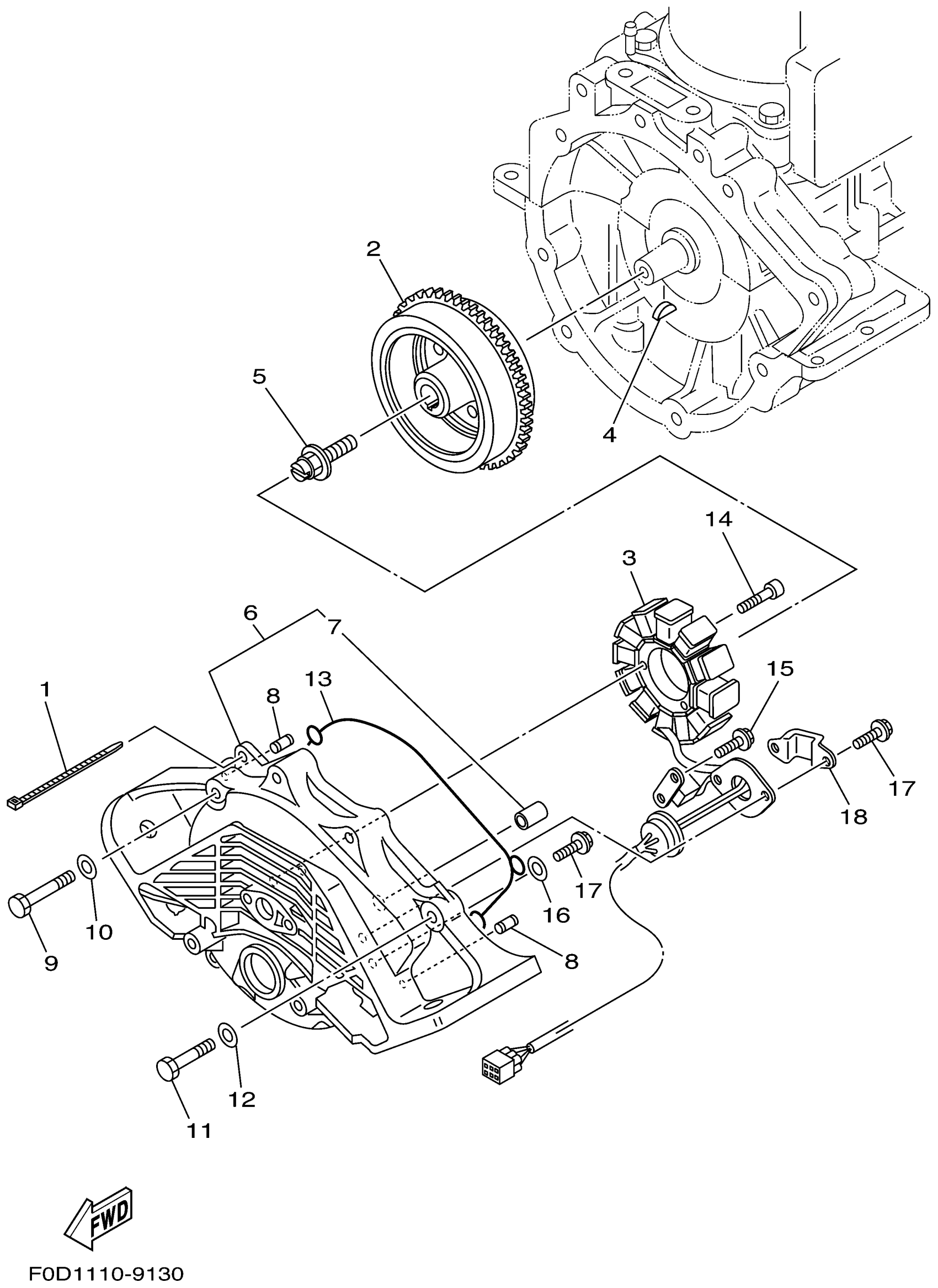

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 GENERATOR Diagram

#

Description

Price

1

CLAMP

90465-10098-00

Unavailable

2

ROTOR ASSY

66V-85550-00-00

Unavailable

3

STATOR ASSY

66V-85510-00-00

Unavailable

4

KEY, WOODRUFF

90280-05001-00

$12.49

5

BOLT(63M)

90109-10M72-00

Unavailable

6

COVER, FLYWHEEL

66V-81337-02-8P

Unavailable

7

. BUSH, SOLID

90380-12M29-00

Unavailable

8

PIN, DOWEL

93608-16M16-00

Unavailable

9

BOLT, HEXAGON

97013-10055-00

Unavailable

10

WASHER, PLATE

92990-10600-00

Unavailable

11

BOLT

97013-10045-00

Unavailable

12

WASHER, PLATE

92990-10600-00

Unavailable

13

. O-RING

66V-81168-00-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

15

BOLT, WITH WASHER

97513-05514-00

Unavailable

16

WASHER, PLATE

90201-06M02-00

Unavailable

17

BOLT,SOCKET

91318-06014-00

Unavailable

18

CLAMP

66V-81328-00-00

Unavailable
