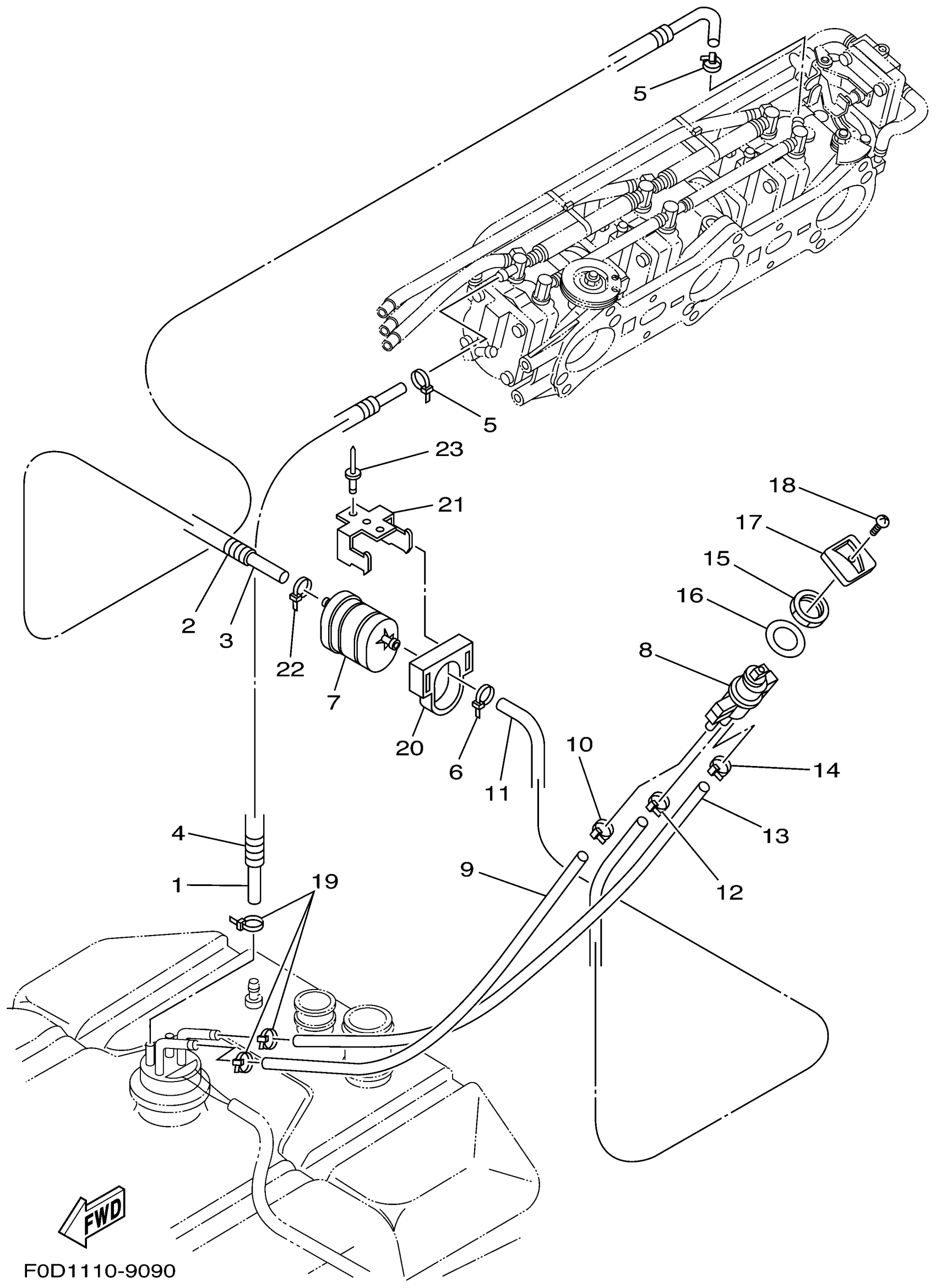

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 FUEL Diagram

#

Description
Price

1

HOSE )L1400)

90445-11M59-00

$49.29

2

HOSE

90446-17MA5-00

$11.05

3

HOSE

90445-11M71-00

Unavailable

4

HOSE

90446-17MA6-00

Unavailable

5

CLAMP

90465-10098-00

$1.68

6

CLAMP

90465-10098-00

$1.68

7

FILTER ASSY

66V-24560-01-00

$32.97

8

FUEL COCK ASSY 1

66V-24500-02-00

$63.62

9

HOSE

90445-11M71-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

HOSE

90445-11M71-00

Unavailable

12

CLAMP

90465-10098-00

$1.68

13

HOSE

90445-11M71-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

NUT, HEXAGON (1E6)

90170-22187-00

$7.77

16

WASHER, PLATE

90202-229U1-00

$14.35

17

LEVER, COCK

F0D-6777C-00-00

$11.48

18

SCREW, BIND

98980-04008-00

$3.05

19

CLAMP

90465-10098-00

$1.68

20

HOLDER, FILTER

EU0-U7817-00-00

$13.63

21

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

22

CLAMP

90465-10098-00

$1.68

23

RIVET (EU0)

90267-48938-00

$5.00
