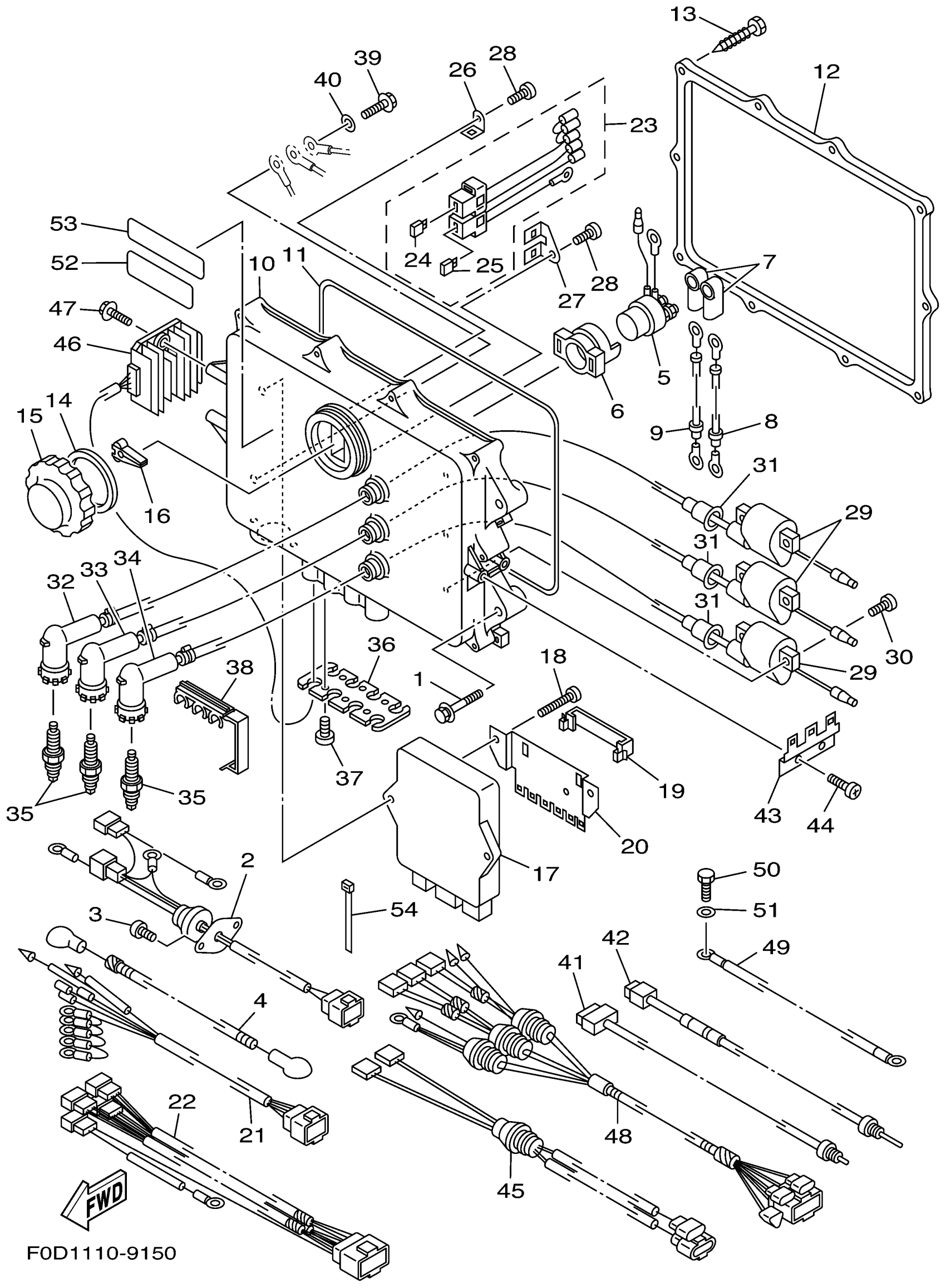

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08856-00

$5.17

2

LEAD WIRE ASSY

66V-81315-00-00

$213.62

3

SCREW, TAPPING

97780-60425-00

Unavailable

4

WIRE, LEAD

66V-82117-00-00

$124.23

5

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

6

HOLDER, RELAY

6M6-81952-01-00

Unavailable

7

COVER, LEAD WIRE

66V-82119-00-00

$2.27

8

WIRE, LEAD

66V-82117-10-00

$104.53

9

WIRE, LEAD

66V-82117-10-00

$104.53

10

HOUSING

66V-8552A-00-00

$216.65

11

GASKET, TERMINAL

66V-81921-00-00

$23.47

12

COVER, CASE

66V-8552E-00-00

$81.80

13

SCREW, TAPPING

97780-60430-00

$3.61

14

. GASKET

66V-81844-00-00

Unavailable

15

. CAP

66V-8132W-00-00

$11.85

16

. PULLER, FUSE

67F-2812A-00-00

$4.11

17

C.D.I. UNIT ASSY

66V-85540-00-00

$645.44

18

SCREW, TAPPING

97780-60530-00

Unavailable

19

CLAMP, HARNESS

66V-83919-00-00

$6.36

20

BRACKET 1

66V-83955-00-00

$15.89

21

LEAD WIRE ASSY

66V-85515-00-00

$133.32

22

WIRE, LEAD

66V-83553-00-00

$151.50

23

FUSE HOLDER ASSY

66V-82150-00-00

Unavailable

24

FUSE

5JJ-82151-20-00

Unavailable

25

. FUSE (10A)

67F-82151-40-00

$6.07

26

STAY, FUSE BOX

66V-82171-00-00

$8.32

27

STAY, FUSE HOLDER

66V-82153-00-00

$8.32

28

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

29

IGNITION COIL ASSY

66V-85570-00-00

$143.92

30

SCREW, TAPPING(65J)

97780-60625-00

$2.64

31

GROMMET

66V-82355-00-00

Unavailable

32

HIGH TENSION CORD ASSY 1

66V-82340-01-00

Unavailable

33

HIGH TENSION CORD ASSY 1

66V-82340-11-00

Unavailable

34

HIGH TENSION CORD ASSY 1

66V-82340-21-00

Unavailable

35

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.82

36

COVER

66V-85525-00-00

$7.27

37

SCREW, TAPPING

97780-60425-00

Unavailable

38

CLAMP, CORD

65U-81317-10-00

$7.27

39

BOLT(GH1)

97080-06012-00

$2.56

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

THERMOSENSOR ASSY

66V-WS857-00-00

Unavailable

42

SENSOR, EXT, TEMP.

66V-85881-00-00

$280.29

43

BRACKET

66V-85542-00-00

$4.55

44

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

45

WIRE, SUB LEAD

66V-82509-00-00

$128.77

46

RECTIFIER & REGULATOR ASSY

66V-81960-00-00

Unavailable

47

SCREW, TAPPING

97780-60425-00

Unavailable

48

EXTENSION, WIRE LEAD

66V-82553-00-00

$371.20

49

WIRE, LEAD 2

66V-82127-00-00

Unavailable

50

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

51

WASHER, PLAIN (646)

92990-06600-00

Unavailable

52

MARK 3

6R7-83623-40-00

$7.27

53

PLATE, EPA

66V-2179X-00-00

Unavailable

54

CLAMP(6E8)

90465-13M39-00

Unavailable
