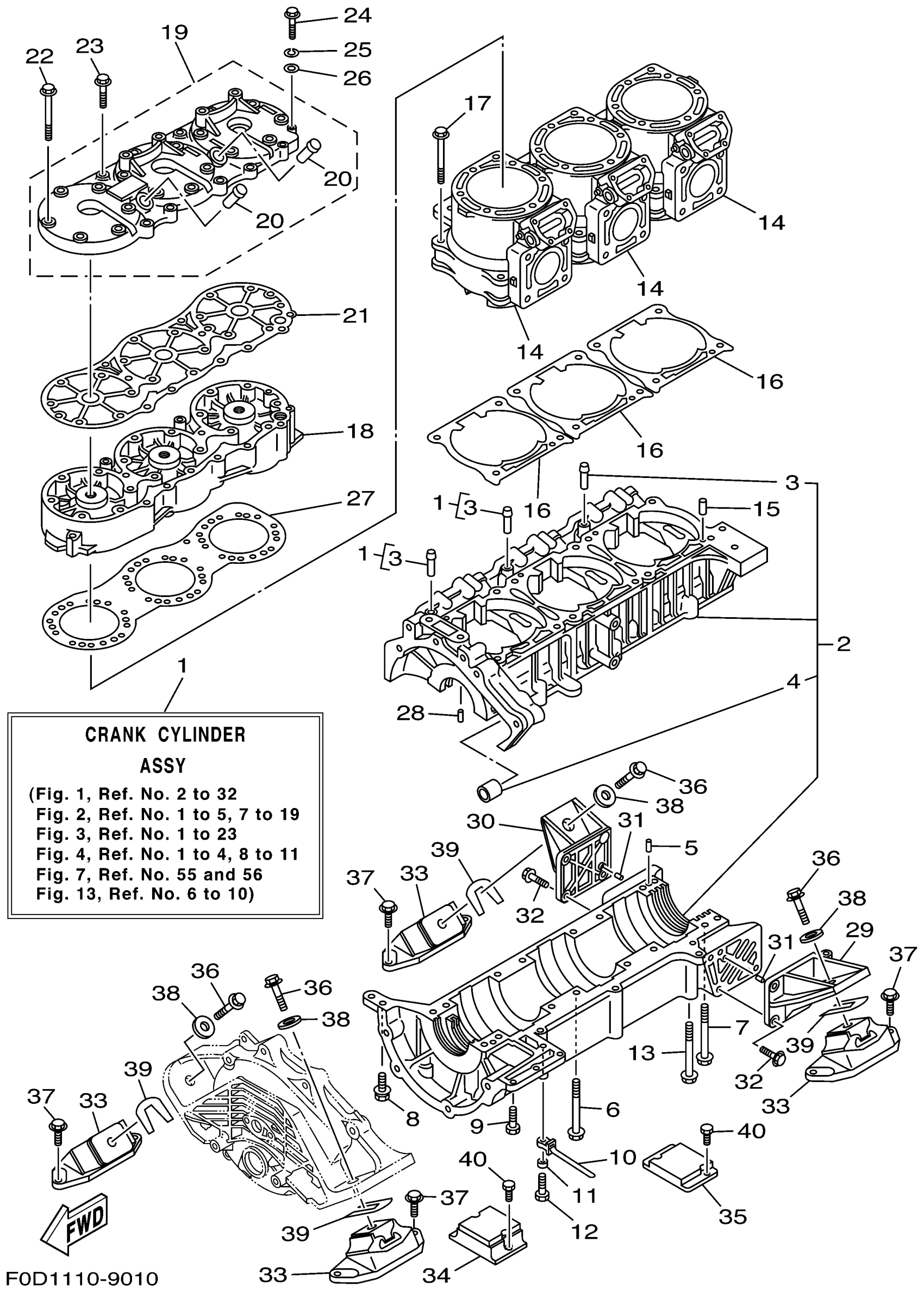

Yamaha XA1200X (WAVE RUNNER XL1200 LTD) F0D1 1999 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

66V-W0090-03-8S

Unavailable

2

CRANKCASE ASSY

68N-15100-00-00

$1,183.81

3

. NIPPLE

66V-14251-00-00

$3.97

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

PIN, DOWEL (614)

93606-12019-00

$3.50

6

BOLT, WITH WASHER

90119-08M63-00

Unavailable

7

BOLT, WITH WASHER

90119-08M56-00

Unavailable

8

BOLT, WITH WASHER

90119-08009-00

$2.26

9

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

10

CLAMP

90465-12M53-00

$4.85

11

COLLAR

90387-06M05-00

$6.83

12

BOLT, WITH WASHER(6L2)

90119-06M05-00

$2.21

13

BOLT, WITH WASHER

90119-06M84-00

$6.15

14

CYLINDER & PISTON SET

66V-W1130-00-94

$976.46

15

PIN, DOWEL (614)

93606-12019-00

$3.50

16

GASKET, CYLINDER

66E-11351-02-00

$18.80

17

BOLT (6F5)

90119-10M07-00

Unavailable

18

HEAD, CYLINDER 1

66V-11111-01-8S

Unavailable

19

COVER, CYLINDER HEAD 1

66V-11191-01-00

Unavailable

20

. NIPPLE

66E-51129-00-00

Unavailable

21

GASKET, HEAD COVER 1

66V-11193-01-00

$45.21

22

BOLT, WITH WASHER

90119-08M99-00

$3.22

23

BOLT, WITH WASHER

90119-08MA0-00

Unavailable

24

BOLT(3RV)

97014-06035-00

Unavailable

25

WASHER, SPRING

92995-06100-00

$2.87

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

GASKET, CYLINDER HEAD 1

66V-11181-01-00

$65.35

28

PIN (2H7)

93603-10049-00

Unavailable

29

BRACKET, REAR UPPER 1

66V-21425-01-8P

$170.57

30

BRACKET, REAR UPPER 2

66V-21426-01-8P

$158.81

31

PIN, DOWEL (614)

93606-12019-00

$3.50

32

BOLT (682)

97013-08025-00

Unavailable

33

MOUNT RUBBER

68N-44517-00-00

$90.62

34

STOPPER, UPPER MOUNT

66V-44532-00-94

$130.87

35

STOPPER, LOWER MOUNT RUBBER

66V-44574-00-94

Unavailable

36

BOLT, WITH WASHER

90119-08856-00

$5.39

37

BOLT, WITH WASHER

90119-08907-00

$5.12

38

WASHER, PLATE

90201-099U3-00

$2.30

39

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

39

SHIM (T=0.3)

EU0-67354-B0-00

$5.12

39

SHIM (T=0.5)

EU0-67354-C0-00

$4.27

39

SHIM (T=1.0)

EU0-67354-D0-00

$3.84

39

SHIM (T=2.0)

EU0-67354-E0-00

$3.84

40

BOLT

90101-06917-00

Unavailable
