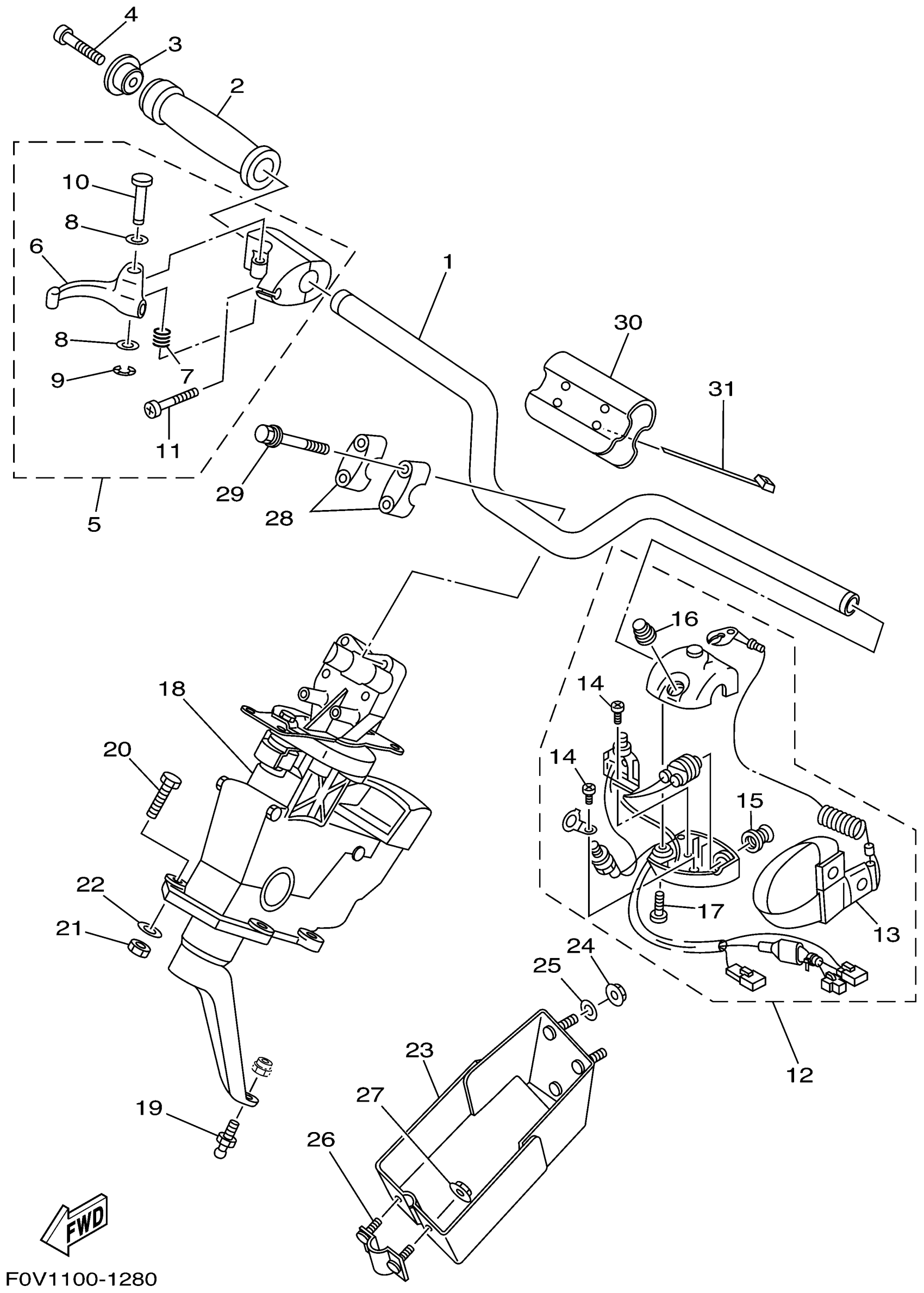

Yamaha XA1200AZ (XLT1200) F0V1 2001 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F0D-U1552-00-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

F0D-68310-01-00

Unavailable

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

STEERING MASTER ASSY

F0D-61400-12-00

Unavailable

19

STUD, JOINT BALL

EU0-61461-02-00

$14.38

20

BOLT, HEXAGON (FJ1)

97080-08030-00

$4.29

21

NUT, NYLON (6J8)

95780-08300-00

$10.55

22

WASHER, PLATE

90201-099U3-00

$2.16

23

BRACKET, STOPPER CABLE

F0D-61467-00-00

$136.35

24

NUT, NYLON

9572R-06300-00

$2.80

25

WASHER

9299R-06200-00

$0.43

26

STOPPER, CABLE

GH3-61468-00-00

Unavailable

27

NUT, NYLON

9572R-06300-00

$2.80

28

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

29

BOLT, WITH WASHER

90119-089U1-00

$3.23

30

PAD 1

F0D-U156E-00-00

Unavailable

31

BAND

90601-200U2-00

$3.16
