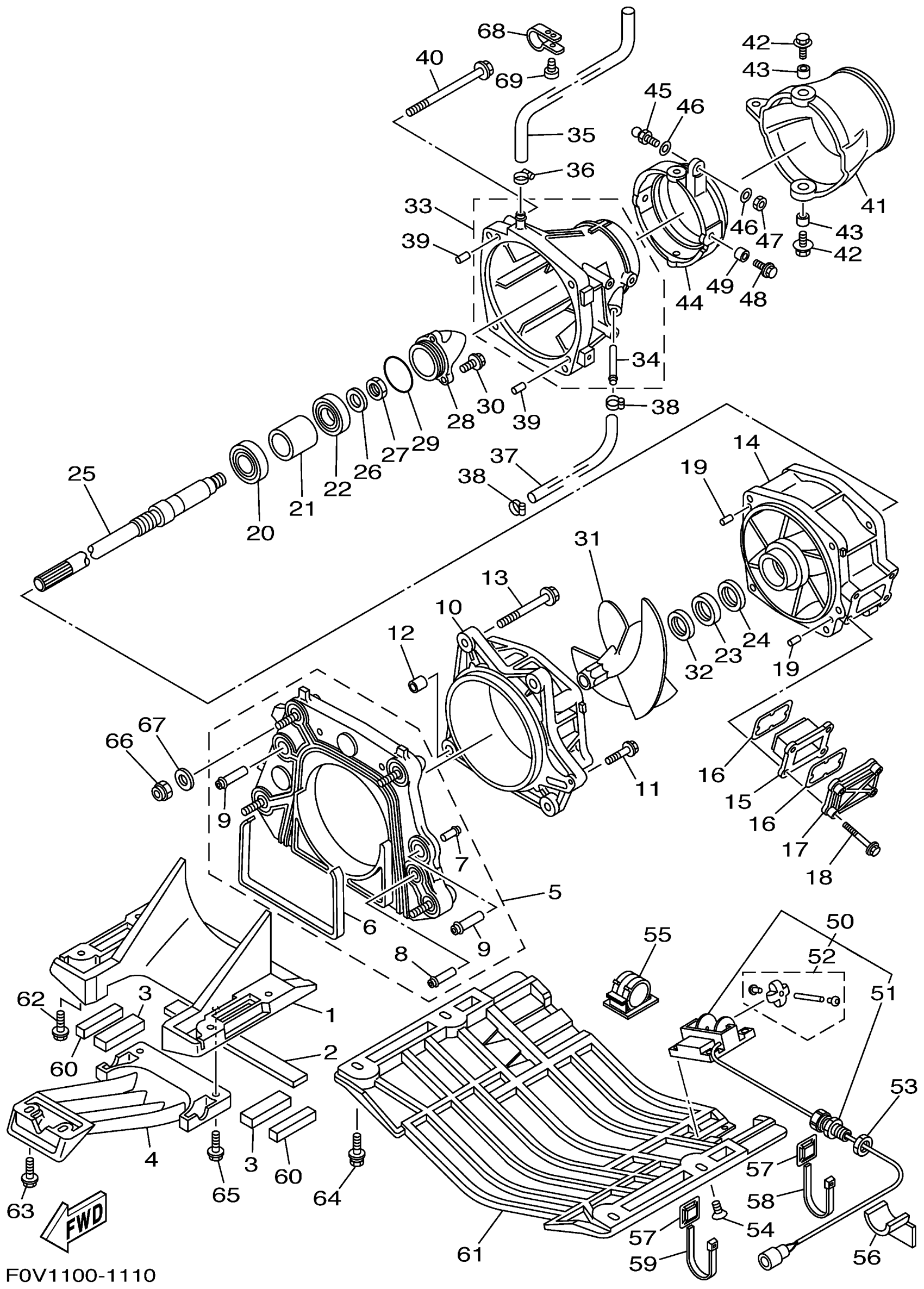

Yamaha XA1200AZ (XLT1200) F0V1 2001 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

66V-51311-00-94

$192.41

2

FELT, PACKING

66V-R1367-00-00

Unavailable

3

FELT, PACKING 2

66V-R1368-00-00

Unavailable

4

SCREEN, INTAKE

66V-51333-00-94

$133.32

5

PLATE, TRANSOM

66V-G5831-02-00

Unavailable

6

. FELT, PACKING

66V-51367-10-00

Unavailable

7

. NIPPLE

65A-R1129-00-00

Unavailable

8

. NIPPLE

66V-51129-01-00

Unavailable

9

. NIPPLE

66V-51129-10-00

$15.89

10

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

11

BOLT, WITH WASHER

90119-06894-00

$1.37

12

PIN, DOWEL(4JT)

99590-14016-00

$3.41

13

BOLT, WITH WASHER

90119-10811-00

$1.37

14

DUCT, IMPELLER

66V-51315-01-00

$173.57

15

FILTER

66V-46882-00-00

$5.91

16

. O-RING

66V-42414-00-00

$5.18

17

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

18

BOLT,WITH WASHER

90119-06898-00

$3.43

19

PIN, DOWEL (614)

93606-12019-00

Unavailable

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

SPACER 1

65V-45538-00-00

$29.88

22

BEARING

93306-304XB-00

$17.22

23

OIL SEAL

93101-28M66-00

Unavailable

24

OIL SEAL

93101-28002-00

$13.40

25

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

26

WASHER

9299R-16600-00

Unavailable

27

NUT

95317-16700-00

$4.55

28

CAP KIT

65A-R1326-10-KT

Unavailable

29

. O-RING

93210-46M16-00

$7.15

30

BOLT,WITH WASHER

90119-06890-00

$1.07

31

IMPELLER

68N-R1321-00-00

$757.56

32

SPACER

66V-R1348-10-00

$12.91

33

NOZZLE

66V-51318-00-94

Unavailable

34

. NIPPLE,HOSE

63M-51334-00-00

$21.95

35

HOSE (L310)

90445-16M09-00

Unavailable

36

BAND, HOSE 18

90601-118UF-00

$2.07

37

HOSE (L380)

90445-14M25-00

Unavailable

38

CLAMP

90465-10098-00

$1.68

39

PIN, DOWEL (614)

93606-12019-00

Unavailable

40

BOLT, WITH WASHER

90119-10807-00

$5.44

41

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

RING, TRIM

66G-51190-00-94

$139.38

45

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

46

WASHER,PLATE

90201-068M4-00

Unavailable

47

NUT

9538R-06700-00

$1.01

48

BOLT, WITH WASHER

90119-08852-00

$3.79

49

COLLAR(6R7)

90387-08M06-00

Unavailable

50

SENSOR SPEED

F0V-U8K31-01-00

Unavailable

51

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

52

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63

53

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

54

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

55

CLAMP

90600-925U9-00

Unavailable

56

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

57

BASE, CLAMP

90600-900U6-00

Unavailable

58

CLAMP(JN6)

90464-40825-00

Unavailable

59

CLAMP

90464-99801-00

$2.73

60

PACKING

F0V-U7525-01-00

Unavailable

61

PLATE 2

F0V-U273B-00-00

Unavailable

62

BOLT, WITH WASHER

90119-08829-00

$3.88

63

BOLT, WITH WASHER

90119-06896-00

$5.03

64

BOLT, WITH WASHER

90119-08829-00

$3.88

65

BOLT,WITH WASHER

90119-06890-00

$1.07

66

NUT, NYLON

9572R-10300-00

$3.37

67

WASHER, PLATE

90201-10801-00

$3.52

68

CLIP, NYLON 21

90600-921U1-00

Unavailable

69

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57
