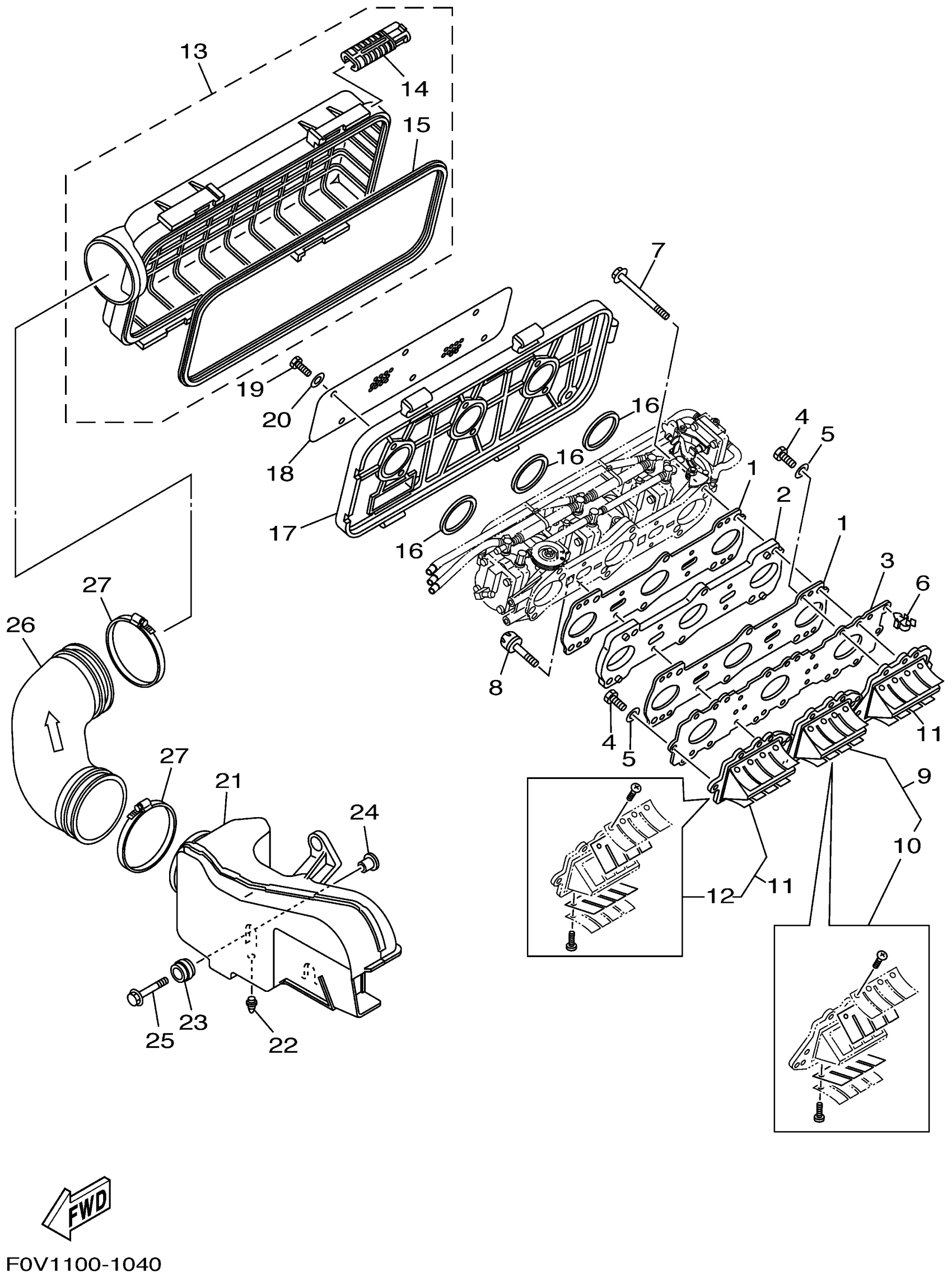

Yamaha XA1200AZ (XLT1200) F0V1 2001 INTAKE Diagram

#

Description
Price

1

. GASKET, MANIFOLD

68N-13556-00-00

$28.52

2

INSULATOR

68N-14271-00-00

$153.02

3

. PLATE, REED VALVE

66V-13624-00-00

Unavailable

4

BOLT(62Y)

97013-06025-00

$1.35

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

CLAMP

90464-14M55-00

$1.76

7

BOLT, FLANGE

90105-08041-00

Unavailable

8

BOLT

90109-06039-00

$4.09

9

REED VALVE ASSY

66V-13610-00-00

Unavailable

10

. REED SET

66V-W0004-00-00

$62.23

11

REED VALVE ASSY

66V-13620-00-00

$148.47

12

. REED SET

66V-W0004-00-00

$62.23

13

COVER SUB ASSY

66V-14480-01-00

Unavailable

14

. HOLDER

66V-13898-00-00

$8.51

15

. SEAL

66V-14457-00-00

Unavailable

16

. O-RING

66E-13473-00-00

$4.81

17

COVER, CARBURETOR 2

66V-14284-00-00

$51.50

18

ELEMENT, AIR CLEANER

66V-14451-00-00

$43.92

19

BOLT, HEXAGON

97013-06045-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$1.84

21

SILENCER ASSY, INTAKE

66V-14440-00-00

$59.08

22

. RUBBER, SEAL 2

66E-42717-00-00

Unavailable

23

GROMMET

90480-22M15-00

$10.18

24

COLLAR

90387-08M37-00

$9.81

25

BOLT, WITH WASHER

90119-08187-00

$3.17

26

PIPE

66V-14419-00-00

Unavailable

27

CLAMP, HOSE

90460-99M23-00

Unavailable
