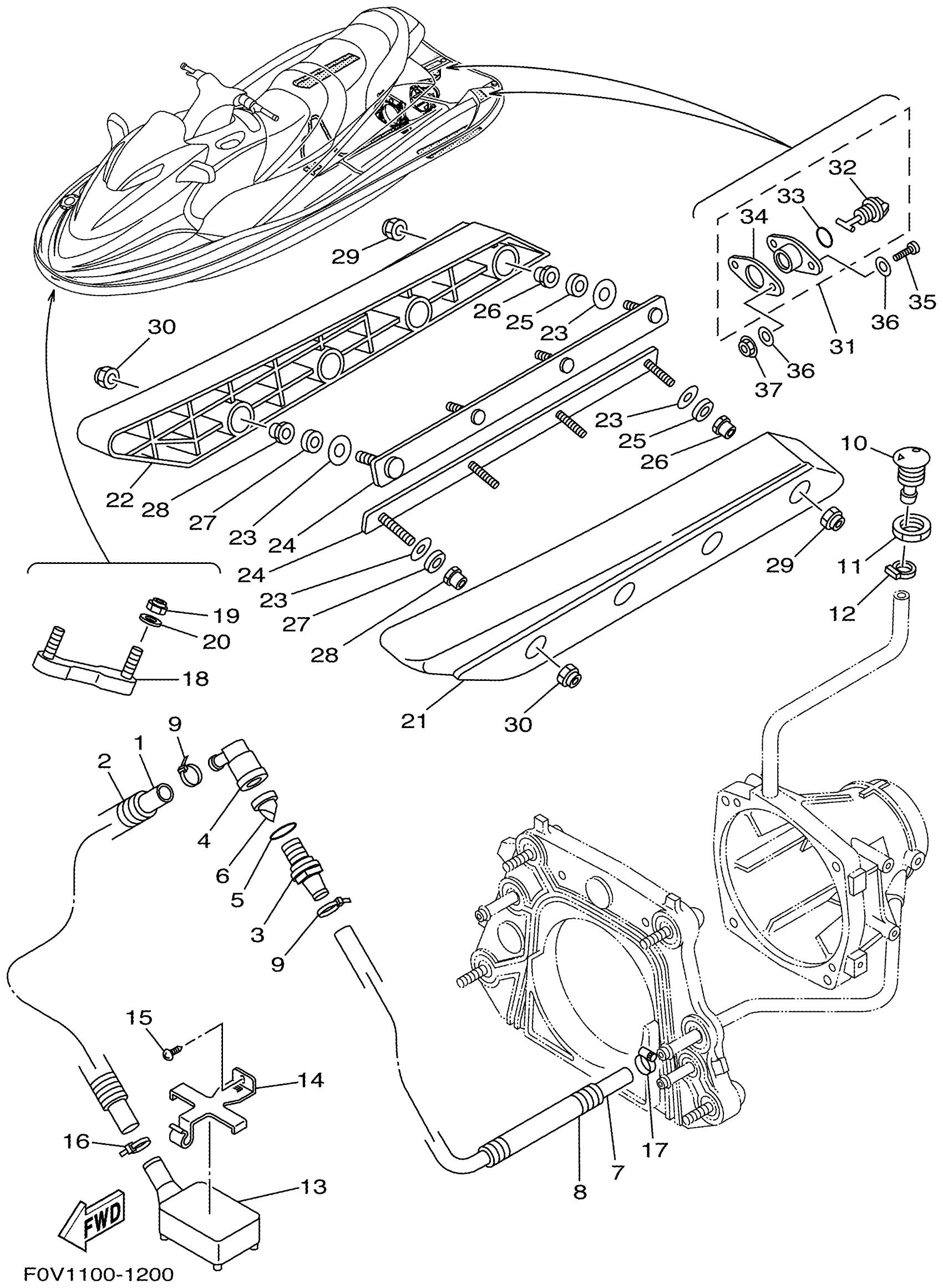

Yamaha XA1200AZ (XLT1200) F0V1 2001 HULL. DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

JOINT, HOSE 2

63M-51165-00-00

Unavailable

5

O-RING

93210-22ME5-00

$3.93

6

VALVE 1

63M-5316M-00-00

$25.49

7

HOSE (L650)

90445-198B9-00

Unavailable

8

HOSE(63M)

90446-27M55-00

$14.36

9

BAND

90601-200U1-00

$2.77

10

SPOUT

FN8-6269B-00-00

$22.49

11

NUT

EU0-61652-00-00

$11.48

12

BAND, HOSE 18

90601-118UF-00

$2.07

13

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

14

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

15

SCREW, TAPPING

9778R-50112-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

BAND, HOSE 18

90601-118UF-00

$2.07

18

BOWEYE 1

F0D-61624-01-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

$10.55

20

WASHER

9299R-08200-00

Unavailable

21

STABILIZER LH

F0D-U883N-20-00

Unavailable

22

STABILIZER, RH

F0D-U883P-10-00

Unavailable

23

PACKING,STABILIZER

F0D-U883U-00-00

Unavailable

24

BRACKET,STABILIZER

F0V-6883T-10-00

$53.99

25

WASHER, PLATE

90201-06017-00

Unavailable

26

NUT

90170-06003-00

Unavailable

27

WASHER, PLATE

90201-08015-00

Unavailable

28

NUT

90170-08008-00

$7.27

29

NUT, NYLON

9572R-06300-00

$2.80

30

NUT, NYLON (6J8)

95780-08300-00

$10.55

31

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

32

. PLUG, DRAIN

EU0-62282-00-00

$7.40

33

. O-RING

EU0-62283-00-00

$3.70

34

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

35

SCREW, PAN HEAD

9788R-05025-00

$2.52

36

WASHER

9299R-05200-00

$3.16

37

NUT, FLANGE

9572R-05300-00

$1.43
