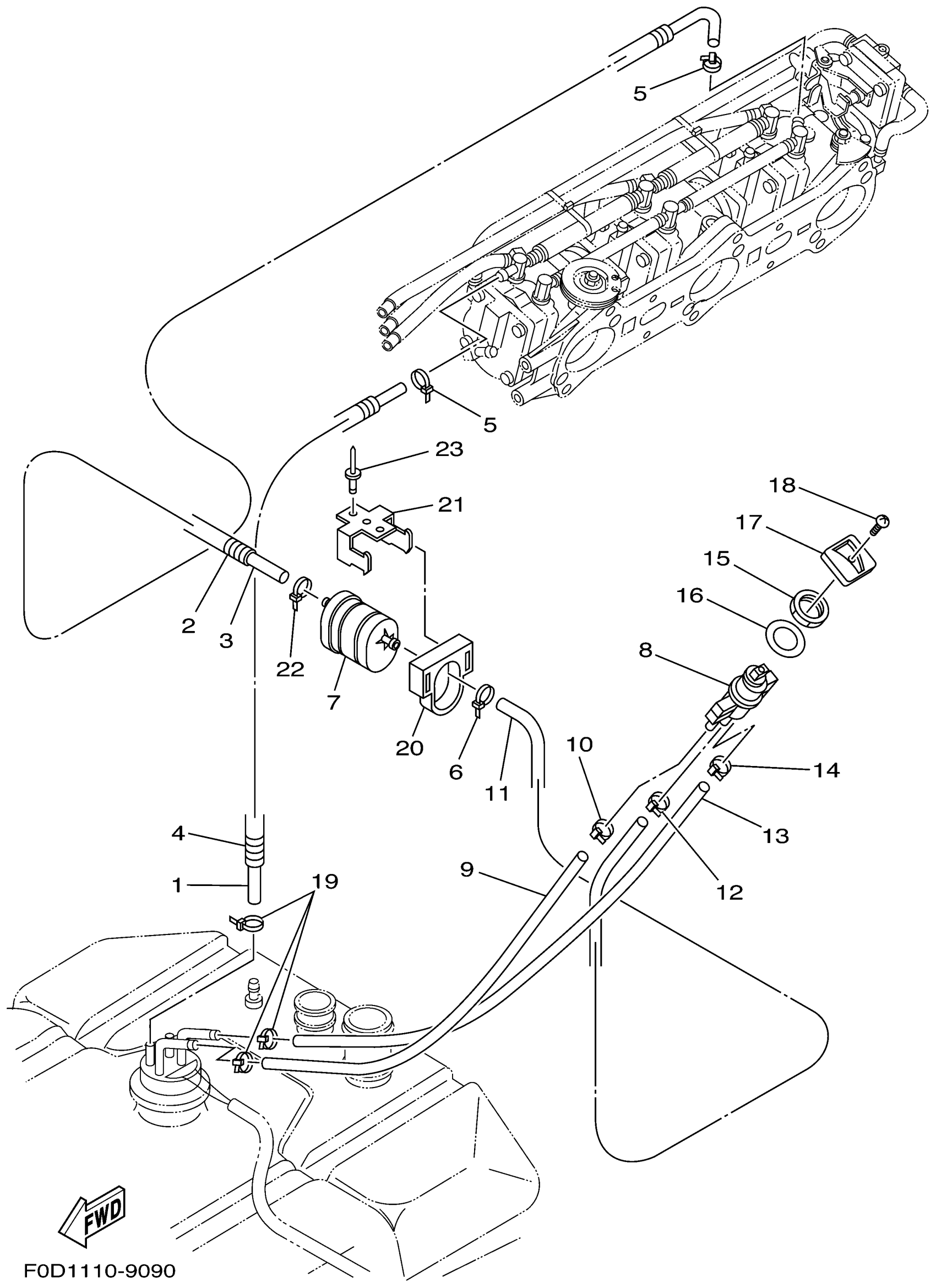

Yamaha XA1200AZ (XLT1200) F0V1 2001 FUEL Diagram

#

Description
Price

1

HOSE )L1400)

90445-11M59-00

$47.84

2

HOSE

90446-17MA5-00

Unavailable

3

HOSE )L1400)

90445-11M59-00

$47.84

4

HOSE, WITH SPRING

90447-13005-00

Unavailable

5

CLAMP

90465-10098-00

$2.24

6

CLAMP

90465-10098-00

$2.24

7

FILTER ASSY

66V-24560-01-00

$33.81

8

FUEL COCK ASSY 1

66V-24500-02-00

$55.14

9

HOSE

90445-11M71-00

Unavailable

10

CLAMP

90465-10098-00

$2.24

11

HOSE

90445-11M71-00

Unavailable

12

CLAMP

90465-10098-00

$2.24

13

HOSE

90445-11M71-00

Unavailable

14

CLAMP

90465-10098-00

$2.24

15

NUT, HEXAGON (1E6)

90170-22187-00

$9.40

16

WASHER, PLATE

90202-229U1-00

$15.07

17

LEVER, COCK

F0D-6777C-00-00

$11.77

18

SCREW, BIND

98980-04008-00

$3.13

19

CLAMP

90465-10098-00

$2.24

20

HOLDER, FILTER

EU0-U7817-00-00

$14.35

21

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.90

22

CLAMP

90465-10098-00

$2.24

23

RIVET (EU0)

90267-48938-00

$4.85
