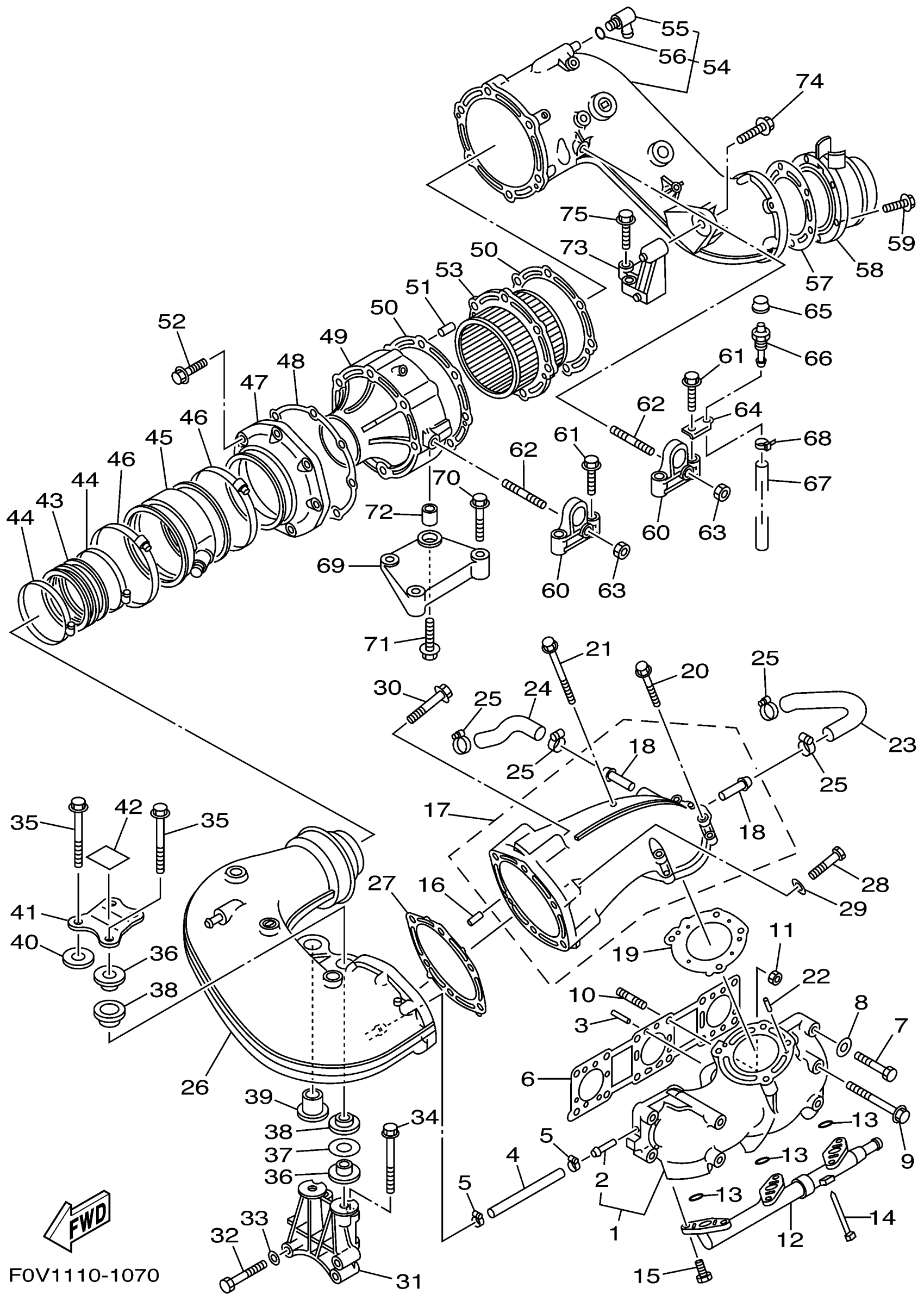

Yamaha XA1200AZ (XLT1200) F0V1 2001 EXHAUST 1 Diagram
#
1
MUFFLER 1
66V-14711-00-94
Unavailable
2
. NIPPLE
65U-14251-00-00
Unavailable
3
PIN, DOWEL (614)
93606-12019-00
$4.24
4
HOSE (L125)
90445-12M10-00
Unavailable
5
CLAMP, HOSE(61L)
90460-11M17-00
$20.99
6
GASKET, EXHAUST PIPE
66V-14613-01-00
Unavailable
7
BOLT, HEXAGON
97013-10055-00
Unavailable
8
WASHER, PLATE
92990-10600-00
Unavailable
9
BOLT, WITH WASHER
90119-10M11-00
Unavailable
10
BOLT, STUD
90116-10M68-00
$13.99
11
NUT
90179-10M36-00
Unavailable
12
PIPE, JOINT 2
66V-24377-00-00
Unavailable
13
O-RING(6R7)
93210-17MA4-00
$7.49
14
CLAMP(6E8)
90465-13M39-00
$5.40
15
BOLT
90109-06M99-00
$7.49
16
PIN, DOWEL (614)
93606-12019-00
$4.24
17
RING, JOINT
60T-14712-00-94
Unavailable
18
. NIPPLE
66E-51129-00-00
Unavailable
19
GASKET, MUFFLER DAMPER 1
66V-14739-01-00
Unavailable
20
BOLT, WITH WASHER
90119-10M20-00
Unavailable
21
BOLT, WITH WASHER
90119-10M19-00
Unavailable
22
PIN, DOWEL (614)
93606-12019-00
$4.24
23
HOSE 1
66V-12576-00-00
Unavailable
24
HOSE 2
66V-12577-00-00
Unavailable
25
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
26
MUFFLER 2
66V-14721-01-94
Unavailable
27
GASKET, MUFFLER DAMPER 2
66V-14749-01-00
Unavailable
28
BOLT
97013-10065-00
Unavailable
29
WASHER, PLATE
92990-10600-00
Unavailable
30
BOLT, WITH WASHER(63M)
97513-10585-00
Unavailable
31
STAY, MUFFLER 1
66V-14771-01-94
Unavailable
32
BOLT, WITH WASHER
97513-10560-00
Unavailable
33
WASHER, PLATE
92990-10600-00
Unavailable
34
BOLT, WITH WASHER
97513-10590-00
Unavailable
35
BOLT, WITH WASHER
90119-10M23-00
Unavailable
36
COLLAR
90387-12M05-00
Unavailable
37
WASHER, PLATE
90201-28008-00
Unavailable
38
GROMMET
90480-30M78-00
Unavailable
39
COLLAR
66V-14779-00-00
Unavailable
40
PLATE 2
66V-1477L-00-00
Unavailable
41
BRACKET, CYLINDER HEAD COVER
66V-11152-00-00
Unavailable
42
LABEL, CAUTION
66V-14488-00-00
Unavailable
43
JOINT, EXHAUST 2
66V-14625-00-00
Unavailable
44
HOSE CLAMP ASSY
90450-90M10-00
Unavailable
45
JOINT, EXHAUST 1
66V-14615-02-00
Unavailable
46
CLAMP, HOSE (707)
90460-99116-00
Unavailable
47
OUTER COVER, EXHAUST
68N-41113-00-94
Unavailable
48
GASKET, EXHAUST OUTER COVER
66V-41114-01-00
Unavailable
49
INNER COVER, EXHAUST
68N-41111-00-94
Unavailable
50
GASKET, EXHAUST OUTER COVER
66V-41124-01-00
Unavailable
51
PIN,DOWEL(296)
93606-14081-00
Unavailable
52
BOLT, WITH WASHER
90119-08M63-00
Unavailable
53
CATALYST ASSY.
66V-14740-03-00
Unavailable
54
OUTER COVER, EXHAUST
68N-41123-00-94
Unavailable
55
. PIPE 1
67X-12481-00-00
Unavailable
56
. O-RING
93210-17001-00
Unavailable
57
. GASKET, EXHAUST PIPE
68N-14623-00-00
Unavailable
58
PIPE, TAIL
68N-14784-00-94
Unavailable
59
BOLT (6F5)
90105-08M22-00
Unavailable
60
STAY, MUFFLER 1
66E-14771-01-00
Unavailable
61
BOLT, WITH WASHER
90119-10M18-00
Unavailable
62
BOLT, STUD
90116-10M66-00
Unavailable
63
NUT
90179-10M35-00
Unavailable
64
PLATE 1
66V-1477K-00-00
Unavailable
65
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
66
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
67
HOSE, DELIVERY
6AP-5110K-00-00
Unavailable
68
CLAMP
90465-10098-00
Unavailable
69
STAY 5
66V-14782-00-94
Unavailable
70
BOLT, WASHER BASED
90105-10M87-00
Unavailable
71
BOLT, WITH WASHER
90119-10M17-00
Unavailable
72
PIN, DOWEL(4JT)
99590-14016-00
Unavailable
73
STAY, MUFFLER
68N-14791-00-94
Unavailable
74
BOLT, WITH WASHER
90119-10M00-00
Unavailable
75
BOLT, WITH WASHER
90119-10031-00
Unavailable
