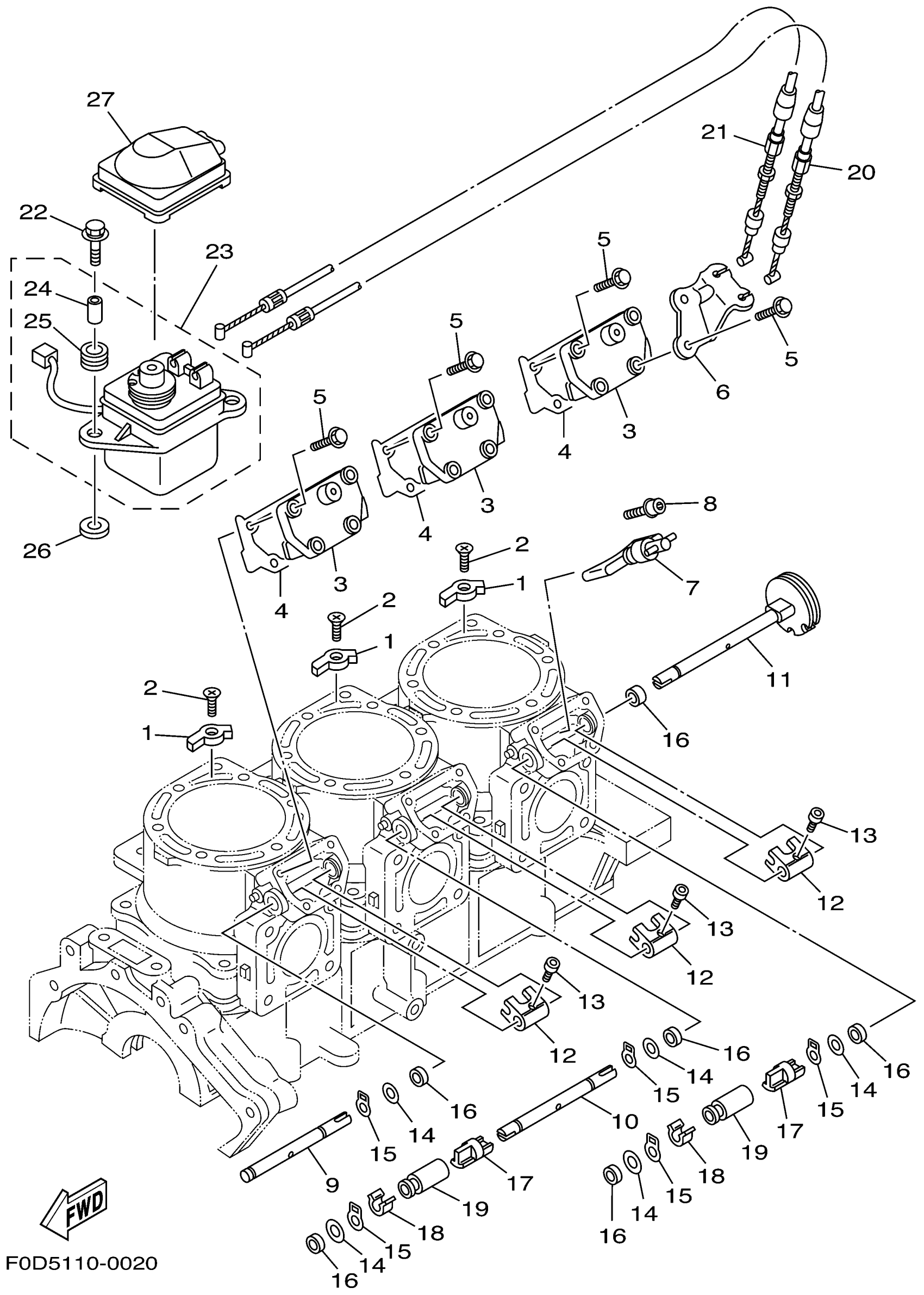

Yamaha XA1200AZ (XLT1200) F0V1 2001 CYLINDER. CRANKCASE 2 Diagram

#

Description
Price

1

ANODE

66E-11325-00-00

Unavailable

2

SCREW, FLAT HEAD

98780-05020-00

Unavailable

3

COVER

66E-1131M-01-00

Unavailable

4

GASKET, COVER

66E-1131B-02-00

Unavailable

5

BOLT, WITH WASHER(61B)

97513-06525-00

$1.49

6

BRACKET 1

66E-11998-00-00

Unavailable

7

VALVE ASSY.

66E-1131S-10-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-05016-00

Unavailable

9

SHAFT 1

66E-1131V-00-00

Unavailable

10

SHAFT 3

66V-11333-00-00

Unavailable

11

PULLEY, SHAFT

66E-1132C-00-00

Unavailable

12

LEVER, LINK

60T-11832-00-00

Unavailable

13

BOLT,SOCKET

91317-04008-00

$8.49

14

WASHER, PLATE

90201-08M09-00

Unavailable

15

CIRCLIP

93410-08M12-00

$4.29

16

OIL SEAL

93109-08M07-00

Unavailable

17

JOINT 1

66E-1131H-00-00

Unavailable

18

JOINT 2

66E-1131J-10-00

Unavailable

19

COVER, JOINT

66E-1131C-10-00

Unavailable

20

CABLE, PULLEY 1

66V-1133E-00-00

Unavailable

21

CABLE, PULLEY 1

66V-1133E-00-00

Unavailable

22

BOLT, WITH WASHER

90119-069UX-00

Unavailable

23

SERVO MOTOR ASSY

66V-85820-00-00

Unavailable

24

COLLAR (1T2)

90387-07598-00

Unavailable

25

GROMMET 839774310000

90480-14023-00

Unavailable

26

WASHER, PLATE

90201-06M04-00

Unavailable

27

COVER, WIRE

66E-85825-00-00

Unavailable
