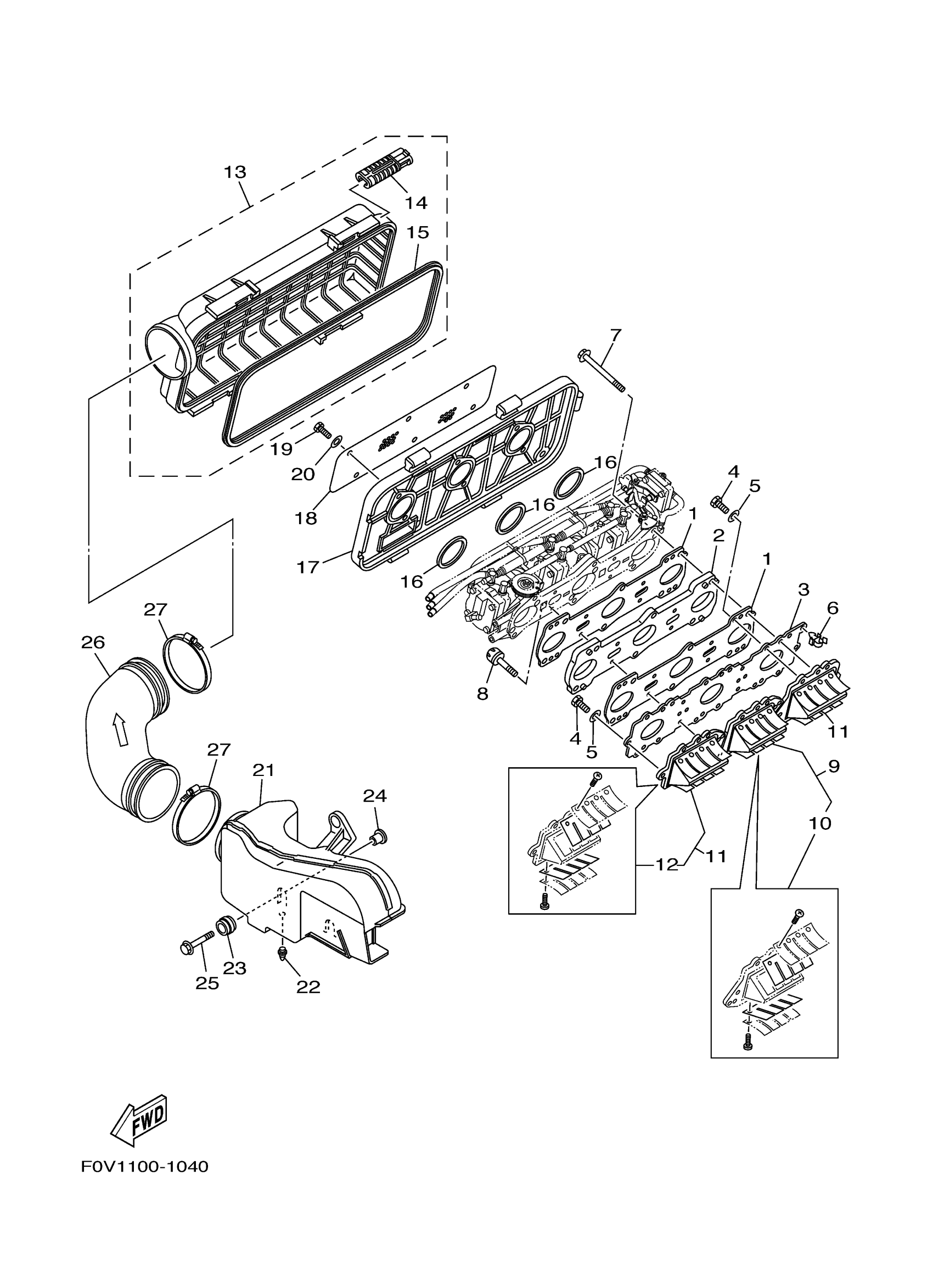

Yamaha XA1200AD (WaveRunner XLT1200) F0VC 2005 INTAKE Diagram
#
Description
Price
1
. GASKET, MANIFOLD
68N-13556-00-00
Unavailable
2
INSULATOR
68N-14271-00-00
Unavailable
3
. PLATE, REED VALVE
66V-13624-00-00
Unavailable
4
BOLT(62Y)
97013-06025-00
$1.06
5
WASHER, PLAIN (646)
92990-06600-00
$2.80
6
CLAMP
90464-14M55-00
$2.07
7
BOLT, FLANGE
90105-08041-00
Unavailable
8
BOLT, HEXAGON SOCKET HEAD
90110-06068-00
Unavailable
9
REED VALVE ASSY
66V-13610-00-00
Unavailable
10
. REED SET
66V-W0004-00-00
Unavailable
11
REED VALVE ASSY
66V-13620-00-00
Unavailable
12
. REED SET
66V-W0004-00-00
Unavailable
13
COVER SUB ASSY
66V-14480-01-00
Unavailable
14
. HOLDER
66V-13898-00-00
Unavailable
15
. SEAL
66V-14457-00-00
Unavailable
16
. O-RING
66E-13473-00-00
Unavailable
17
COVER, CARBURETOR 2
66V-14284-00-00
Unavailable
18
ELEMENT, AIR CLEANER
66V-14451-00-00
Unavailable
19
BOLT, HEXAGON
97013-06045-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
$2.80
21
SILENCER ASSY, INTAKE
66V-14440-00-00
Unavailable
22
. RUBBER, SEAL 2
66E-42717-00-00
Unavailable
23
GROMMET
90480-22M15-00
Unavailable
24
COLLAR
90387-08M37-00
Unavailable
25
BOLT, WITH WASHER
90119-08187-00
Unavailable
26
PIPE
66V-14419-00-00
Unavailable
27
CLAMP, HOSE
90460-99M23-00
Unavailable
