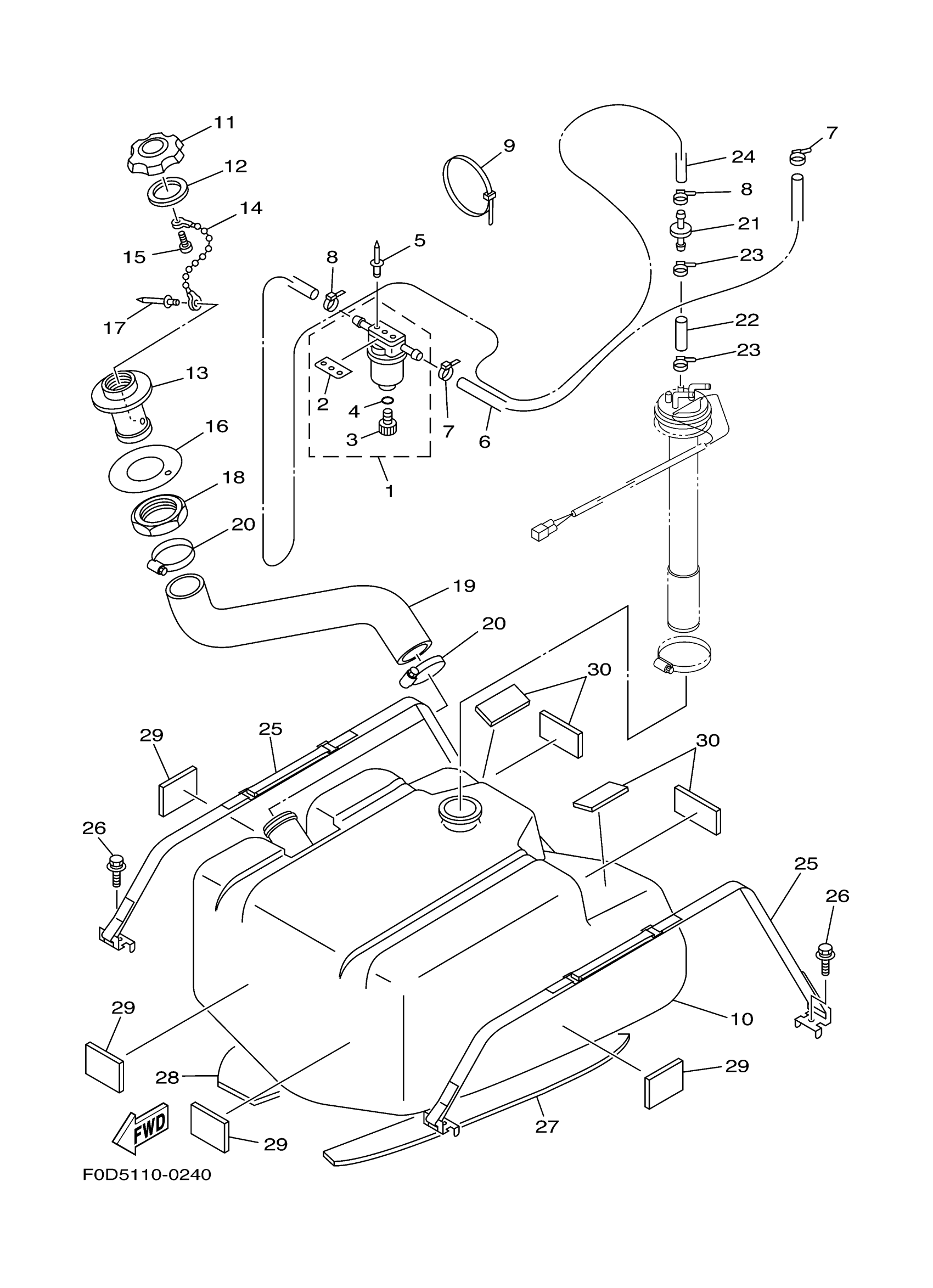

Yamaha XA1200AD (WaveRunner XLT1200) F0VC 2005 FUEL TANK Diagram
#
1
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
2
. PLATE, FILTER
EW2-62142-00-00
Unavailable
3
. PLUG, DRAIN
70R-24543-00-00
Unavailable
4
. O-RING
70R-24489-00-00
Unavailable
5
RIVET, BLIND
90267-489U2-00
Unavailable
6
HOSE, AIR VENT
F0D-U785G-11-00
Unavailable
7
CLAMP
90465-10098-00
Unavailable
8
CLAMP
90465-10098-00
Unavailable
9
CLAMP
90464-99804-00
Unavailable
10
TANK, FUEL
F0D-U7711-00-00
Unavailable
11
CAP, FUEL FILLER
GP7-U7831-01-00
Unavailable
12
PACKING
GP7-U7832-01-00
Unavailable
13
SOCKET
GP7-U7833-00-00
Unavailable
14
CHAIN BALL
GP7-U7835-00-00
Unavailable
15
SCREW, TRUSS HEAD TAPPING
90169-049U1-00
Unavailable
16
PACKING FUEL FILLER
GP7-U7834-00-00
Unavailable
17
RIVET, BLIND
90267-329UR-00
Unavailable
18
NUT, FUEL FILLER
GP7-U783F-00-00
Unavailable
19
HOSE
F0D-U7844-10-00
Unavailable
20
BAND, HOSE 55
90601-155U4-00
Unavailable
21
CHECK VALVE
EU0-67767-31-00
Unavailable
22
HOSE, AIR VENT 3
GP7-U785H-00-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
HOSE, AIR VENT
F0D-U7856-11-00
Unavailable
25
BELT, TANK 1
GH3-67743-01-00
Unavailable
26
BOLT, WITH WASHER
90119-08800-00
Unavailable
27
MAT 1
F0D-U759B-00-00
Unavailable
28
MAT 1
F0D-U759B-10-00
Unavailable
29
MAT 2
F0D-U759C-00-00
Unavailable
30
MAT 2
GJ1-U759C-00-00
Unavailable
