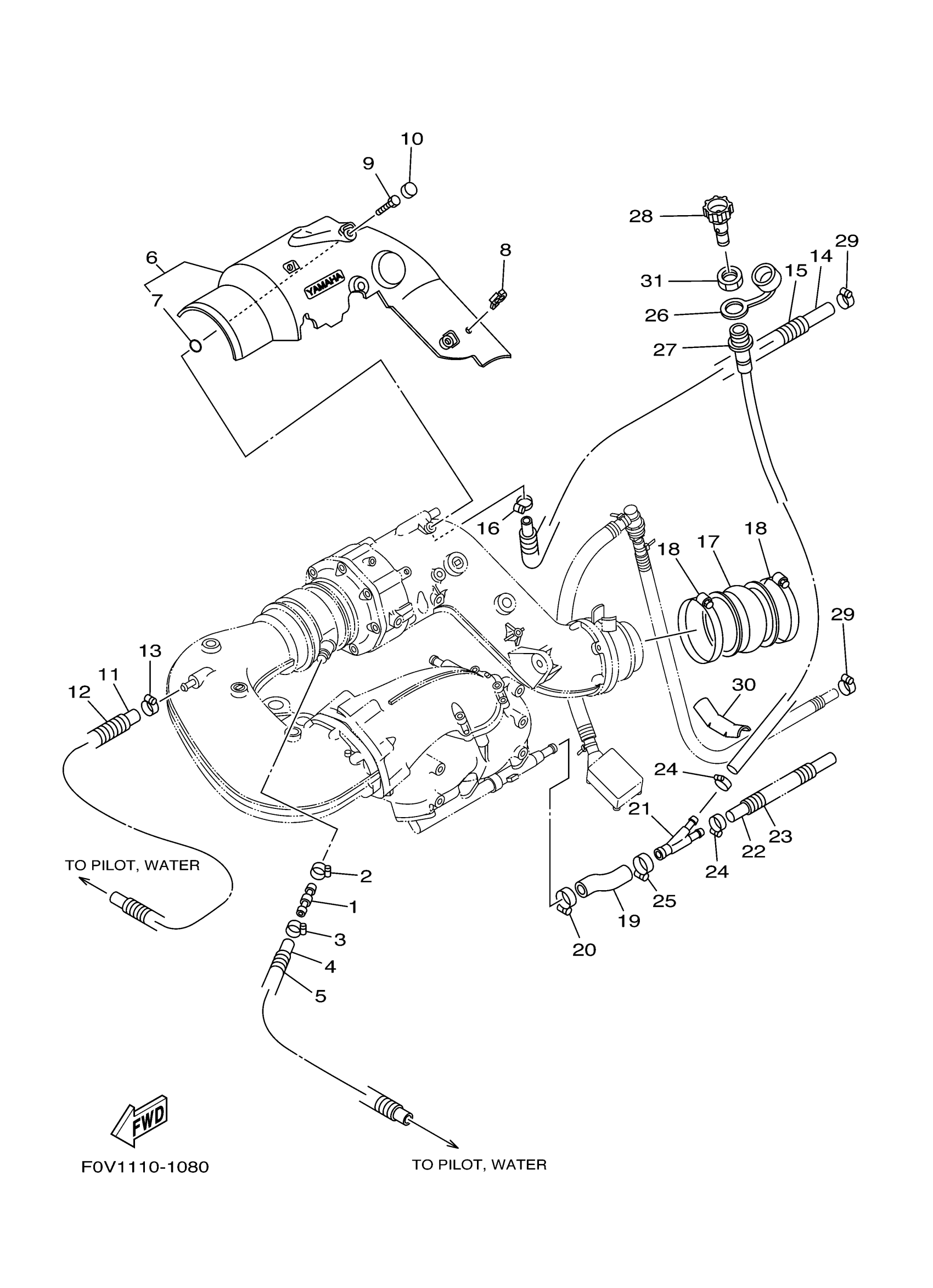

Yamaha XA1200AD (WaveRunner XLT1200) F0VC 2005 EXHAUST 2 Diagram

#

Description
Price

1

JOINT, HOSE 4

60E-12594-00-00

$4.09

2

HOSE CLAMP ASSY

90450-18M09-00

$9.82

3

HOSE CLAMP ASSY(62T)

90450-14M05-00

$14.92

4

HOSE (L1300)

90445-14M22-00

Unavailable

5

HOSE (L700)

90446-20ME4-00

Unavailable

6

PROTECTOR, MUFFLER 1

66V-14718-00-00

Unavailable

7

. GASKET

90430-09M10-00

Unavailable

8

CLAMP

90464-07M56-00

$1.80

9

BOLT

90109-06M99-00

$4.66

10

COVER

66V-15779-00-00

$2.80

11

HOSE (L1300)

90445-14M22-00

Unavailable

12

HOSE(65R)

90446-20M70-00

$9.41

13

HOSE CLAMP ASSY

90450-18M09-00

$9.82

14

HOSE (L900)

90445-21002-00

Unavailable

15

HOSE (L800)

90446-27M95-00

$11.35

16

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

17

PIPE, OUTLET

66V-14752-00-00

$203.02

18

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

19

HOSE 4

66V-12579-00-00

$54.53

20

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

21

JOINT, HOSE 1

66V-12581-00-00

Unavailable

22

HOSE (L660)

90445-18006-00

$50.99

23

HOSE

90446-24M81-00

Unavailable

24

HOSE CLAMP ASSY

90450-18M09-00

$9.82

25

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

26

CAP,1

682-84385-01-00

$9.08

27

JOINT ASSY

64T-12580-00-00

$113.62

28

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

29

BAND, HOSE 18

90601-118UF-00

$2.07

30

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

31

NUT

EU0-61652-00-00

$11.48
