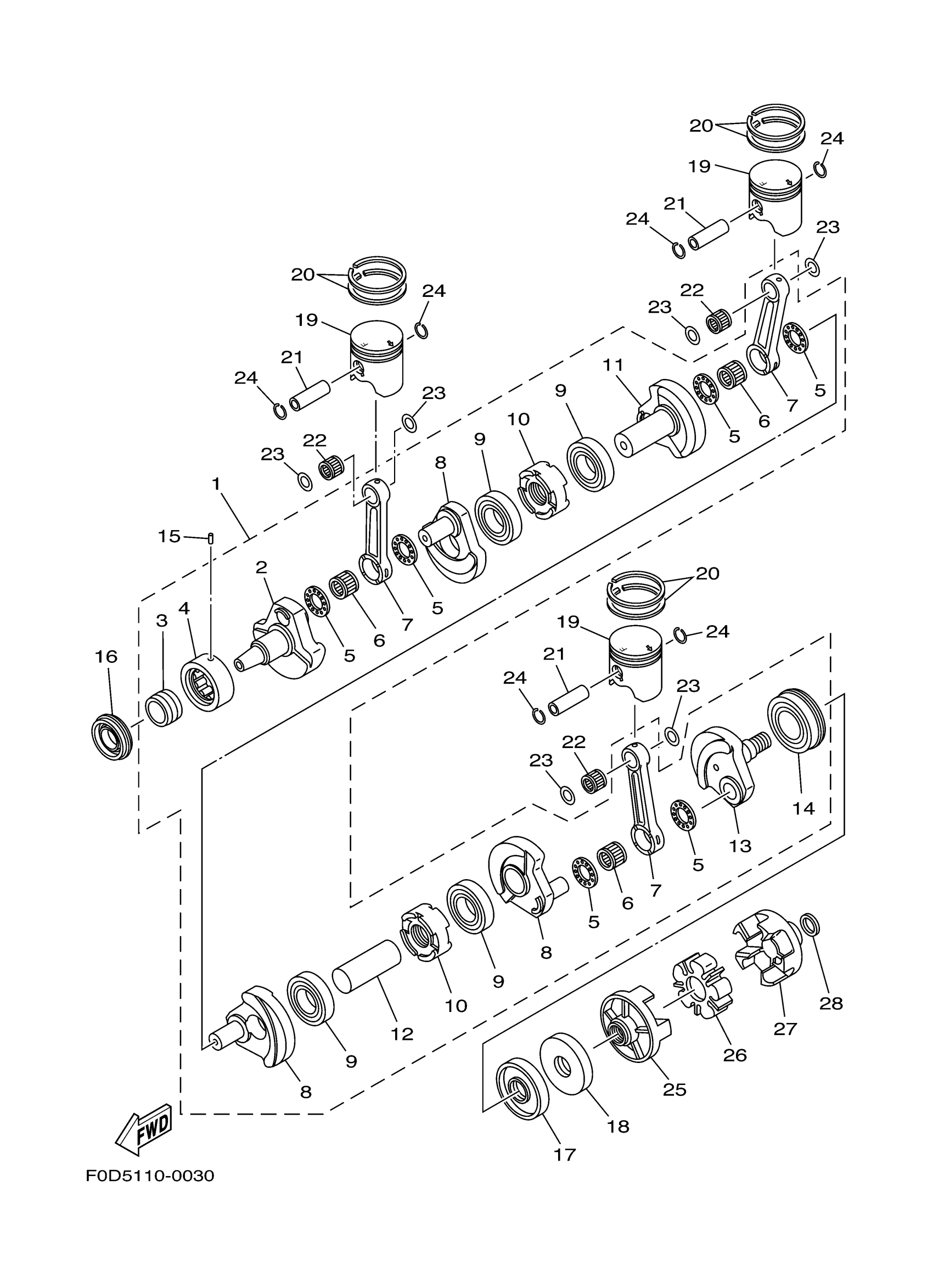

Yamaha XA1200AD (WaveRunner XLT1200) F0VC 2005 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66V-11400-00-00

$1,946.95

2

. CRANK 1

66E-11412-00-00

Unavailable

3

. COLLAR

90387-35M01-00

$93.92

4

. BEARING

93390-000U6-00

Unavailable

5

. WASHER, CRANK PIN

66E-11685-00-00

$13.99

6

. BEARING

93310-627U6-00

$60.38

7

. ROD, CONNECTING

66E-11651-00-00

$99.98

8

. CRANK 2

66E-11422-00-00

$210.59

9

. BEARING

93306-208U1-00

$69.68

10

. SEAL, LABYRINTH 1

66E-11515-00-00

Unavailable

11

. CRANK 5

66V-11452-00-00

$293.92

12

. CRANK 3

66E-11431-00-00

$143.92

13

. CRANK 4

66E-11442-00-00

$337.86

14

. BEARING

93306-308U1-00

$104.53

15

PIN (2H7)

93603-10049-00

Unavailable

16

OIL SEAL

93103-35011-00

$36.31

17

OIL SEAL

93101-34001-00

$21.10

18

OIL SEAL

93101-34002-00

$21.10

19

PISTON (STD)

66V-11631-00-A0

$157.56

19

PISTON (STD)

66V-11631-00-B0

$153.02

19

PISTON (STD)

66V-11631-00-C0

$153.02

19

PISTON (STD)

66V-11631-00-D0

Unavailable

20

PISTON RING SET (STD)

66V-11603-00-00

$58.16

21

PIN, PISTON

60T-11633-00-00

$34.49

22

BEARING

93310-422U2-00

$27.41

23

WASHER, PLATE

90201-22M04-00

Unavailable

24

CLIP, PISTON PIN

66E-11634-00-00

$0.92

25

FLANGE, COUPLING

66E-45813-10-94

$107.56

26

RUBBER SHAFT COUPLING

66E-4581J-00-00

$58.49

27

FLANGE, COUPLING 1

68N-45593-00-94

$75.74

28

WASHER, PLATE

90201-24800-00

$1.37
