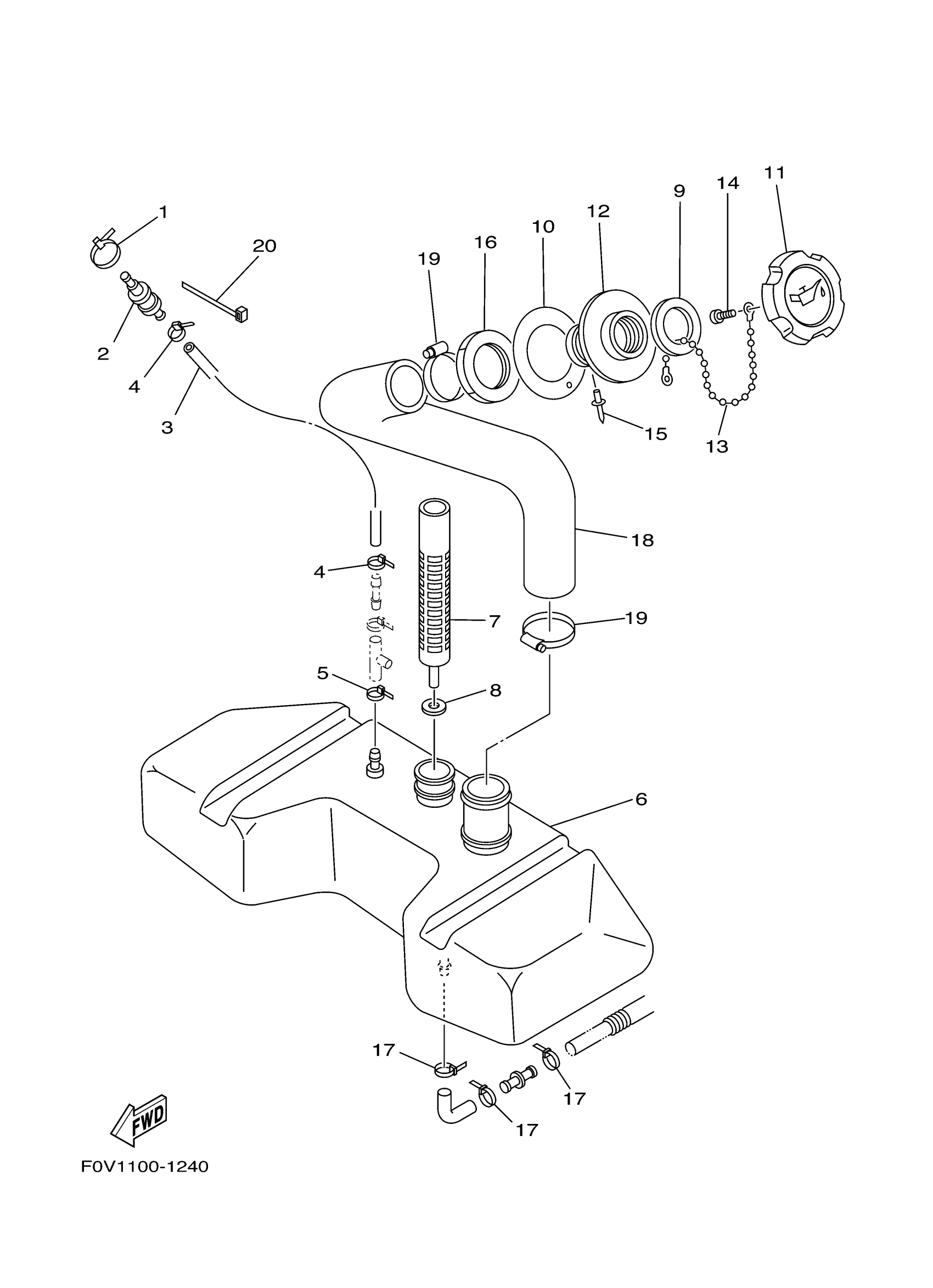

Yamaha XA1200AC (XLT1200) F0V9 2004 OIL TANK Diagram

#

Description
Price

1

CLAMP

90464-32801-00

Unavailable

2

. ROLL OVER VALVE

FJ0-67766-00-00

Unavailable

3

HOSE, AIR VENT 3

GJ3-U7856-20-00

Unavailable

4

CLAMP

90465-10098-00

Unavailable

5

CLAMP

90465-10098-00

Unavailable

6

TANK, OIL

F0D-U775B-02-00

Unavailable

7

FILTER

F0D-6775C-01-00

Unavailable

8

PACKING (T:10MM)

F0D-6775E-01-00

Unavailable

9

PACKING, OIL CAP

GJ3-U778C-00-00

Unavailable

10

PACKING,OIL FILLER

F0X-U778E-01-00

Unavailable

11

CAP, OIL FILLER

GJ3-U778B-00-00

Unavailable

12

SOCKET, OIL FILLER

F0X-U778D-00-00

Unavailable

13

CHAIN BALL

EU0-U7835-00-00

Unavailable

14

SCREW,TAPPING (EU0)

97780-40110-00

Unavailable

15

. RIVET, BLIND

90267-40935-00

Unavailable

16

NUT, OIL FILLER

F0X-U778H-01-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

HOSE,OIL FILLER

F0D-U776C-10-00

Unavailable

19

BAND, HOSE 42

90601-142U6-00

Unavailable

20

CLAMP

90464-32801-00

Unavailable
