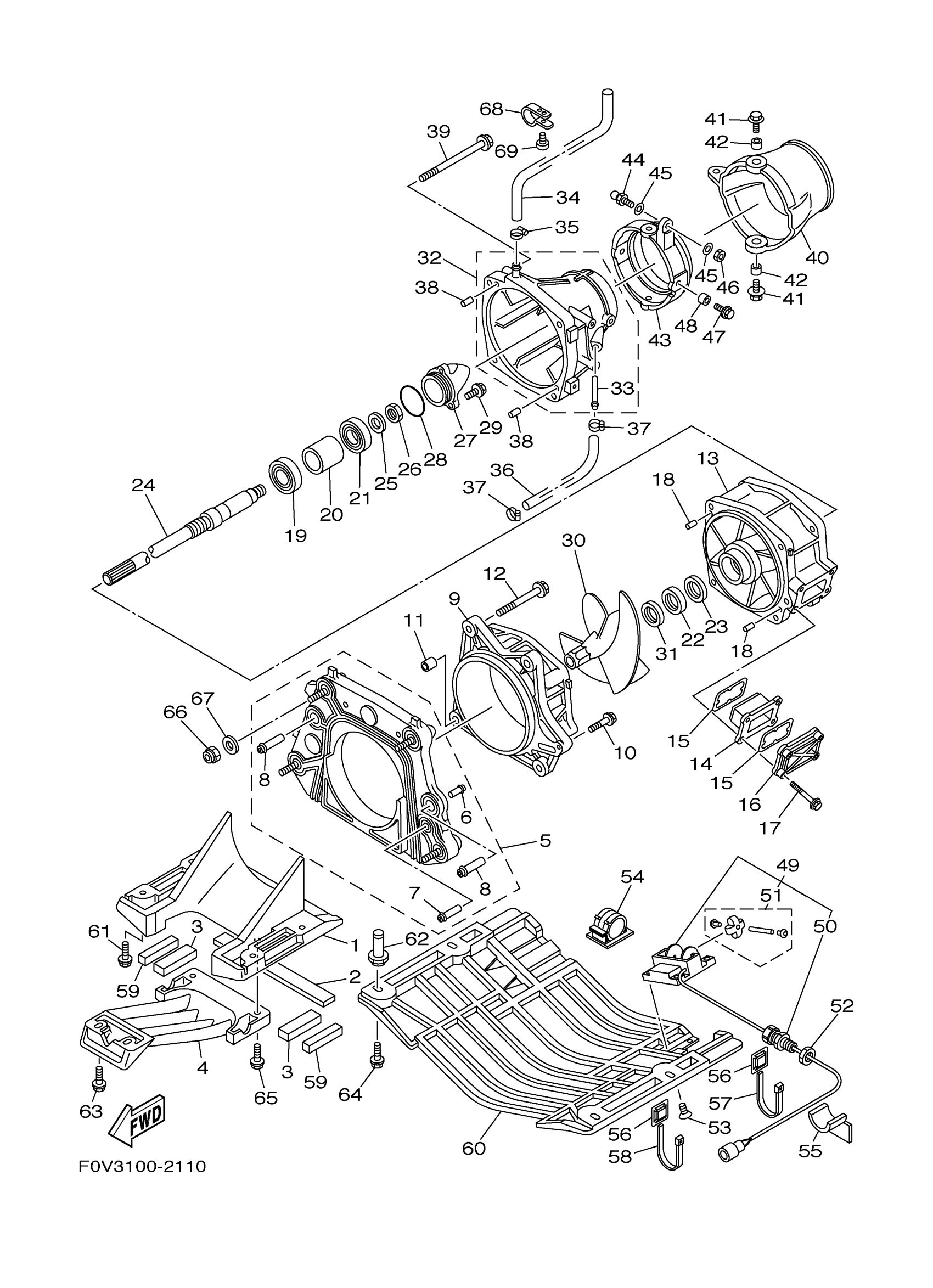

Yamaha XA1200AC (XLT1200) F0V9 2004 JET UNIT 1 Diagram
#
1
DUCT, INTAKE
66V-51311-00-94
Unavailable
2
FELT, PACKING
66V-R1367-00-00
Unavailable
3
FELT, PACKING 2
66V-R1368-00-00
Unavailable
4
SCREEN, INTAKE
66V-51333-00-94
Unavailable
5
PLATE, TRANSOM
66V-G5831-02-00
Unavailable
6
. NIPPLE
65A-R1129-00-00
Unavailable
7
. NIPPLE
66V-51129-01-00
Unavailable
8
. NIPPLE
66V-51129-10-00
Unavailable
9
HOUSING, IMPELLER
6CR-R1312-00-00
Unavailable
10
BOLT, WITH WASHER
90119-06894-00
Unavailable
11
PIN, DOWEL(4JT)
99590-14016-00
$4.24
12
BOLT, WITH WASHER
90119-10811-00
Unavailable
13
DUCT, IMPELLER
66V-51315-01-00
Unavailable
14
FILTER
66V-46882-00-00
Unavailable
15
. O-RING
66V-42414-00-00
Unavailable
16
COVER, WATER INLET 1
66V-45214-00-00
Unavailable
17
BOLT,WITH WASHER
90119-06898-00
Unavailable
18
PIN, DOWEL (614)
93606-12019-00
Unavailable
19
BEARING (6K8)
93306-205U1-00
Unavailable
20
SPACER 1
65V-45538-00-00
Unavailable
21
BEARING
93306-304XB-00
Unavailable
22
OIL SEAL
93101-28M66-00
Unavailable
23
OIL SEAL
93101-28002-00
Unavailable
24
SHAFT, DRIVE
68Y-G5511-00-00
Unavailable
25
WASHER
9299R-16600-00
Unavailable
26
NUT
95317-16700-00
Unavailable
27
CAP KIT
65A-R1326-10-KT
Unavailable
28
. O-RING
93210-46M16-00
Unavailable
29
BOLT,WITH WASHER
90119-06890-00
Unavailable
30
IMPELLER
68N-R1321-00-00
Unavailable
31
SPACER
66V-R1348-10-00
Unavailable
32
NOZZLE
66V-51318-00-94
Unavailable
33
. NIPPLE,HOSE
63M-51334-00-00
Unavailable
34
HOSE (L310)
90445-16M09-00
Unavailable
35
BAND, HOSE 18
90601-118UF-00
Unavailable
36
HOSE (L380)
90445-14M25-00
Unavailable
37
CLAMP
90465-10098-00
Unavailable
38
PIN, DOWEL (614)
93606-12019-00
Unavailable
39
BOLT, WITH WASHER
90119-10807-00
Unavailable
40
NOZZLE, DEFLECTOR
66V-R1313-01-00
Unavailable
41
BOLT, WITH WASHER
90119-08852-00
Unavailable
42
COLLAR(6R7)
90387-08M06-00
Unavailable
43
RING, TRIM
66G-51190-00-94
Unavailable
44
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
45
WASHER,PLATE
90201-068M4-00
Unavailable
46
NUT
9538R-06700-00
Unavailable
47
BOLT, WITH WASHER
90119-08852-00
Unavailable
48
COLLAR(6R7)
90387-08M06-00
Unavailable
49
SENSOR SPEED
F0V-U8K31-01-00
Unavailable
50
CONNECTOR, CABLE
EU0-67267-00-00
Unavailable
51
REPAIR KIT, SPEED SENSOR
GJ1-U835D-00-00
Unavailable
52
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
53
SCREW, FLAT HEAD
9878R-05512-00
Unavailable
54
CLAMP
90600-925U9-00
Unavailable
55
PACKING, HOSE 2
GJ1-U7578-12-00
Unavailable
56
BASE, CLAMP
90600-900U6-00
Unavailable
57
CLAMP(JN6)
90464-40825-00
Unavailable
58
CLAMP
90464-99801-00
Unavailable
59
PACKING
F0V-U7525-01-00
Unavailable
60
PLATE 2
F0V-U273B-00-00
Unavailable
61
BOLT, WITH WASHER
90119-08829-00
Unavailable
62
NUT
90179-08815-00
Unavailable
63
BOLT, WITH WASHER
90119-06896-00
Unavailable
64
BOLT, WITH WASHER
90119-08829-00
Unavailable
65
BOLT,WITH WASHER
90119-06890-00
Unavailable
66
NUT, NYLON
9572R-10300-00
Unavailable
67
WASHER, PLATE
90201-10801-00
Unavailable
68
CLIP, NYLON 21
90600-921U1-00
Unavailable
69
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
