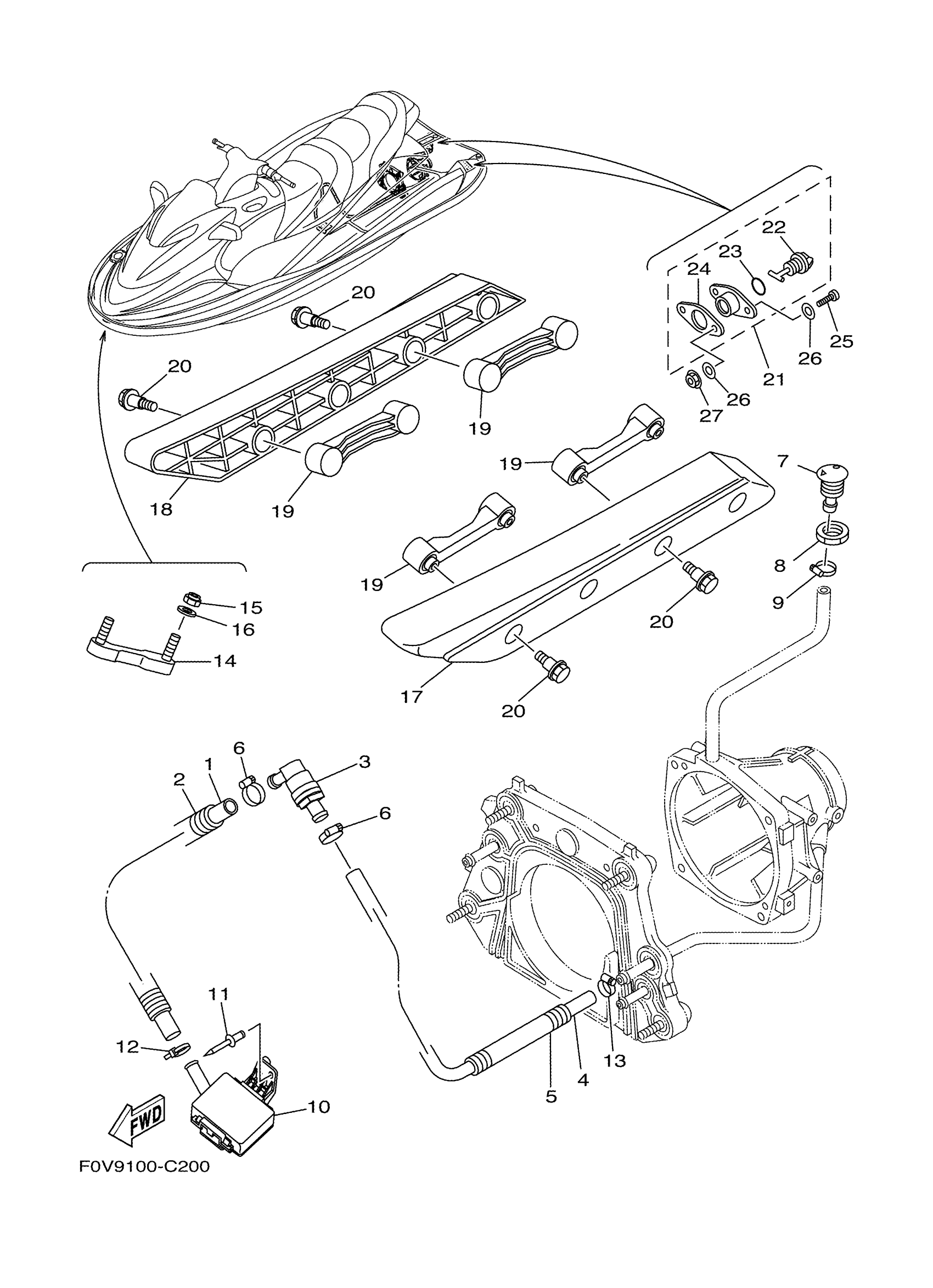

Yamaha XA1200AC (XLT1200) F0V9 2004 HULL DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L650)

90445-198B9-00

Unavailable

5

HOSE(63M)

90446-27M55-00

$14.36

6

BAND, HOSE 18

90601-118UF-00

$2.07

7

SPOUT

FN8-6269B-00-00

$22.49

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

RIVET, BLIND

90267-489U8-00

$0.99

12

CLAMP

90465-10098-00

$1.68

13

BAND, HOSE 18

90601-118UF-00

$2.07

14

BOWEYE 1

F0D-61624-01-00

Unavailable

15

NUT, NYLON (6J8)

95780-08300-00

$10.55

16

WASHER

9299R-08200-00

Unavailable

17

STABILIZER LH

F0D-U883N-20-00

Unavailable

18

STABILIZER RH

F0D-U883P-20-00

Unavailable

19

BRACKET,STABILIZER

F1F-U883T-02-00

Unavailable

20

BOLT

F0V-U2624-10-00

Unavailable

21

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

22

. PLUG, DRAIN

EU0-62282-00-00

$7.40

23

. O-RING

EU0-62283-00-00

$3.70

24

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

25

SCREW, PAN HEAD

9788R-05025-00

$2.52

26

WASHER

9299R-05200-00

$3.16

27

NUT, FLANGE

9572R-05300-00

$1.43
