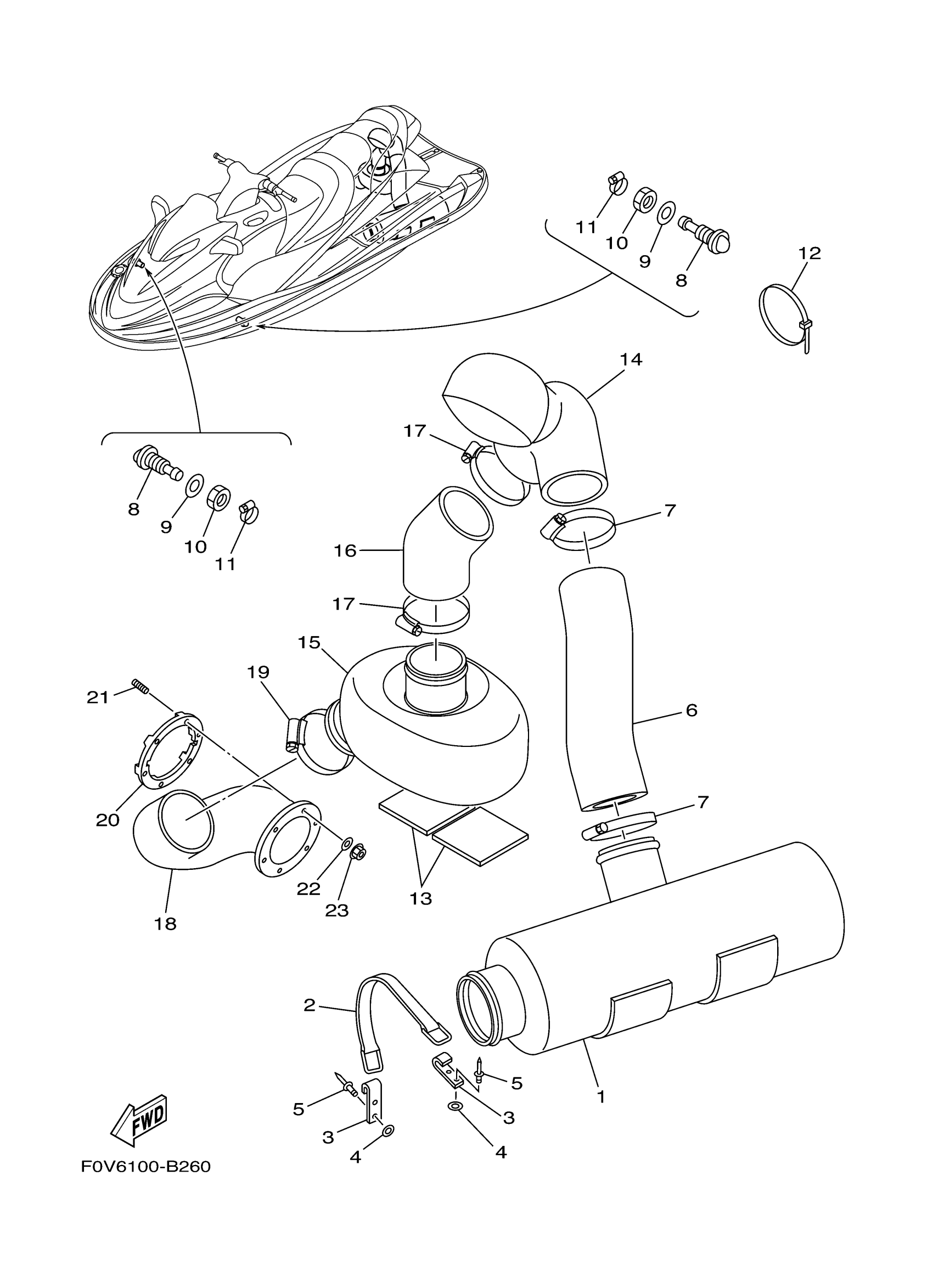

Yamaha XA1200AC (XLT1200) F0V9 2004 EXHAUST 3 Diagram
#
Description
Price
1
WATER LOCK COMP.
F0D-67550-03-00
Unavailable
2
BAND, WATER LOCK
GA7-6756E-00-00
Unavailable
3
HOOK A
GA7-65772-00-00
Unavailable
4
WASHER
9299R-05200-00
Unavailable
5
RIVET, BLIND
90267-489U7-00
Unavailable
6
HOSE, EXHAUST 1
F0D-6758B-00-00
Unavailable
7
BAND, HOSE 95
90601-195UD-00
Unavailable
8
PILOT, WATER
F0P-6753B-00-00
Unavailable
9
GASKET(GJ1)
90430-16910-00
Unavailable
10
NUT
F0X-62733-00-00
Unavailable
11
BAND, HOSE 18
90601-118UF-00
Unavailable
12
CLAMP
90464-32801-00
Unavailable
13
PACKING, HOSE 2
F0D-U7578-00-00
Unavailable
14
RESONATOR, 2
F0D-6753D-01-00
Unavailable
15
TANK, WATER
F0D-64261-02-00
Unavailable
16
HOSE, EXHAUST 2
F0D-6758C-01-00
Unavailable
17
BAND, HOSE 95
90601-195UD-00
Unavailable
18
HOSE, EXHAUST 3
F0V-U758D-00-00
Unavailable
19
BAND, HOSE 95
90601-195UD-00
Unavailable
20
PLATE
F1S-U757B-01-00
Unavailable
21
BOLT,STUD
90116-06822-00
Unavailable
22
WASHER
9299R-06200-00
Unavailable
23
NUT, NYLON
9572R-06300-00
Unavailable
