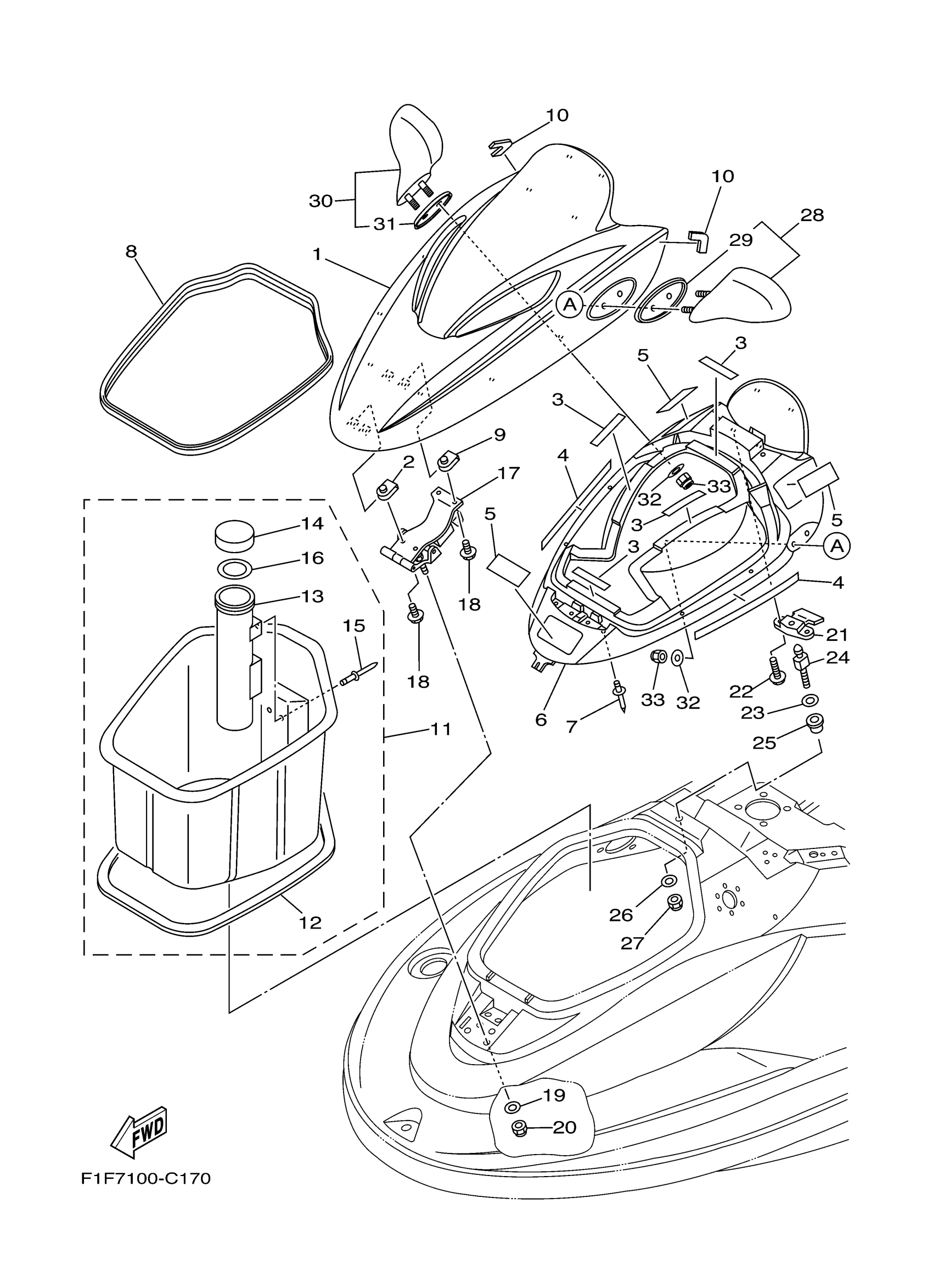

Yamaha XA1200AC (XLT1200) F0V9 2004 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F0V-U517B-80-P0

Unavailable

1

LID, ENGINE ROOM

F0V-U517B-90-P0

Unavailable

2

NUT, SPRING(GJ3)

90183-06902-00

$8.53

3

TAPE, FITTING

F0V-U3635-00-00

Unavailable

4

TAPE, FITTING

F1X-U3635-00-00

Unavailable

5

TAPE, FITTING

F0V-U3635-20-00

Unavailable

6

VENTILATOR COVER C (BLACK)

F0V-U2103-11-00

Unavailable

7

RIVET, BLIND

90267-48809-00

$2.35

8

PACKING 3

F0V-U266B-00-00

Unavailable

9

NUT, SPRING(GJ3)

90183-06902-00

$8.53

10

PAD, HATCH 1

F0V-U517M-00-00

Unavailable

11

BOWLOCKER ASSY

F0D-U475A-00-00

Unavailable

12

PACKING 4

GJ3-U266C-31-00

Unavailable

13

. BOX, FIRE EXTINGUISHER

GP7-U5983-00-00

Unavailable

14

. CAP, CASE

EW2-U5912-01-00

Unavailable

15

RIVET, 1

F3J-U516R-00-00

$2.36

16

PACKING, CASE

EW2-U5913-01-00

Unavailable

17

HINGE ASSY.

F0V-6515A-01-00

$303.02

18

BOLT,WITH WASHER

90119-06890-00

$1.07

19

WASHER, PLATE

90201-06020-00

Unavailable

20

NUT, NYLON

9572R-06300-00

$2.80

21

LOCK, LID

F0D-6517C-04-00

Unavailable

22

BOLT, WITH WASHER

90119-06830-00

Unavailable

23

DAMPER 2

F0V-U515E-00-00

Unavailable

24

PIN

F0D-63774-01-00

$48.47

25

COLLAR

90387-08802-00

Unavailable

26

WASHER

9299R-08200-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

$10.55

28

MIRROR LH (BLACK)

F0V-U596B-04-00

$42.28

29

. SPACER 1

F0V-U471E-00-00

$37.86

30

MIRROR RH (BLACK)

F0V-U596C-04-00

$60.59

31

. SPACER 2

F0V-U471F-00-00

$37.86

32

WASHER

9299R-08200-00

Unavailable

33

NUT, NYLON (6J8)

95780-08300-00

$10.55
