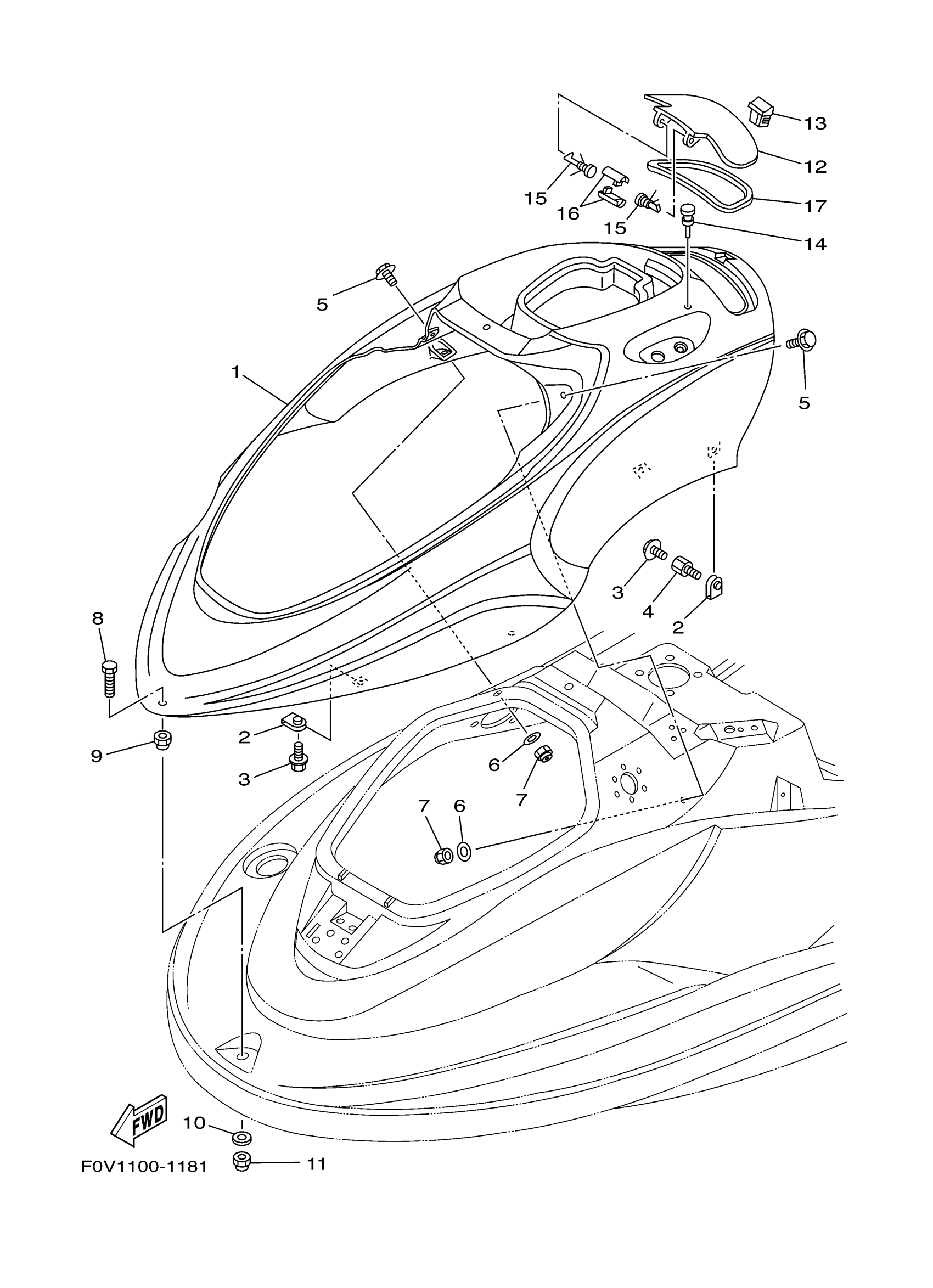

Yamaha XA1200AC (XLT1200) F0V9 2004 ENGINE HATCH 1 Diagram

#

Description
Price

1

COVER, ENGINE HATCH

F0V-U516N-80-P0

Unavailable

1

COVER, ENGINE HATCH

F0V-U516N-90-P0

Unavailable

2

NUT, SPRING(GJ3)

90183-06902-00

$8.53

3

BOLT,WITH WASHER

90119-068B8-00

$28.70

4

NUT, JOINT

F0V-U7772-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06803-00

$3.52

6

WASHER

9299R-06200-00

$0.43

7

NUT, NYLON

9572R-06300-00

$2.80

8

BOLT

9708R-06030-00

Unavailable

9

NUT

9538R-06700-00

$1.01

10

WASHER

9299R-06200-00

$0.43

11

NUT, NYLON

9572R-06300-00

$2.80

12

LID HATCH (YAMAHA BLACK)

F0V-U517H-20-00

Unavailable

13

LOCK

F0D-62875-00-00

$27.26

14

. PLUG

90605-502U2-00

$2.42

15

PIN, HINGE

F0D-6517R-00-00

Unavailable

16

JOINT, HINGE

F0D-6517T-00-00

Unavailable

17

PACKING CASE

F0D-U519D-01-00

Unavailable
