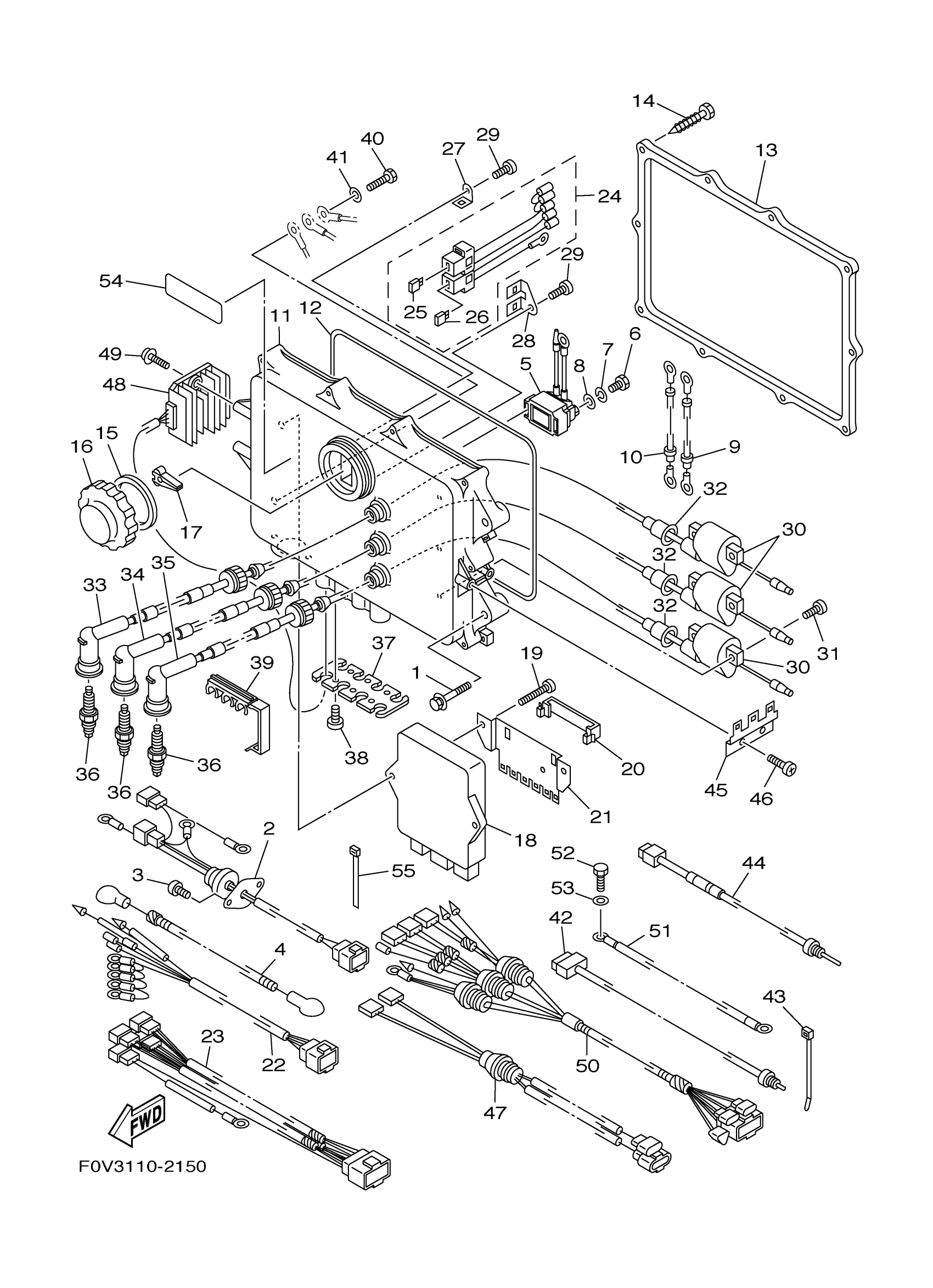

Yamaha XA1200AC (XLT1200) F0V9 2004 ELECTRICAL 1 Diagram

#

Description

Price

1

BOLT, WITH WASHER

90119-08856-00

Unavailable

2

LEAD WIRE ASSY

66V-81315-00-00

Unavailable

3

SCREW, TAPPING

97780-60425-00

Unavailable

4

WIRE, LEAD

66V-82117-00-00

Unavailable

5

STARTER RELAY ASSY

68N-81940-00-00

Unavailable

6

BOLT

97085-06010-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

WIRE, LEAD

66V-82117-10-00

Unavailable

10

WIRE, LEAD

66V-82117-10-00

Unavailable

11

HOUSING

66V-8552A-00-00

Unavailable

12

GASKET, TERMINAL

66V-81921-00-00

Unavailable

13

COVER, CASE

66V-8552E-00-00

Unavailable

14

SCREW, TAPPING

97780-60430-00

$4.24

15

. GASKET

66V-81844-00-00

Unavailable

16

. CAP

66V-8132W-00-00

Unavailable

17

. PULLER, FUSE

67F-2812A-00-00

Unavailable

18

C.D.I. UNIT ASSY

66V-85540-00-00

Unavailable

19

SCREW, TAPPING

97780-60530-00

Unavailable

20

CLAMP, HARNESS

66V-83919-00-00

Unavailable

21

BRACKET 1

66V-83955-00-00

Unavailable

22

LEAD WIRE ASSY

66V-85515-00-00

Unavailable

23

WIRE, LEAD

66V-83553-00-00

Unavailable

24

FUSE HOLDER ASSY

66V-82150-00-00

Unavailable

25

FUSE

5JJ-82151-20-00

Unavailable

26

. FUSE (10A)

67F-82151-40-00

Unavailable

27

STAY, FUSE BOX

66V-82171-00-00

Unavailable

28

STAY, FUSE HOLDER

66V-82153-00-00

Unavailable

29

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

30

IGNITION COIL ASSY

66V-85570-00-00

Unavailable

31

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

32

GROMMET

66V-82355-00-00

Unavailable

33

HIGH TENSION CORD ASSY 1

66V-82340-01-00

Unavailable

34

HIGH TENSION CORD ASSY 1

66V-82340-11-00

Unavailable

35

HIGH TENSION CORD ASSY 1

66V-82340-21-00

Unavailable

36

BR8ES-11 NGK 4PK

BR8-ES110-00-00

Unavailable

37

COVER

66V-85525-00-00

Unavailable

38

SCREW, TAPPING

97780-60425-00

Unavailable

39

CLAMP, CORD

65U-81317-10-00

Unavailable

40

BOLT(GH1)

97080-06012-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

$2.80

42

THERMOSENSOR ASSY

66V-85790-10-00

Unavailable

43

CLAMP

90465-10098-00

Unavailable

44

SENSOR, EXT, TEMP.

66V-85881-00-00

Unavailable

45

BRACKET

66V-85542-00-00

Unavailable

46

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

47

WIRE, SUB LEAD

66V-82509-00-00

Unavailable

48

RECTIFIER & REGULATOR ASSY

66V-81960-00-00

Unavailable

49

SCREW, TAPPING

97780-60425-00

Unavailable

50

EXTENSION, WIRE LEAD

66V-82553-10-00

Unavailable

51

WIRE, LEAD 2

66V-82127-00-00

Unavailable

52

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

53

WASHER, PLAIN (646)

92990-06600-00

$2.80

54

MARK 3

6R7-83623-40-00

Unavailable

55

CLAMP(6E8)

90465-13M39-00

Unavailable
