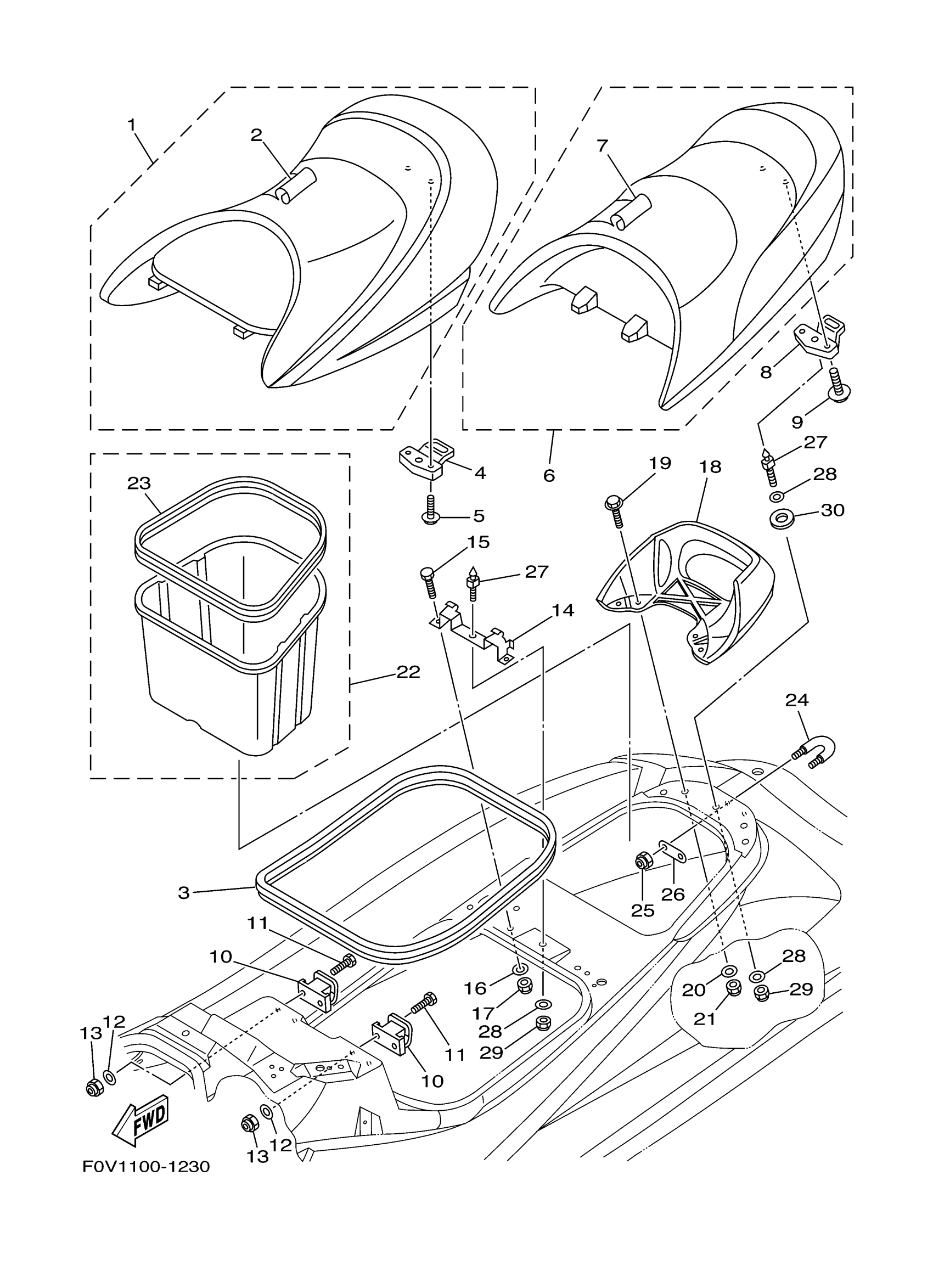

Yamaha XA1200AB (XLT1200) F0V6 2003 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY (DULL PURPLISH BLUE METALLIC E)

F0V-U371A-20-00

Unavailable

1

DOUBLE SEAT ASSY(BLACK)

F0V-U371A-30-00

Unavailable

2

. COVER, SEAT 1 (DULL PURPLISH BLUE METALLIC E)

F0V-U371B-20-00

Unavailable

2

COVER, SEAT 1(BLACK)

F0V-U371B-30-00

Unavailable

3

PACKING 4

F0D-U266C-00-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY (DULL PURPLISH BLUE METALLIC E)

F0V-U372A-20-00

Unavailable

6

SINGLE SEAT ASSY(BLACK)

F0V-U372A-30-00

Unavailable

7

. COVER, SEAT (DULL PURPLISH BLUE METALLIC E)

F0V-U372B-20-00

Unavailable

7

COVER, SEAT (BLACK)

F0V-U372B-30-00

Unavailable

8

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

9

BOLT, WITH WASHER

90119-06808-00

$2.16

10

STAY, SEAT 1

F0V-U378C-00-00

Unavailable

11

BOLT

90101-069U0-00

$1.23

12

WASHER

9299R-06200-00

$0.43

13

NUT, NYLON

9572R-06300-00

$2.80

14

STAY, SEAT 2

F0D-6378D-01-00

$90.89

15

BOLT

97080-10025-00

Unavailable

16

WASHER

9299R-10200-00

$1.63

17

NUT, NYLON

9572R-10300-00

$3.37

18

GRIP, HAND

F0D-U271B-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06820-00

$3.52

20

WASHER

9299R-06200-00

$0.43

21

NUT, NYLON

9572R-06300-00

$2.80

22

UNDER LOCKER ASSY

F0D-U474A-00-00

Unavailable

23

. PACKING 5

F0D-U266D-00-00

Unavailable

24

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

25

NUT, NYLON (6J8)

95780-08300-00

$10.55

26

PLATE A

GP7-U4953-10-00

$3.52

27

PIN

GH1-U3774-00-00

$19.38

28

WASHER

9299R-10200-00

$1.63

29

NUT, NYLON

9572R-10300-00

$3.37

30

PLATE, DAMPER

F0D-6376D-00-00

$5.45
