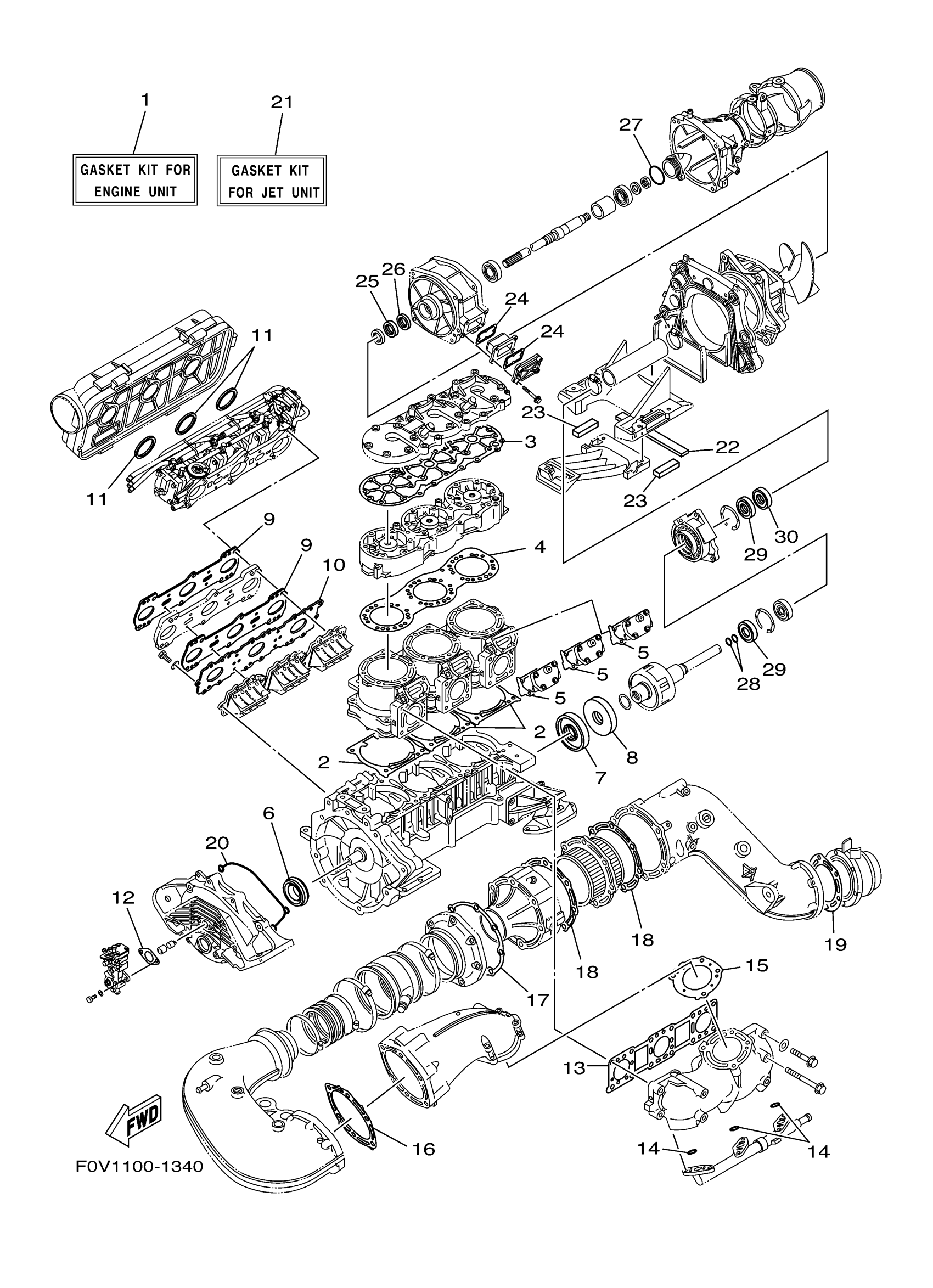

Yamaha XA1200AB (XLT1200) F0V6 2003 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

68N-W0001-10-00

Unavailable

2

GASKET, CYLINDER

66E-11351-02-00

$20.81

3

GASKET, HEAD COVER 1

66V-11193-01-00

$45.21

4

GASKET, CYLINDER HEAD 1

66V-11181-01-00

$65.35

5

GASKET, COVER

66E-1131B-02-00

$10.75

6

OIL SEAL

93103-35011-00

$34.45

7

OIL SEAL

93101-34001-00

$20.09

8

OIL SEAL

93101-34002-00

$20.09

9

. GASKET, MANIFOLD

68N-13556-00-00

$29.25

10

. PLATE, REED VALVE

66V-13624-00-00

Unavailable

11

. O-RING

66E-13473-00-00

$4.93

12

GASKET, PUMP CASE

63M-13116-00-00

$2.80

13

GASKET, EXHAUST PIPE

66V-14613-01-00

$66.06

14

O-RING(6R7)

93210-17MA4-00

$4.65

15

GASKET, MUFFLER DAMPER 1

66V-14739-01-00

$47.39

16

GASKET, MUFFLER DAMPER 2

66V-14749-01-00

$80.58

17

GASKET, EXHAUST OUTER COVER

66V-41114-01-00

$35.49

18

GASKET, EXHAUST OUTER COVER

66V-41124-01-00

$48.82

19

. GASKET, EXHAUST PIPE

68N-14623-00-00

$25.36

20

. O-RING

66V-81168-10-00

Unavailable

21

GASKET KIT FOR JET UNIT

66V-W0001-20-00

Unavailable

22

FELT, PACKING

66V-R1367-00-00

Unavailable

23

FELT, PACKING 2

66V-R1368-00-00

Unavailable

24

. O-RING

66V-42414-00-00

$5.31

25

OIL SEAL

93101-28M66-00

Unavailable

26

OIL SEAL

93101-28002-00

$13.63

27

. O-RING

93210-46M16-00

$7.59

28

O-RING

93210-19001-00

$3.49

29

OIL SEAL(62T)

93101-25M55-00

Unavailable

30

OIL SEAL

93101-24001-00

Unavailable
