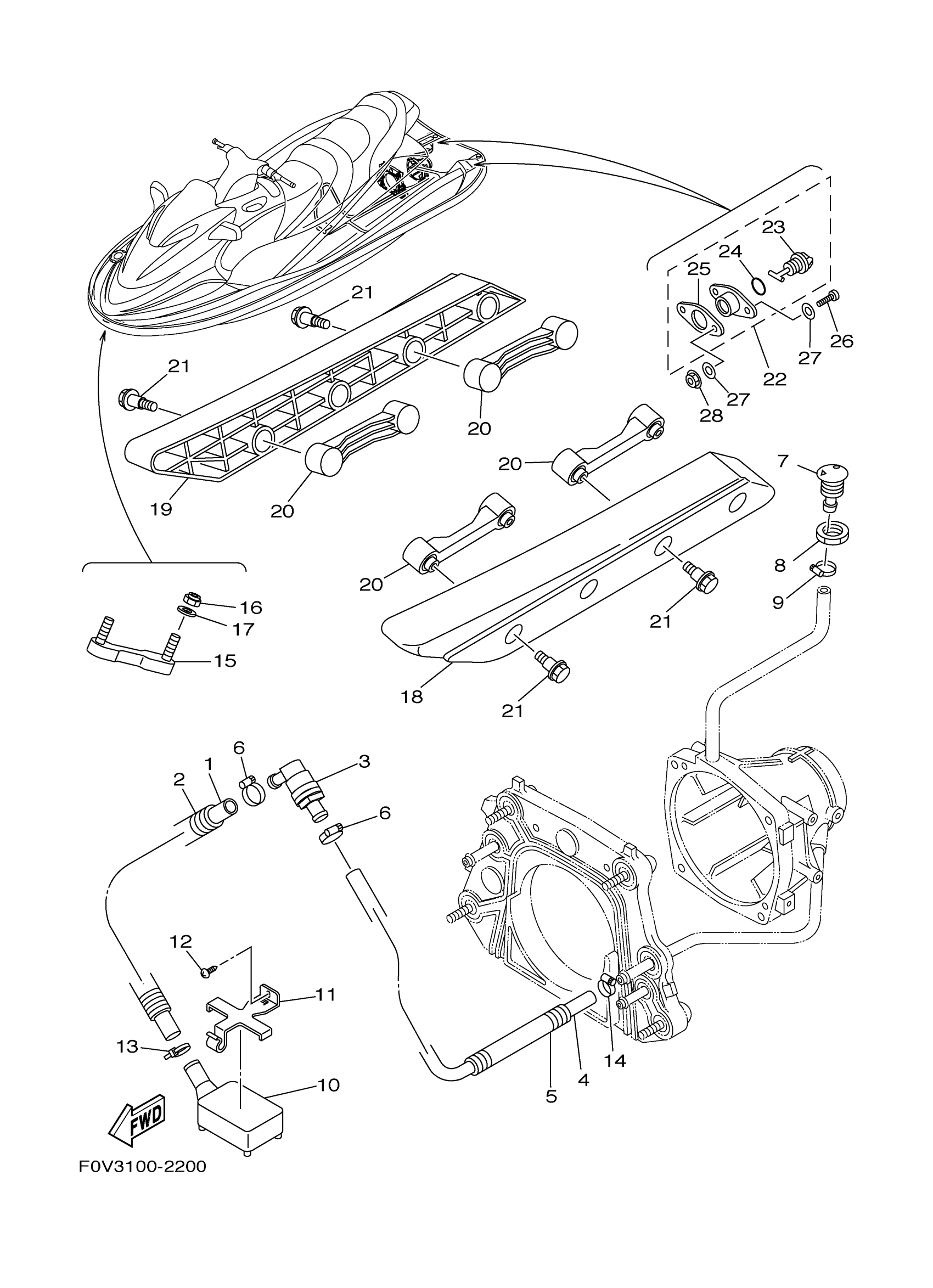

Yamaha XA1200AB (XLT1200) F0V6 2003 HULL DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L650)

90445-198B9-00

Unavailable

5

HOSE(63M)

90446-27M55-00

$14.36

6

BAND, HOSE 18

90601-118UF-00

$2.07

7

SPOUT

FN8-6269B-00-00

$22.49

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

11

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

12

SCREW, TAPPING

9778R-50112-00

Unavailable

13

CLAMP

90465-10098-00

$1.68

14

BAND, HOSE 18

90601-118UF-00

$2.07

15

BOWEYE 1

F0D-61624-01-00

Unavailable

16

NUT, NYLON (6J8)

95780-08300-00

$10.55

17

WASHER

9299R-08200-00

Unavailable

18

STABILIZER LH

F0D-U883N-20-00

Unavailable

19

STABILIZER RH

F0D-U883P-20-00

Unavailable

20

BRACKET,STABILIZER

F1F-U883T-02-00

Unavailable

21

BOLT

F0V-U2624-10-00

Unavailable

22

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

23

. PLUG, DRAIN

EU0-62282-00-00

$7.40

24

. O-RING

EU0-62283-00-00

$3.70

25

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

26

SCREW, PAN HEAD

9788R-05025-00

$2.52

27

WASHER

9299R-05200-00

$3.16

28

NUT, FLANGE

9572R-05300-00

$1.43
