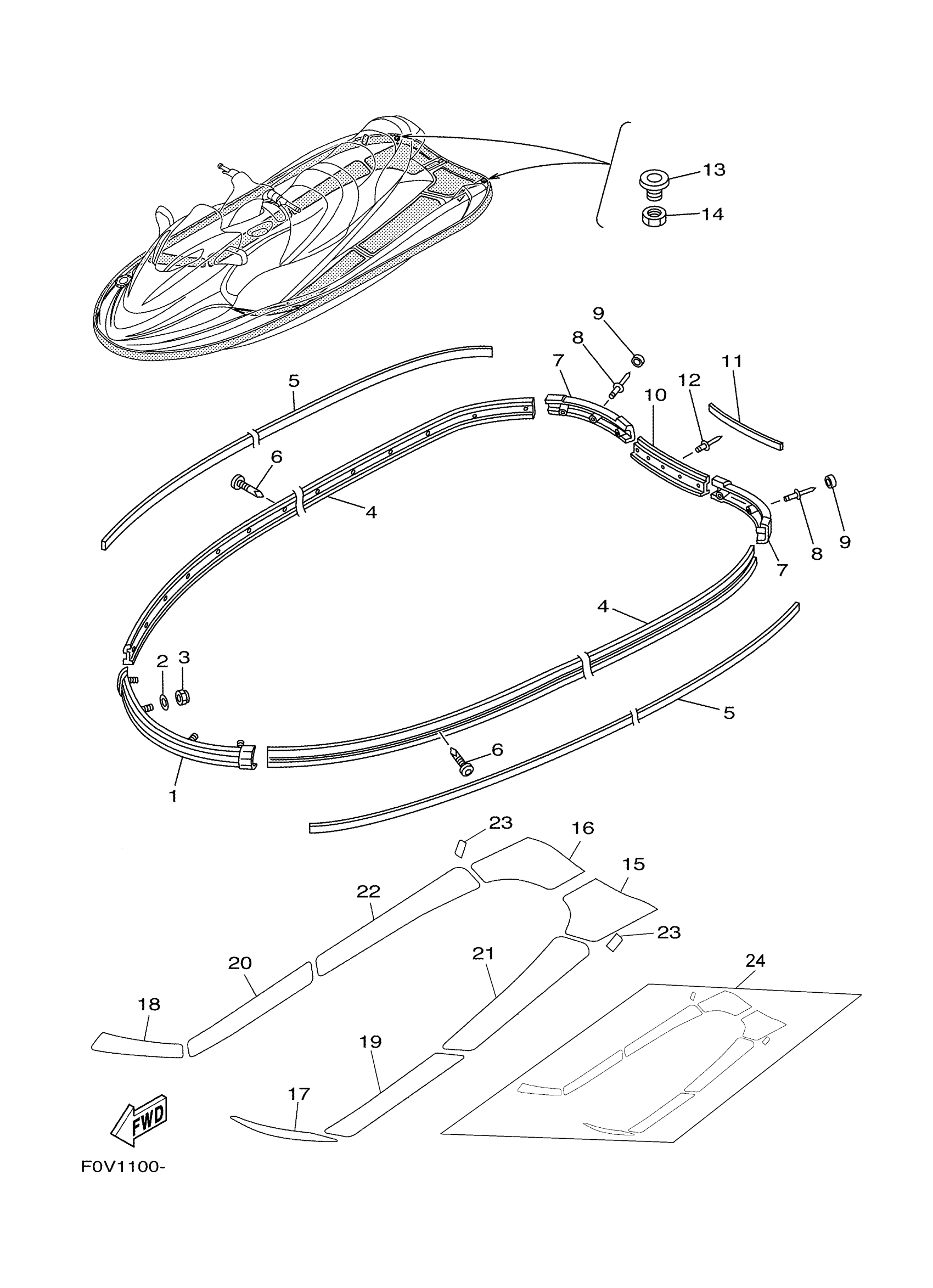

Yamaha XA1200AB (XLT1200) F0V6 2003 GUNWALE MAT Diagram

#

Description

Price

1

BOW GUNWALE COMP.

GP7-U2501-20-00

Unavailable

2

WASHER

9299R-06200-00

Unavailable

3

NUT, NYLON

9572R-06300-00

Unavailable

4

GUNWALE, SIDE

F0D-U2512-00-00

Unavailable

5

INNER,GUNWALE

F1F-U2519-01-00

Unavailable

6

SCREW,TAPPING

90169-059U1-00

Unavailable

7

GUNWALE, STERN 1

F0D-U251D-00-00

Unavailable

8

RIVET, BLIND

90267-489UT-00

Unavailable

9

PLUG, MUSHROOM

F0D-U352E-00-00

Unavailable

10

COVER, GUNWALE 1

F0D-U252C-00-00

Unavailable

11

COVER, GUNWALE 2

F0V-U252D-00-00

Unavailable

12

RIVET, BLIND

90267-489US-00

Unavailable

13

ROPE HOLE

GH1-61651-01-00

Unavailable

14

NUT

EU0-61652-00-00

Unavailable

15

MAT, UPPER LH

F0V-U358F-03-00

Unavailable

16

MAT, UPPER RH

F0V-U358G-03-00

Unavailable

17

MAT, STEP 1

F0P-U351H-00-00

Unavailable

18

MAT, STEP 2

F0P-U351J-00-00

Unavailable

19

MAT, STEP 3

F0V-U351K-00-00

Unavailable

20

MAT, STEP 4

F0V-U351M-00-00

Unavailable

21

MAT, STEP 5

F0V-U351N-00-00

Unavailable

22

MAT, STEP 6

F0V-U351P-00-00

Unavailable

23

MAT, STEP 7

F0D-U351R-00-00

Unavailable

24

MAT KIT BLACK

F0V-MATKT-00-BK

Unavailable
