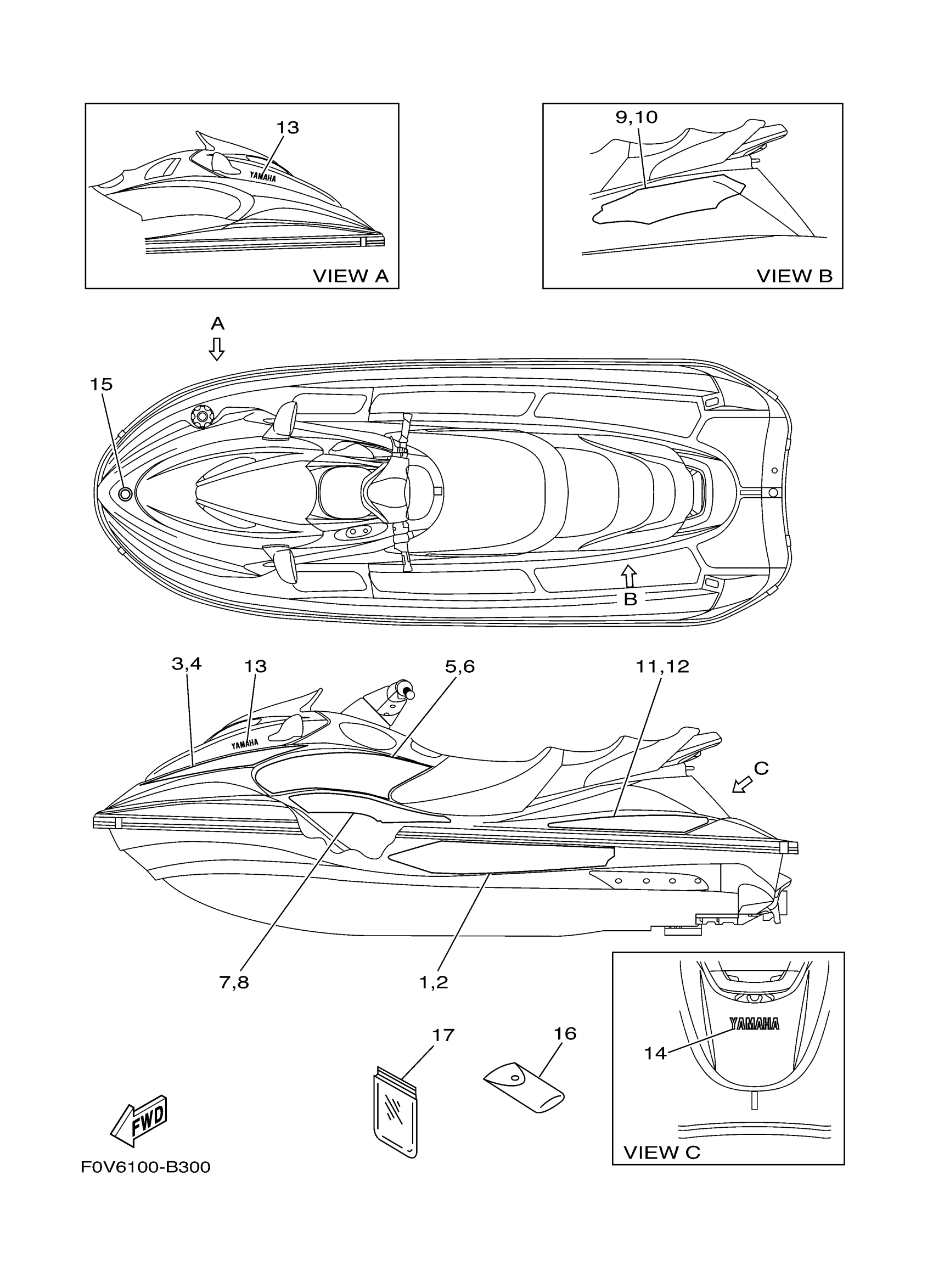

Yamaha XA1200AB (XLT1200) F0V6 2003 GRAPHICS Diagram
#
1
GRAPHIC 1
F0V-U417B-21-00
Unavailable
1
GRAPHIC 1
F0V-U417B-31-00
Unavailable
2
GRAPHIC 2
F0V-U417C-21-00
Unavailable
2
GRAPHIC 2
F0V-U417C-31-00
Unavailable
3
GRAPHIC 3
F0V-U417D-21-00
Unavailable
3
GRAPHIC 3
F0V-U417D-31-00
Unavailable
4
GRAPHIC 4
F0V-U417E-21-00
Unavailable
4
GRAPHIC 4
F0V-U417E-31-00
Unavailable
5
GRAPHIC 5
F0V-U417F-21-00
Unavailable
5
GRAPHIC 5
F0V-U417F-31-00
Unavailable
6
GRAPHIC 6
F0V-U417G-21-00
Unavailable
6
GRAPHIC 6
F0V-U417G-31-00
Unavailable
7
GRAPHIC 7
F0V-U417H-21-00
Unavailable
7
GRAPHIC 7
F0V-U417H-31-00
Unavailable
8
GRAPHIC 8
F0V-U417J-21-00
Unavailable
8
GRAPHIC 8
F0V-U417J-31-00
Unavailable
9
GRAPHIC 9
F0V-U417K-21-00
Unavailable
9
GRAPHIC 9
F0V-U417K-31-00
Unavailable
10
GRAPHIC B
F0V-U417L-21-00
Unavailable
10
GRAPHIC B
F0V-U417L-31-00
Unavailable
11
GRAPHIC C
F0V-U417M-21-00
Unavailable
11
GRAPHIC C
F0V-U417M-31-00
Unavailable
12
GRAPHIC D
F0V-U417N-21-00
Unavailable
12
GRAPHIC D
F0V-U417N-31-00
Unavailable
13
EMBLEM 2
F1F-U4122-00-00
Unavailable
14
MARK,YAMAHA A
GJ3-U4114-52-00
Unavailable
15
EMBLEM, TUNING FOR
F1B-U411H-10-00
Unavailable
16
TOOL SET
EU0-65986-13-00
Unavailable
17
BAG, VINYL
EU0-65901-03-00
Unavailable
