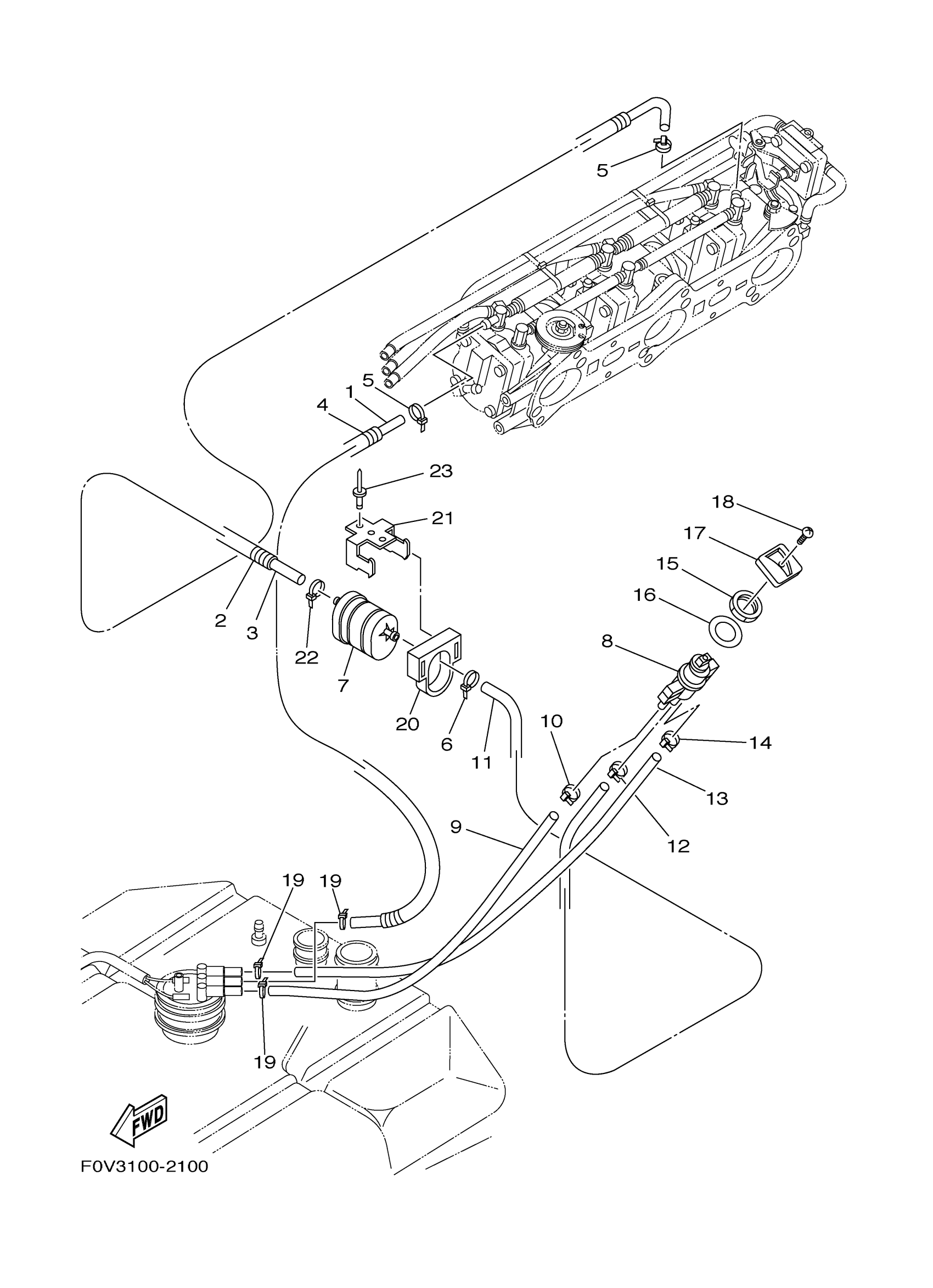

Yamaha XA1200AB (XLT1200) F0V6 2003 FUEL Diagram

#

Description
Price

1

HOSE )L1400)

90445-11M59-00

$63.99

2

HOSE

90446-17MA5-00

$11.49

3

HOSE )L1400)

90445-11M59-00

$63.99

4

HOSE, WITH SPRING

90447-13005-00

Unavailable

5

CLAMP

90465-10098-00

Unavailable

6

CLAMP

90465-10098-00

Unavailable

7

FILTER ASSY

66V-24560-01-00

Unavailable

8

FUEL COCK ASSY 1

66V-24500-02-00

Unavailable

9

HOSE

90445-11M71-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

HOSE

90445-11M71-00

Unavailable

12

CLAMP

90465-10098-00

Unavailable

13

HOSE

90445-11M71-00

Unavailable

14

CLAMP

90465-10098-00

Unavailable

15

NUT, HEXAGON (1E6)

90170-22187-00

$9.49

16

WASHER, PLATE

90202-229U1-00

Unavailable

17

LEVER, COCK

F0D-6777C-00-00

Unavailable

18

SCREW, BIND

98980-04008-00

Unavailable

19

CLAMP

90465-10098-00

Unavailable

20

HOLDER, FILTER

EU0-U7817-00-00

Unavailable

21

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

22

CLAMP

90465-10098-00

Unavailable

23

RIVET (EU0)

90267-48938-00

Unavailable
