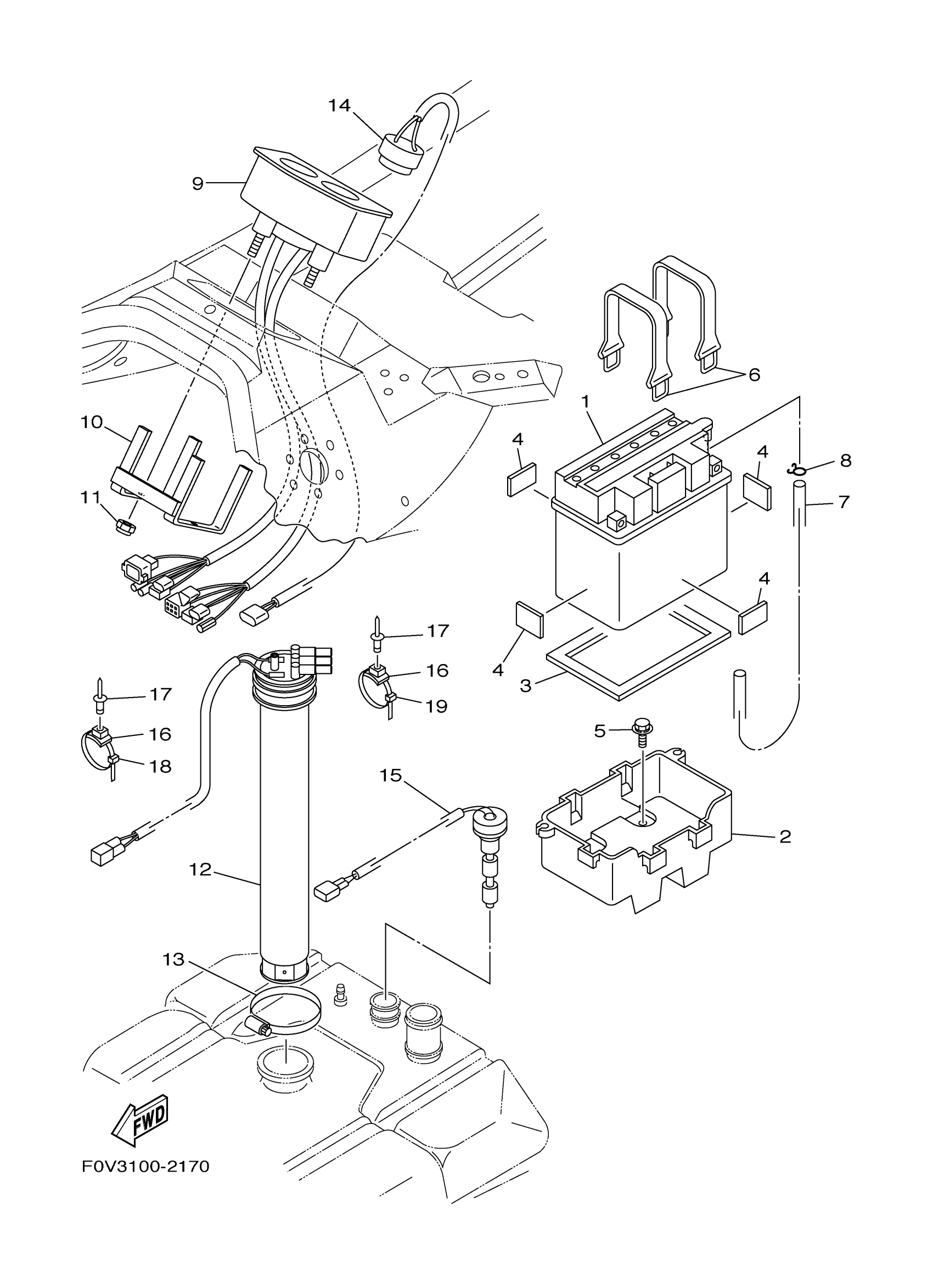

Yamaha XA1200AB (XLT1200) F0V6 2003 ELECTRICAL 2 Diagram

#

Description
Price

1

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

2

CASE, BATTERY

GP7-U8211-00-00

Unavailable

3

PAD, BATTERY

F1S-U8221-00-00

$2.75

4

PAD, BATTERY

EU0-U8221-31-00

$1.65

5

BOLT, WITH WASHER

90119-069US-00

$2.52

6

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

7

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

8

CLIP

90467-089U1-00

$1.44

9

METER ASSY

F0D-6820A-01-00

Unavailable

10

BRACKET, METER

F0D-68238-10-00

$71.20

11

NUT, FLANGE

9572R-05300-00

$1.43

12

SENDER, FUEL

F0V-U824B-04-00

$584.60

13

BAND, HOSE 62

90601-162U5-00

$6.17

14

BUZZER

F1S-68341-00-00

$113.62

15

SENDER, OIL

F0D-U824C-21-00

Unavailable

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

90464-32801-00

$1.23

19

BAND (EU0)

90601-20009-00

$6.36
