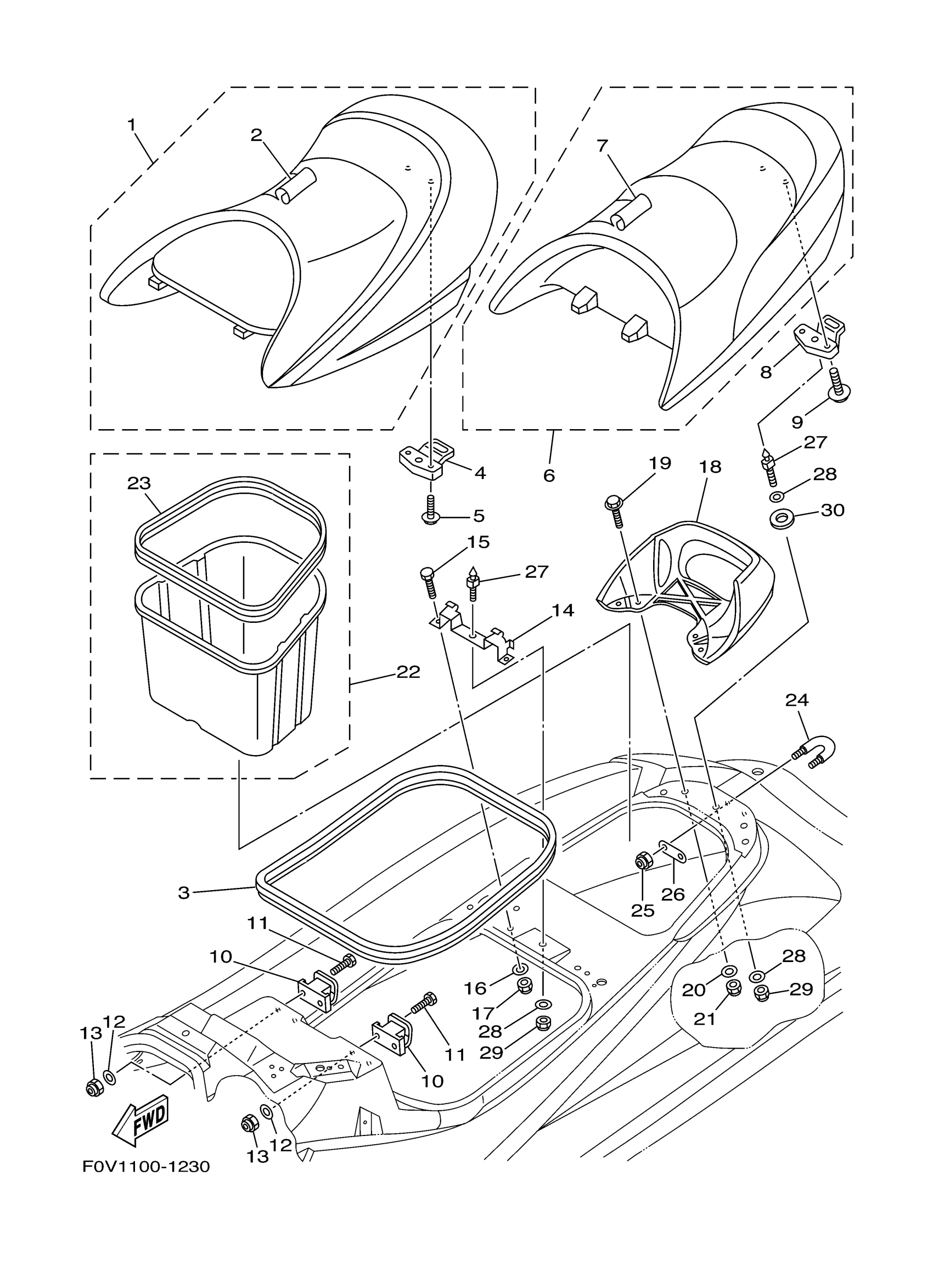

Yamaha XA1200AA F0V3 2002 SEAT. UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F0V-U371A-10-00

Unavailable

2

. COVER, SEAT 1

F0V-U371B-10-00

Unavailable

3

PACKING 4

F0D-U266C-00-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F0V-U372A-10-00

Unavailable

7

. COVER, SEAT

F0V-U372B-10-00

Unavailable

8

SEAT LOCK ASSY

F0D-63850-01-00

Unavailable

9

BOLT, WITH WASHER

90119-06808-00

Unavailable

10

STAY, SEAT 1

F0V-U378C-00-00

Unavailable

11

BOLT

90101-069U0-00

Unavailable

12

WASHER

9299R-06200-00

Unavailable

13

NUT, NYLON

9572R-06300-00

Unavailable

14

STAY, SEAT 2

F0D-6378D-01-00

Unavailable

15

BOLT

97080-10025-00

Unavailable

16

WASHER

9299R-10200-00

Unavailable

17

NUT, NYLON

9572R-10300-00

Unavailable

18

GRIP, HAND

F0D-U271B-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06820-00

Unavailable

20

WASHER

9299R-06200-00

Unavailable

21

NUT, NYLON

9572R-06300-00

Unavailable

22

UNDER LOCKER ASSY

F0D-U474A-00-00

Unavailable

23

. PACKING 5

F0D-U266D-00-00

Unavailable

24

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

25

NUT, NYLON (6J8)

95780-08300-00

Unavailable

26

PLATE A

GP7-U4953-10-00

Unavailable

27

PIN

GH1-U3774-00-00

Unavailable

28

WASHER

9299R-10200-00

Unavailable

29

NUT, NYLON

9572R-10300-00

Unavailable

30

PLATE, DAMPER

F0D-6376D-00-00

Unavailable
