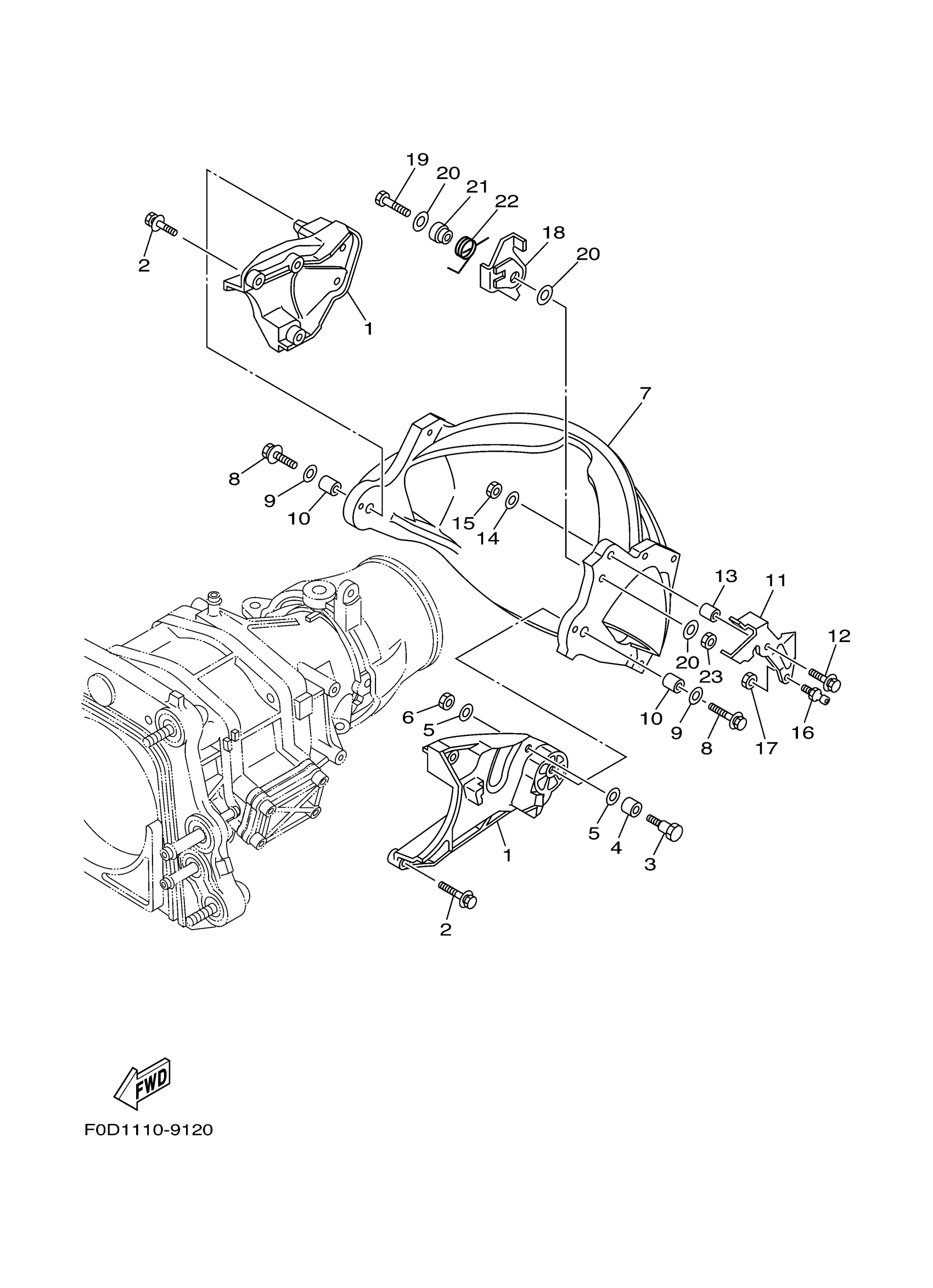

Find the part on the Jet Unit 3 diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha XA1200AA F0V3 Jet Unit 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET 1

66V-51341-00-94

1
Out of stock

2

BOLT, WITH WASHER

90119-06892-00

1
Out of stock

3

BOLT

90109-08851-00

1
Out of stock

4

COLLAR

90387-10M09-00

1
Out of stock

5

WASHER

9299R-08600-00

1
Out of stock

6

NUT

9538R-08600-00

1
Out of stock

7

GATE, REVERSE

99999-03376-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08841-00

1
Out of stock

9

WASHER, FENDER MOLD

90201-088T2-00

1
Out of stock

10

COLLAR

90387-08M30-00

1
Out of stock

11

LEVER, SHIFT ROD

66V-44121-00-00

1
Out of stock

12

BOLT,WITH WASHER

90119-06890-00

1
Out of stock

13

COLLAR

90387-06M74-00

—
Out of stock

14

WASHER, PLATE

90201-068T1-00

1
Out of stock

15

NUT

9538R-06600-00

1
Out of stock

16

STUD, JOINT BALL

66V-U146E-00-00

1
Out of stock

17

NUT

9538R-06600-00

1
Out of stock

18

LEVER, SHIFT ROD

66V-44125-00-00

1
Out of stock

19

BOLT

90101-06833-00

1
Out of stock

20

WASHER, PLATE

90201-068T1-00

1
Out of stock

21

COLLAR

90387-06M84-00

—
Out of stock

22

SPRING, TORSION

90508-14M43-00

1
Out of stock

23

NUT

9538R-06600-00

1
Out of stock
