2002 Yamaha XA1200AA F0V3 Jet Unit 2 Diagram

← All diagrams

Find the part on the Jet Unit 2 diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

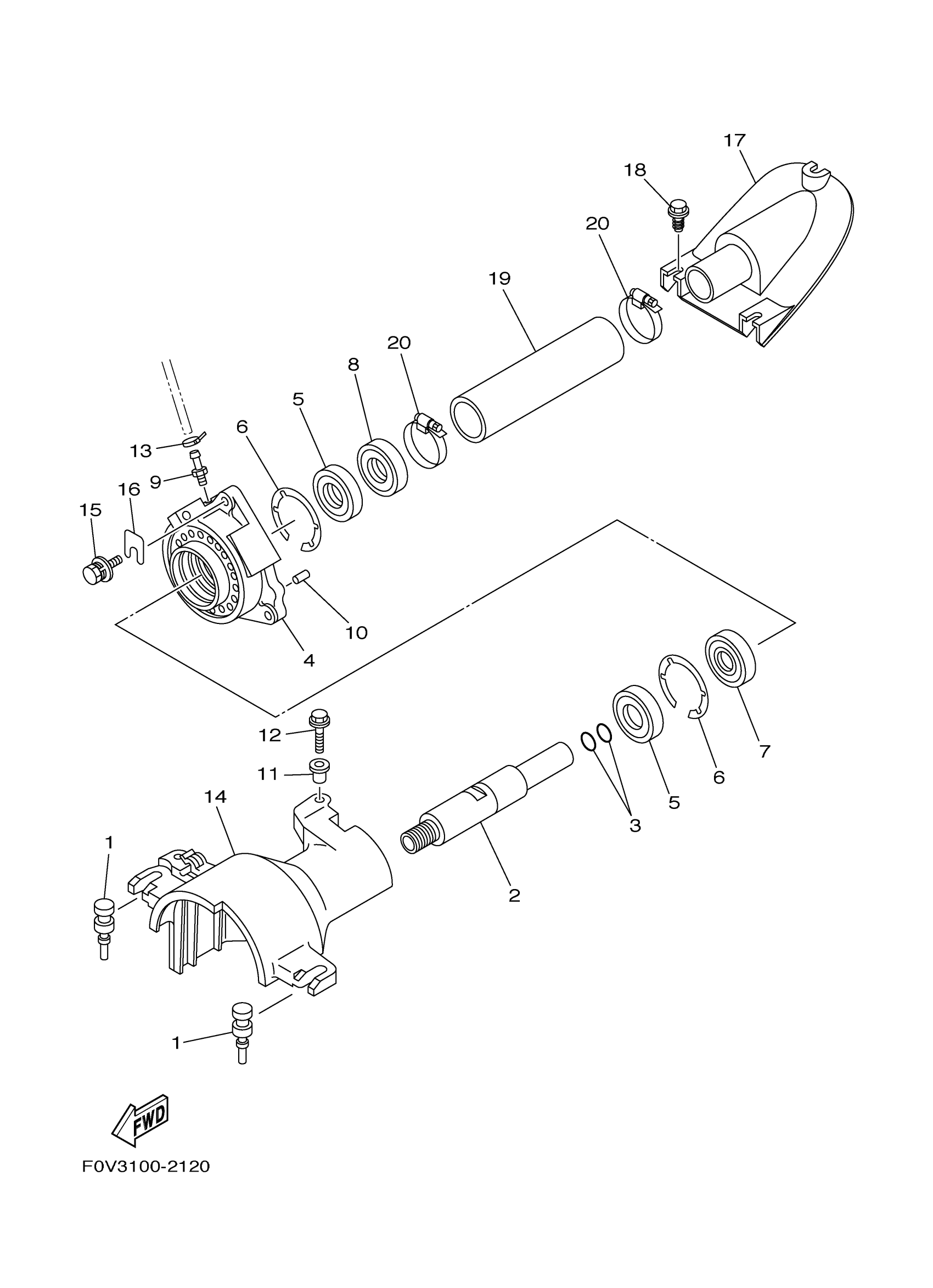

2002 Yamaha XA1200AA F0V3 Jet Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GROMMET(6R7)

90480-06M46-00

1

$9.97

In stock

2

SHAFT, COUPLER

68N-51323-00-00

1
Out of stock

3

O-RING

93210-19001-00

1

$3.63

In stock

4

HOUSING, BEARING

61X-G5332-00-00

1

$134.54

In stock

5

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

6

CIRCLIP

93430-47M04-00

1

$5.53

In stock

7

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

8

OIL SEAL

93101-24001-00

1

$31.99

In stock

9

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

10

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

11

COLLAR

90387-06M60-00

1

$8.99

In stock

12

BOLT, WITH WASHER

90119-06892-00

1

$4.31

In stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

COVER

66V-R1381-01-00

1
Out of stock

15

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

16

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

16

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

17

JOINT, PIPE

F0D-U883E-00-00

1
Out of stock

18

SCREW

90149-069UA-00

1
Out of stock

19

PIPE, 1

F0D-U883B-01-00

1
Out of stock

20

BAND, HOSE 52

90601-152U3-00

1

$6.38

In stock
