2002 Yamaha XA1200AA F0V3 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

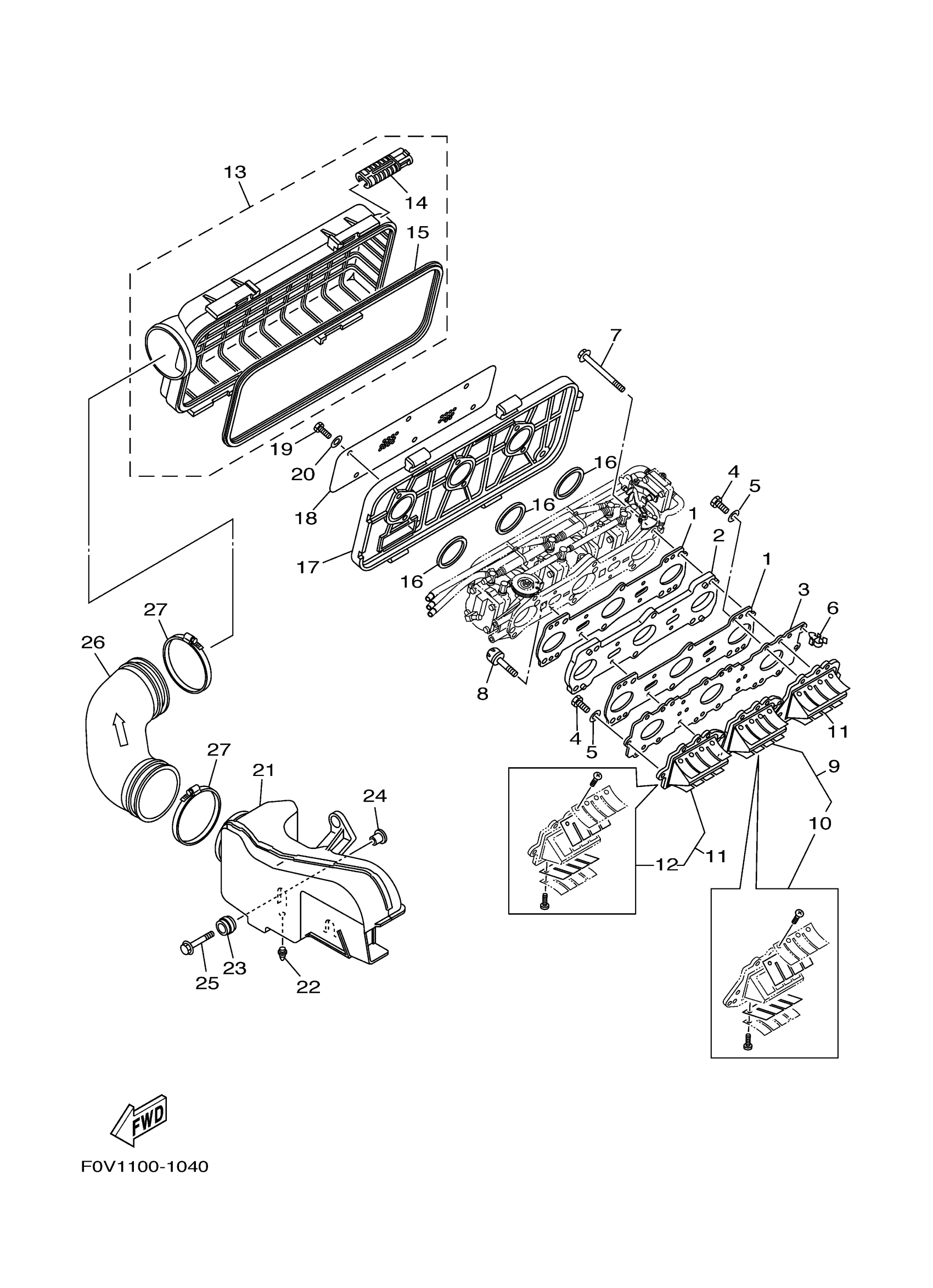

2002 Yamaha XA1200AA F0V3 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET, MANIFOLD

68N-13556-00-00

1

$30.48

In stock

2

INSULATOR

68N-14271-00-00

1

$154.99

In stock

3

. PLATE, REED VALVE

66V-13624-00-00

1
Out of stock

4

BOLT(62Y)

97013-06025-00

1

$1.37

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

CLAMP

90464-14M55-00

1

$1.78

In stock

7

BOLT, FLANGE

90105-08041-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD

90110-06068-00

1
Out of stock

9

REED VALVE ASSY

66V-13610-00-00

1
Out of stock

10

. REED SET

66V-W0004-00-00

1

$66.52

In stock

11

REED VALVE ASSY

66V-13620-00-00

1

$149.49

In stock

12

. REED SET

66V-W0004-00-00

1

$66.52

In stock

13

COVER SUB ASSY

66V-14480-01-00

1
Out of stock

14

. HOLDER

66V-13898-00-00

1

$9.10

In stock

15

. SEAL

66V-14457-00-00

1
Out of stock

16

. O-RING

66E-13473-00-00

1

$5.14

In stock

17

COVER, CARBURETOR 2

66V-14284-00-00

1

$51.99

In stock

18

ELEMENT, AIR CLEANER

66V-14451-00-00

1

$44.49

In stock

19

BOLT, HEXAGON

97013-06045-00

—

$1.51

In stock

20

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

21

SILENCER ASSY, INTAKE

66V-14440-00-00

1

$59.98

In stock

22

. RUBBER, SEAL 2

66E-42717-00-00

1
Out of stock

23

GROMMET

90480-22M15-00

1

$11.47

In stock

24

COLLAR

90387-08M37-00

1

$10.09

In stock

25

BOLT, WITH WASHER

90119-08187-00

1

$2.94

In stock

26

PIPE

66V-14419-00-00

1
Out of stock

27

CLAMP, HOSE

90460-99M23-00

1
Out of stock
