2002 Yamaha XA1200AA F0V3 Fuel Diagram

← All diagrams

Find the part on the Fuel diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

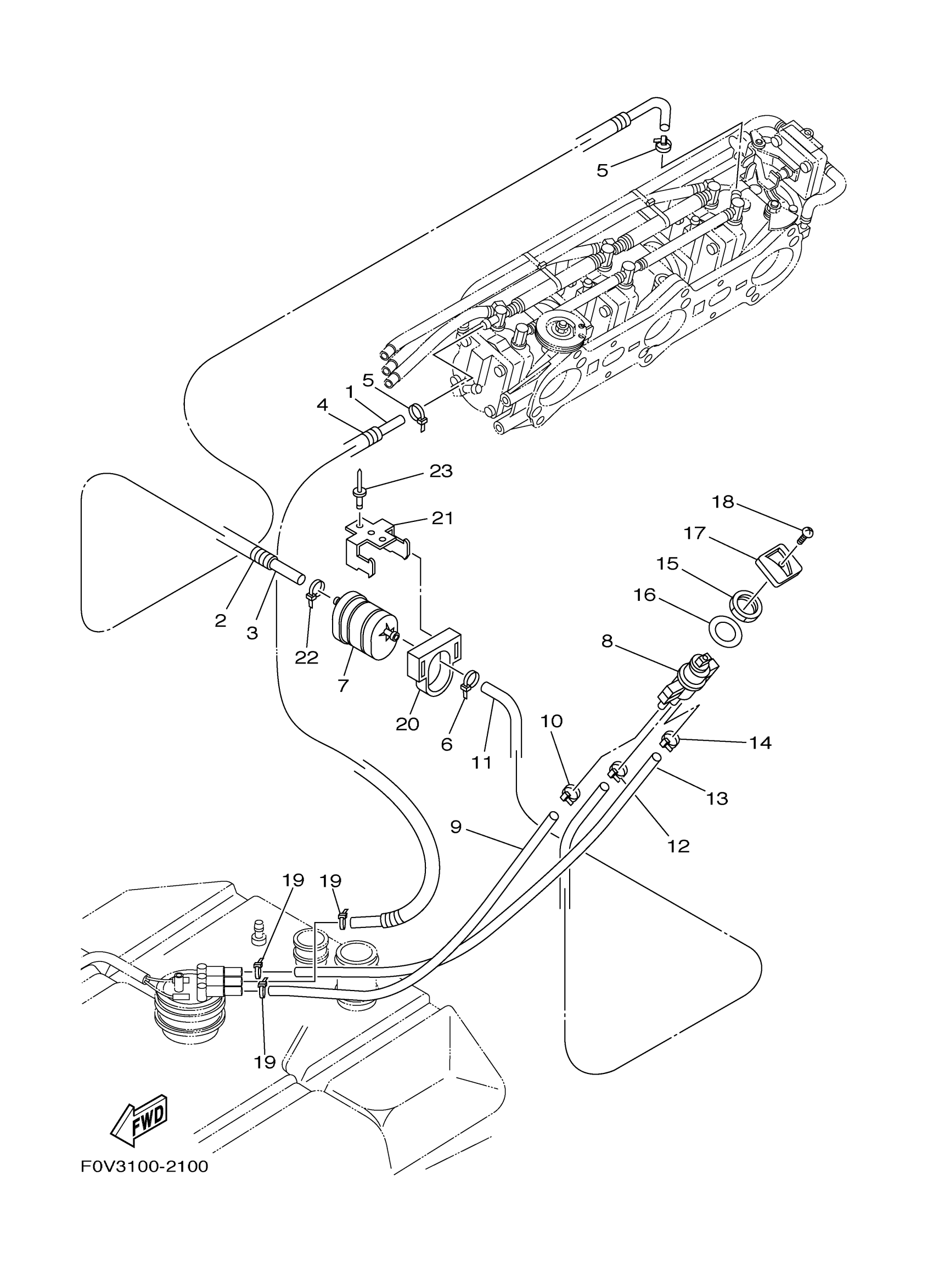

2002 Yamaha XA1200AA F0V3 Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE )L1400)

90445-11M59-00

1

$50.05

In stock

2

HOSE

90446-17MA5-00

1
Out of stock

3

HOSE )L1400)

90445-11M59-00

1

$50.05

In stock

4

HOSE, WITH SPRING

90447-13005-00

1
Out of stock

5

CLAMP

90465-10098-00

1

$2.24

In stock

6

CLAMP

90465-10098-00

1

$2.24

In stock

7

FILTER ASSY

66V-24560-01-00

1

$35.23

In stock

8

FUEL COCK ASSY 1

66V-24500-02-00

1

$57.46

In stock

9

HOSE

90445-11M71-00

1
Out of stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

HOSE

90445-11M71-00

1
Out of stock

12

CLAMP

90465-10098-00

1

$2.24

In stock

13

HOSE

90445-11M71-00

1
Out of stock

14

CLAMP

90465-10098-00

1

$2.24

In stock

15

NUT, HEXAGON (1E6)

90170-22187-00

1

$9.83

In stock

16

WASHER, PLATE

90202-229U1-00

1

$16.14

In stock

17

LEVER, COCK

F0D-6777C-00-00

1

$12.27

In stock

18

SCREW, BIND

98980-04008-00

1

$3.26

In stock

19

CLAMP

90465-10098-00

1

$2.24

In stock

20

HOLDER, FILTER

EU0-U7817-00-00

1

$15.37

In stock

21

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

22

CLAMP

90465-10098-00

1

$2.24

In stock

23

RIVET (EU0)

90267-48938-00

1

$5.08

In stock
