2002 Yamaha XA1200AA F0V3 Important Labels Diagram

← All diagrams

Find the part on the Important Labels diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

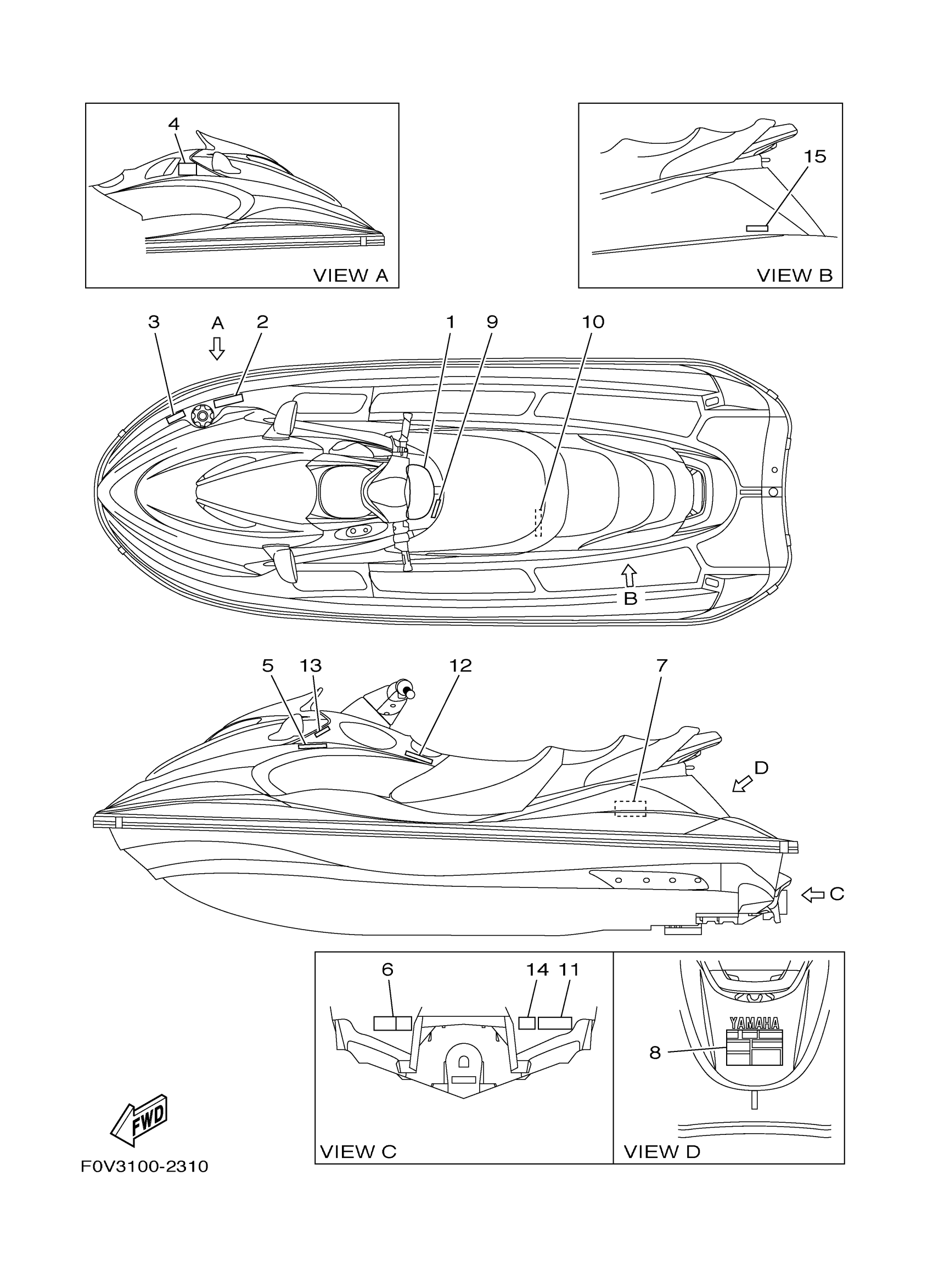

2002 Yamaha XA1200AA F0V3 Important Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, WARNING JDC 1

F0V-U41B1-41-00

1
Out of stock

2

LABEL, WARNING(FUEL)

F0P-U415B-00-00

1
Out of stock

3

LABEL, WARNING VENTILATION

F0P-U418R-00-00

1
Out of stock

4

LABEL, WARNING SHI

F0V-U41D5-21-00

1

$4.38

In stock

5

LABEL, SET 3

F0V-U41E3-00-00

1
Out of stock

6

LABEL, SET 1

F0P-U41E1-10-00

1
Out of stock

7

LABEL, CAUTION

F0P-U418B-00-00

1
Out of stock

8

LABEL, SET 1

F0V-U41E1-00-00

1
Out of stock

9

LABEL, WARNING(START)

F0V-U418U-20-00

1
Out of stock

10

LABEL, WARNING MUFFLER

F0X-U418V-00-00

1
Out of stock

11

LABEL, CAUTION

F0P-U418G-00-00

1
Out of stock

12

LABEL, CAUTION

F0X-U419M-00-00

1
Out of stock

13

LABEL, FIRE EXTINGUISHER 1

F0V-U41F5-01-00

1

$91.51

In stock

14

LABEL, WARNING (REVERSE)

F0P-U416R-00-00

1
Out of stock

15

LABEL, CAPACITY

F0P-U41G1-11-00

1
Out of stock
← Hull. Deck Seat. Under Locker →
