2002 Yamaha XA1200AA F0V3 Hull. Deck Diagram

← All diagrams

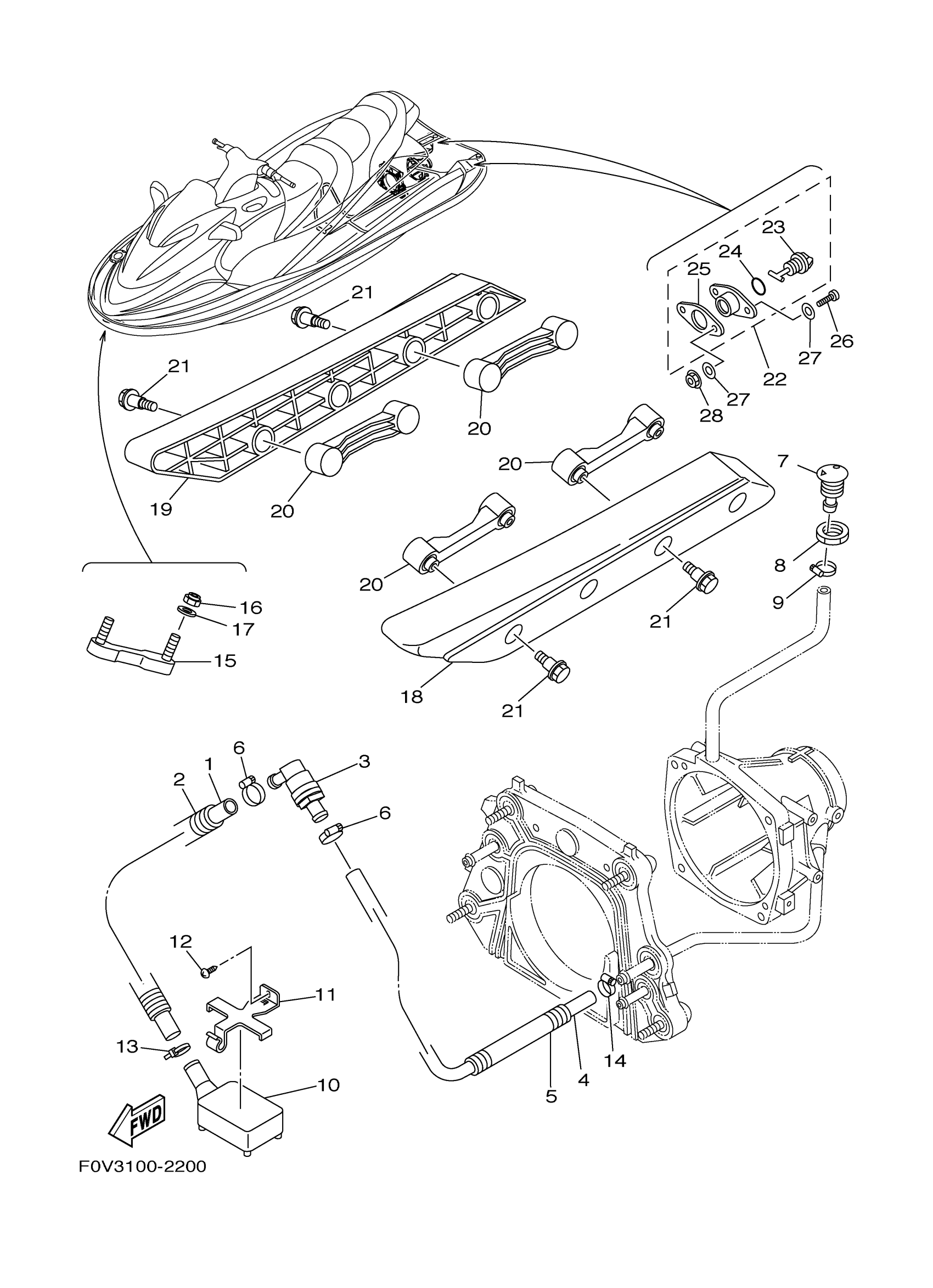

Find the part on the Hull. Deck diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha XA1200AA F0V3 Hull. Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1000)

90445-198C0-00

1
Out of stock

2

HOSE

90446-27M73-00

1

$19.12

In stock

3

JOINT, HOSE

68N-5112T-00-00

1

$44.09

In stock

4

HOSE (L650)

90445-198B9-00

1
Out of stock

5

HOSE(63M)

90446-27M55-00

1

$14.58

In stock

6

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

7

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

8

NUT

EU0-61652-00-00

1

$12.27

In stock

9

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

10

STRAINER, BILGE

GD0-U761D-00-00

1
Out of stock

11

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

12

SCREW, TAPPING

9778R-50112-00

1
Out of stock

13

CLAMP

90465-10098-00

1

$2.24

In stock

14

BAND, HOSE 18

90601-118UF-00

1

$2.38

In stock

15

BOWEYE 1

F0D-61624-01-00

1
Out of stock

16

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

17

WASHER

9299R-08200-00

—

$1.95

In stock

18

STABILIZER LH

F0D-U883N-20-00

1
Out of stock

19

STABILIZER RH

F0D-U883P-20-00

1
Out of stock

20

BRACKET,STABILIZER

F1F-U883T-02-00

1
Out of stock

21

BOLT

F0V-U2624-10-00

1
Out of stock

22

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

23

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

24

. O-RING

EU0-62283-00-00

1

$3.95

In stock

25

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

26

SCREW, PAN HEAD

9788R-05025-00

1

$2.85

In stock

27

WASHER

9299R-05200-00

1

$4.92

In stock

28

NUT, FLANGE

9572R-05300-00

1

$1.62

In stock
