2002 Yamaha XA1200AA F0V3 Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2002 Yamaha XA1200AA F0V3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

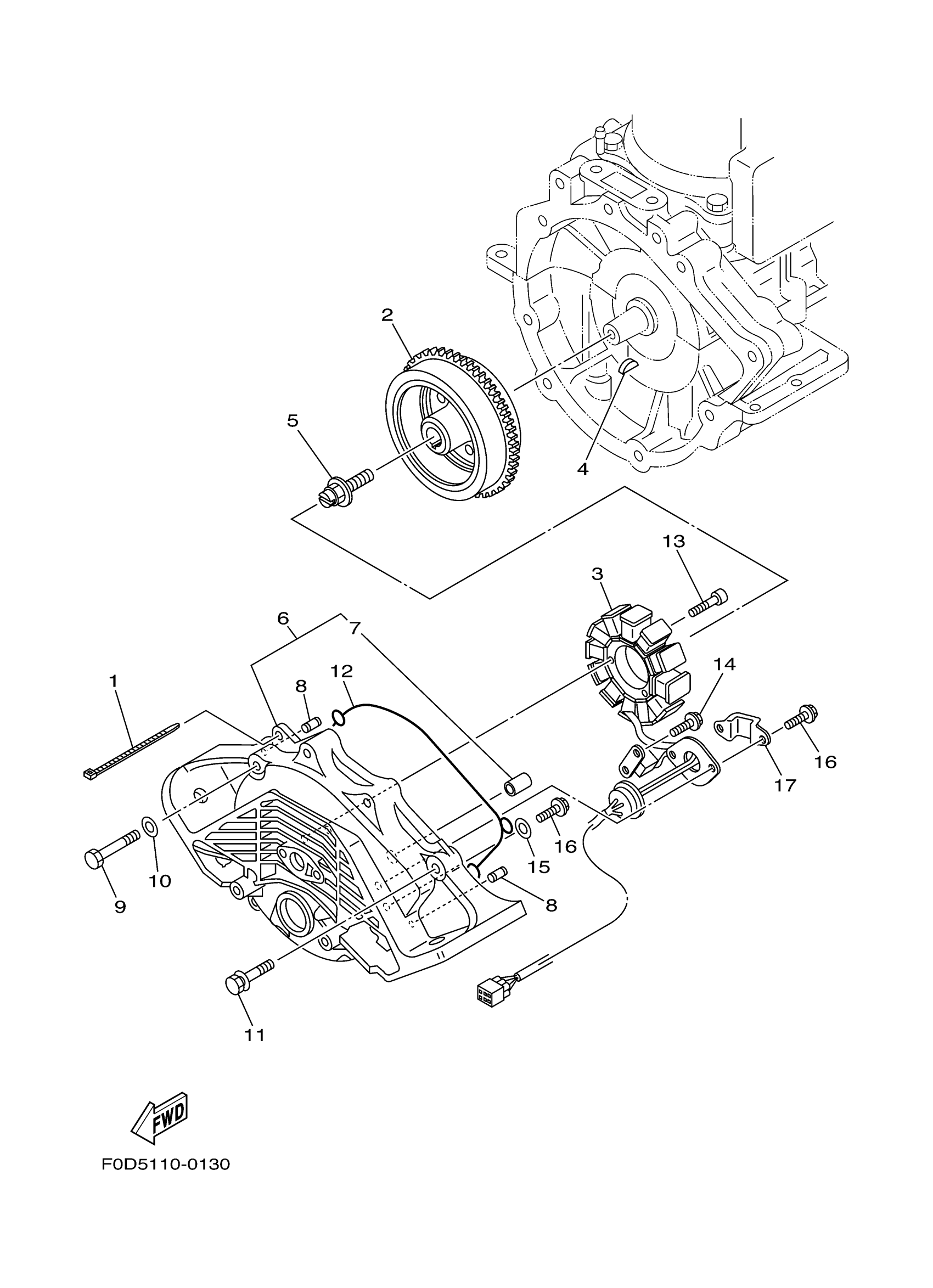

2002 Yamaha XA1200AA F0V3 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLAMP

90465-10098-00

1

$2.24

In stock

2

ROTOR ASSY

66V-85550-00-00

1
Out of stock

3

STATOR ASSY

66V-85510-00-00

1

$381.99

In stock

4

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

5

BOLT(63M)

90109-10M72-00

1

$31.99

In stock

6

COVER, FLYWHEEL

68N-81337-00-94

1

$484.99

In stock

7

. BUSH, SOLID

90380-12M29-00

1
Out of stock

8

PIN, DOWEL

93608-16M16-00

1

$2.48

In stock

9

BOLT, HEXAGON

97013-10055-00

—

$5.55

In stock

10

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

11

BOLT, WITH WASHER

90119-10M17-00

1

$9.22

In stock

12

. O-RING

66V-81168-10-00

1
Out of stock

13

1

$3.82

In stock

14

BOLT, WITH WASHER

97513-05514-00

1

$3.69

In stock

15

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

16

BOLT,SOCKET

91318-06014-00

—
Out of stock

17

CLAMP

66V-81328-00-00

1

$7.38

In stock
