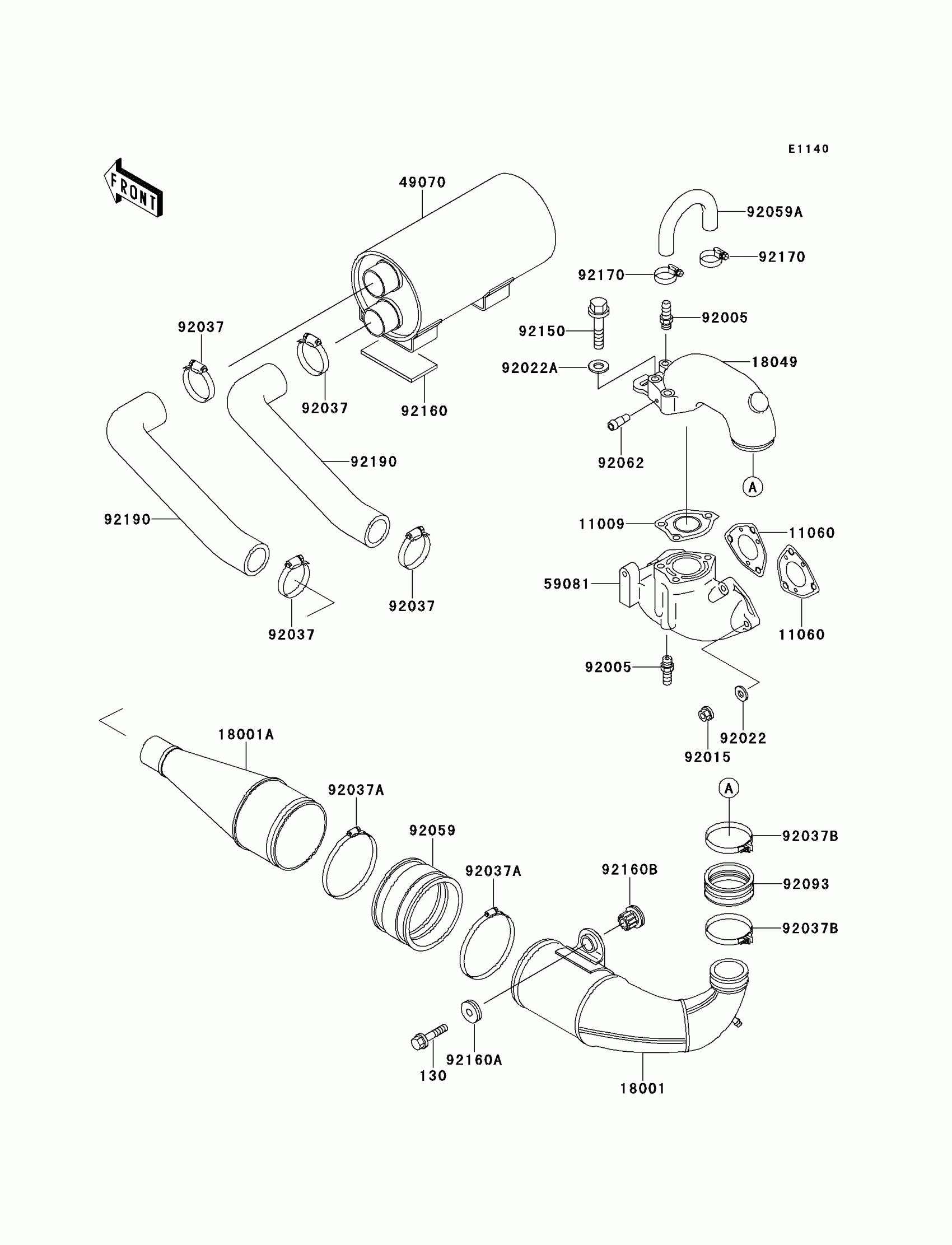

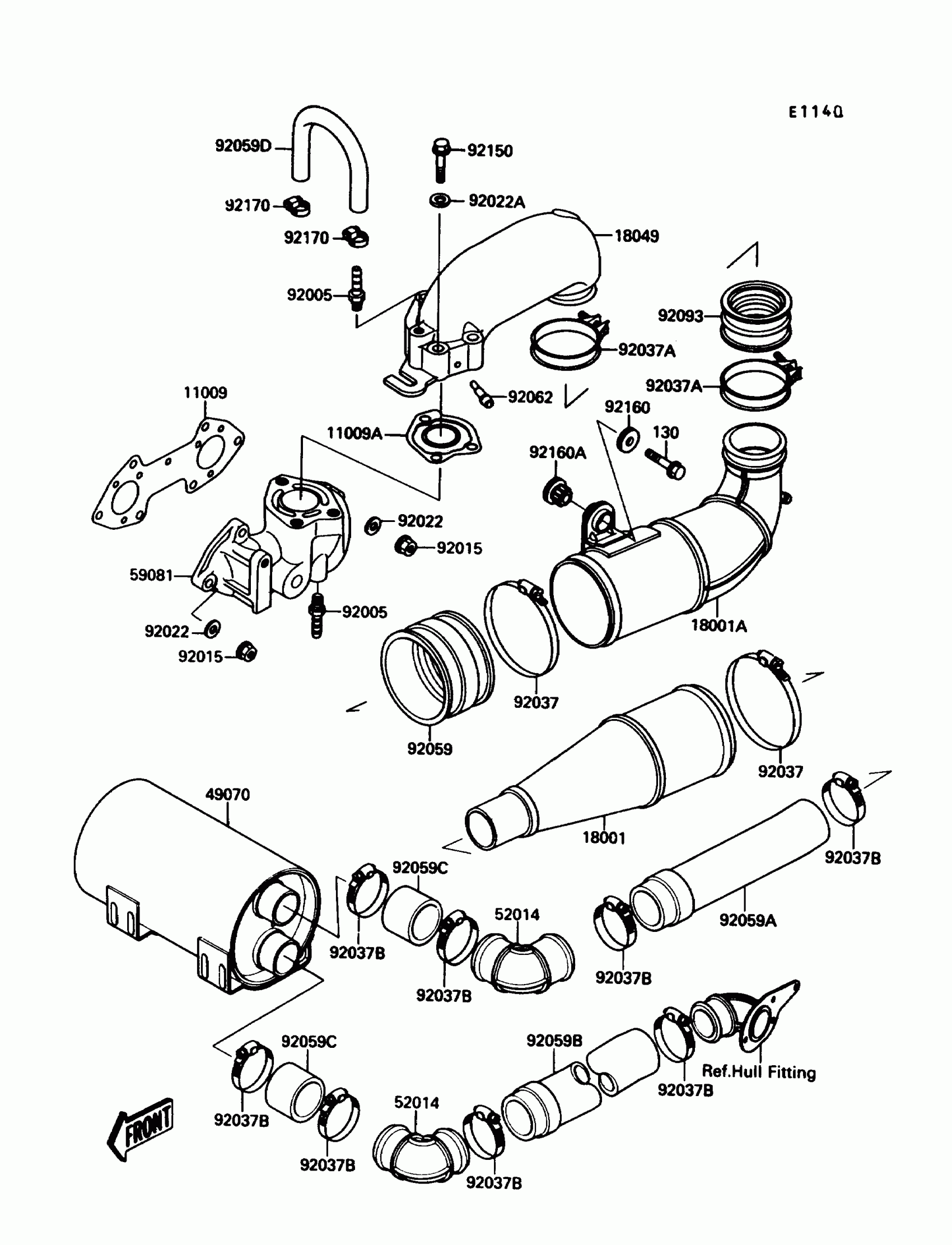

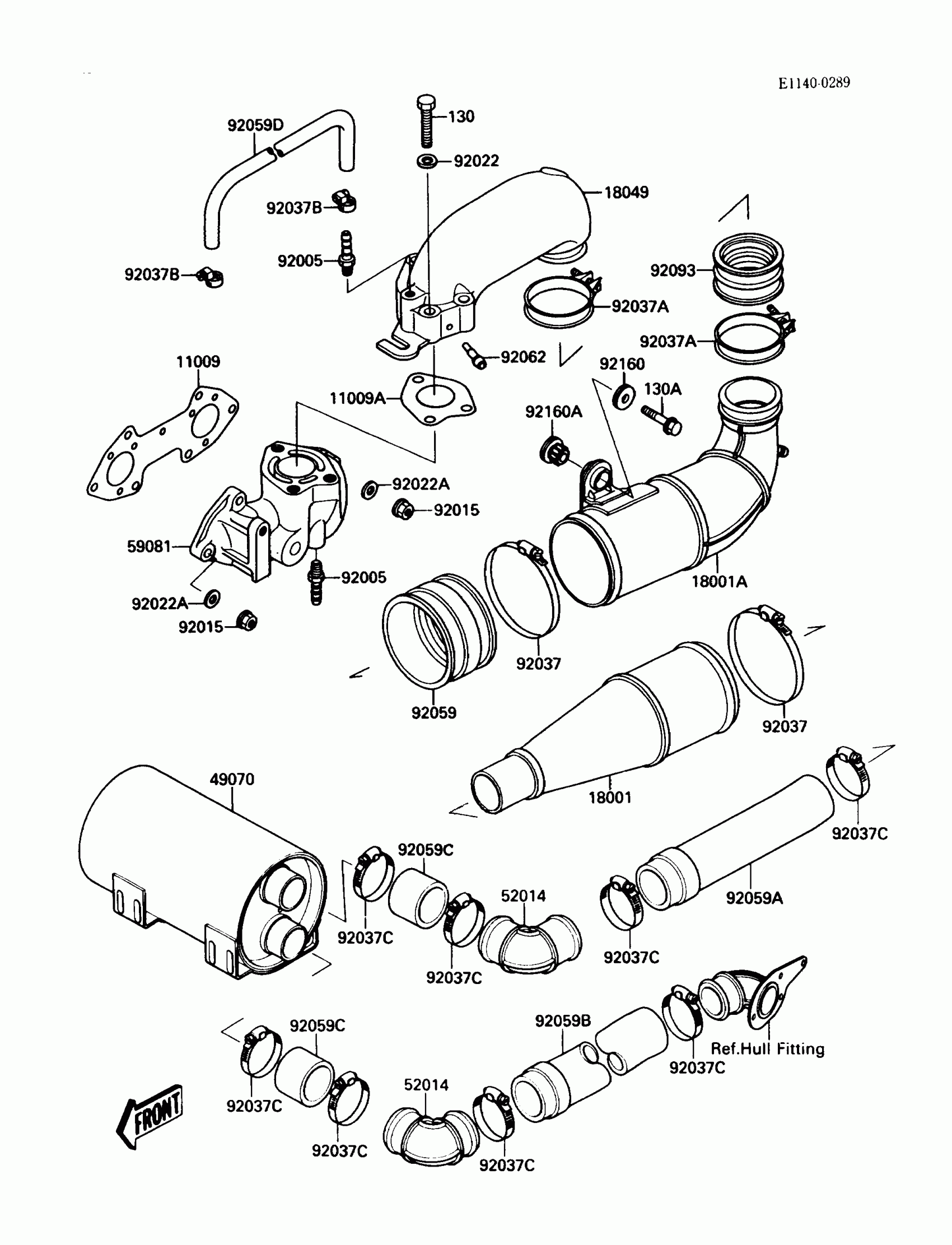

Kawasaki X2 Muffler(s) Diagram
#
Description
Price
130
BOLT-FLANGED
130Z0845
$3.71
11009
GASKET,EXHAUST MANIFOLD
11009-3722
Unavailable
11009A
GASKET,EXHAUST PIPE
11009-3752
$26.93
18001
MUFFLER,BODY
18001-3716
$157.38
18001A
MUFFLER
18001-3720
$413.60
18049
PIPE-EXHAUST
18049-3713
$313.50
49070
MUFFLER-COMP
49070-3711
$119.60
52014
ELBOW
52014-3702
Unavailable
59081
MANIFOLD-EXHAUST
59081-3705
Unavailable
92005
FITTING,HOSE
92005-3001
$10.88
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92037
CLAMP,MAX120.7MM
92037-3733
$13.94
92037A
CLAMP,68MM
92037-3740
$14.63
92037B
CLAMP
92037-509
$5.58
92059
TUBE,MUFFLER CONNECTING
92059-3767
$54.26
92059A
TUBE
92059-3805
$63.76
92059B
TUBE
92059-3806
Unavailable
92059C
TUBE
92059-3807
Unavailable
92059D
TUBE
92059-3816
Unavailable
92062
NOZZLE
92062-3705
$8.44
92093
SEAL
92093-3705
Unavailable
92150
BOLT,10X50
92150-3723
$13.08
92160
DAMPER,MUFFLER
92160-3701
$9.83
92160A
DAMPER,MUFFLER MOUNT
92160-3702
$9.83
92170
CLAMP
92170-3718
$13.67
